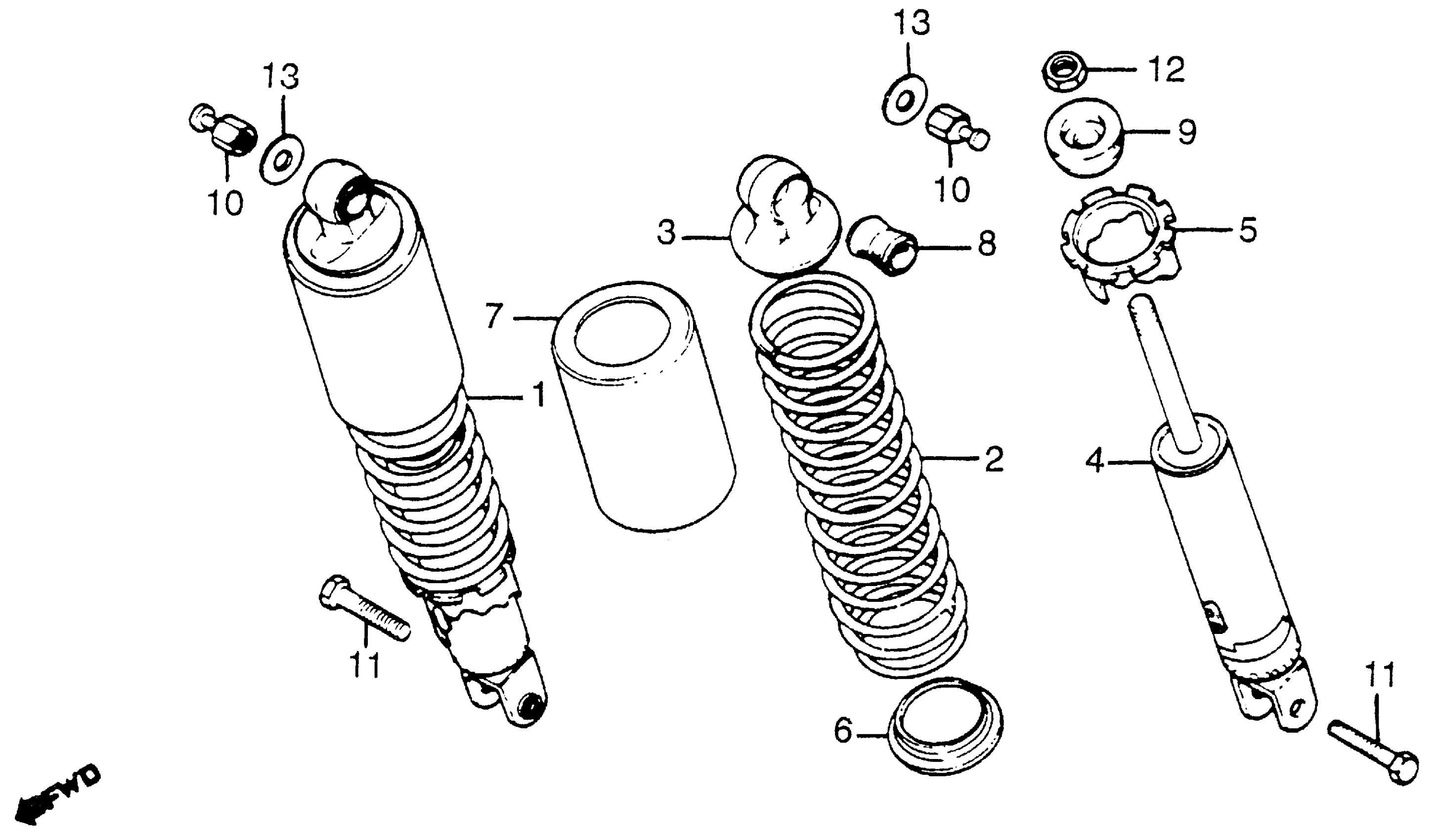

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR. (SHOWA) (NOT AVAILABLE)

52400-460-841

Unavailable

SPRING, RR. SHOCK ABSORBER (SHOWA) (NOT AVAILABLE)

52401-460-841

Unavailable

JOINT (UPPER) (NOT AVAILABLE)

52403-425-003

Unavailable

DAMPER, RR. (SHOWA) (NOT AVAILABLE)

52410-460-841

Unavailable

ADJUSTER, SPRING (NOT AVAILABLE)

52422-404-003

$18.64

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE)

52458-329-000

Unavailable

CASE, RR. SHOCK ABSORBER (UPPER) (NOT AVAILABLE)

52460-MA5-671

Unavailable

RUBBER, JOINT

52484-292-000

$5.87

RUBBER, STOPPER

52517-404-003

$5.70

NUT, RR. SHOCK (UPPER) (NOT AVAILABLE)

90309-460-840

Unavailable

BOLT, HEX. (10X32) This part replaces 93000-10032-0A.

93101-10032-0A

Unavailable

NUT, HEX. (10MM)

94002-10000-0S

$4.06

WASHER, PLAIN (10MM)

94101-10200

$1.49
