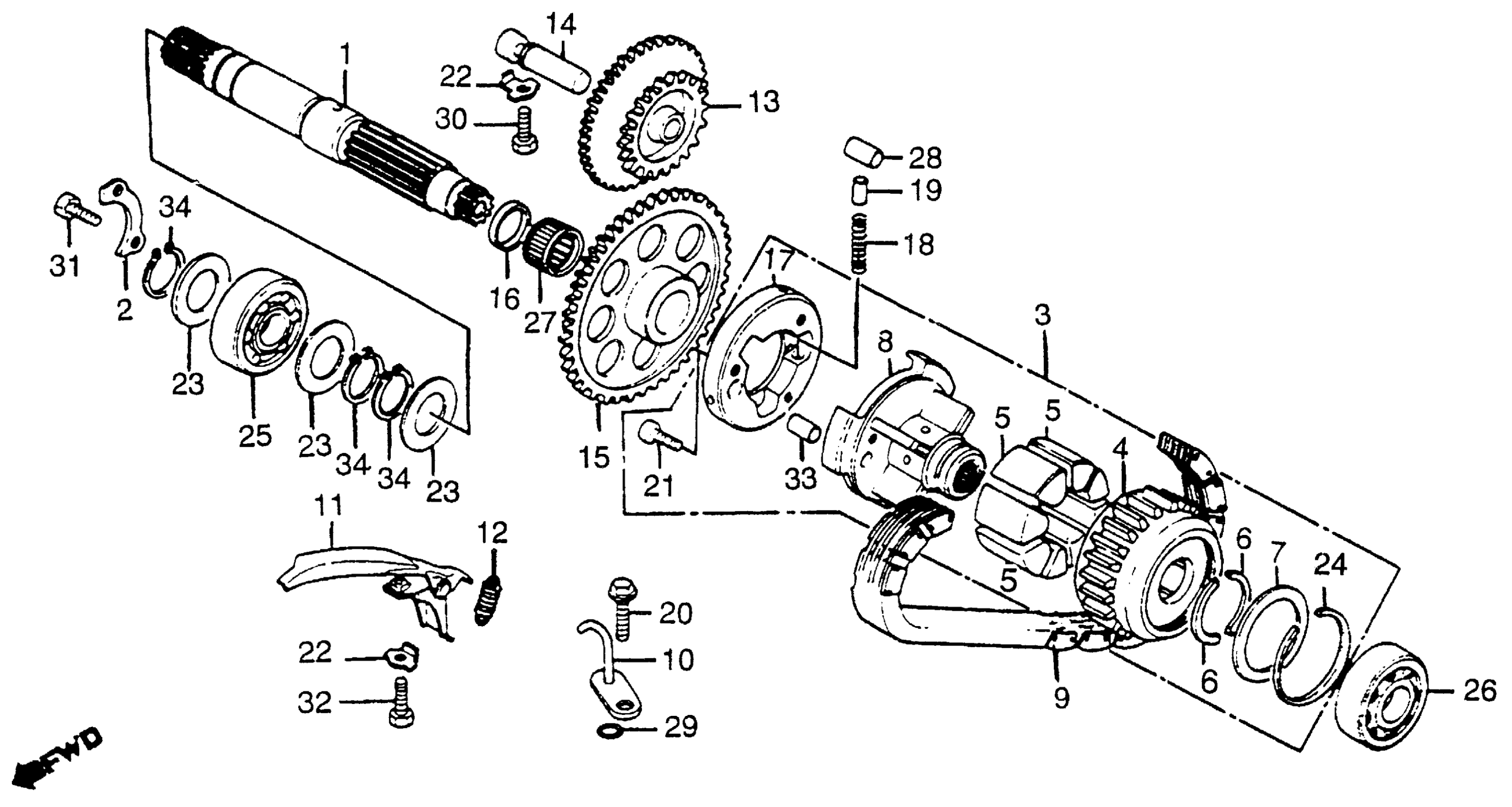

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 PRIMARY SHAFT Diagram

#

Description
Price

1

SHAFT, PRIMARY (NOT AVAILABLE)

23101-426-000

Unavailable

2

PLATE, BEARING SETTING (NOT AVAILABLE)

23102-323-000

Unavailable

3

SPROCKET ASSY., PRIMARY DRIVEN (NOT AVAILABLE)

23110-426-000

Unavailable

4

SPROCKET, PRIMARY DRIVEN (NOT AVAILABLE)

23111-426-000

Unavailable

5

RUBBER, DAMPER

23114-426-300

Unavailable

6

COTTER (30MM) (NOT AVAILABLE)

23115-426-000

Unavailable

7

COLLAR (40MM) (NOT AVAILABLE)

23116-426-000

Unavailable

8

HUB, PRIMARY DRIVEN SPROCKET (NOT AVAILABLE)

23121-426-000

Unavailable

9

CHAIN, PRIMARY DRIVE (50L) (TSUBAKIMOTO)

23131-426-003

Unavailable

10

NOZZLE, PRIMARY CHAIN

23134-426-000

Unavailable

11

TENSIONER, PRIMARY CHAIN (NOT AVAILABLE)

23150-426-010

Unavailable

12

SPRING, PRIMARY CHAIN TENSIONER (NOT AVAILABLE)

23160-426-000

Unavailable

13

GEAR, STARTER REDUCTION (23T)

28101-426-000

Unavailable

14

SHAFT, STARTER REDUCTION GEAR (NOT AVAILABLE)

28106-323-000

Unavailable

15

GEAR, STARTING CLUTCH (57T) (NOT AVAILABLE)

28111-426-000

Unavailable

16

SPACER (25MM) (NOT AVAILABLE)

28112-323-000

Unavailable

17

CLUTCH, STARTER (OUTER)

28120-426-000

Unavailable

18

SPRING, STARTER CLUTCH ROLLER

28125-426-000

$2.61

19

CAP, STARTER CLUTCH ROLLER SPRING

28126-323-000

$5.05

20

BOLT, FLANGE (6X16)

90061-161-000

$3.05

21

BOLT, SOCKET (6MM)

90085-413-781

$4.06

22

WASHER, LOCK (6MM)

90439-PH8-000

$4.72

22

WASHER, LOCK (6MM) This part replaces 90439-634-000.

90439-PH8-000

$4.72

22

WASHER, LOCK (6MM) This part replaces 90439-634-010.

90439-PH8-000

$4.72

23

WASHER, THRUST (22.5MM) (NOT AVAILABLE)

90453-426-000

Unavailable

24

CIRCLIP (INNER) (52MM) (NOT AVAILABLE)

90605-426-000

Unavailable

25

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

25

BEARING, RADIAL BALL (63/22) This part replaces 91001-116-008.

91002-KY4-901

$24.38

25

BEARING, RADIAL BALL (63/22) This part replaces 91001-436-003.

91002-KY4-901

$24.38

25

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

26

BEARING, BALL (62/22) (NACHI) This part replaces 91002-PL0-008.

91002-PL0-018

$31.46

26

BEARING, BALL (62/22) (NACHI)

91002-PL0-018

$31.46

26

BEARING, BALL (62/22) (NACHI) This part replaces 91005-634-004.

91002-PL0-018

$31.46

26

BEARING, BALL (62/22) (NACHI) This part replaces 91005-634-008.

91002-PL0-018

$31.46

26

BEARING, BALL (62/22) (NACHI) This part replaces 91005-657-003.

91002-PL0-018

$31.46

26

BEARING, BALL (62/22) (NACHI) This part replaces 91005-657-004.

91002-PL0-018

$31.46

26

BEARING, BALL (62/22) (NACHI) This part replaces 91005-657-008.

91002-PL0-018

$31.46

27

BEARING, NEEDLE (25X29X17) (KOYO) (NOT AVAILABLE)

91007-426-004

Unavailable

27

BEARING, NEEDLE (25X29X17) (KOYO) (NOT AVAILABLE) This part replaces 91007-426-008.

91007-426-004

Unavailable

28

ROLLER (4X13)

91101-259-000

Unavailable

29

O-RING (7X1.7)

91312-107-000

$3.18

30

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

30

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92200-06016.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

32

BOLT, HEX. (6X20) (NOT AVAILABLE)

92020-06020

Unavailable

32

BOLT, HEX. (6X20) (NOT AVAILABLE) This part replaces 92200-06020.

92020-06020

Unavailable

33

PIN C, DOWEL (8X14)

94303-08140

$2.14

34

CIRCLIP (OUTER) (22MM)

94510-22000

$1.49
