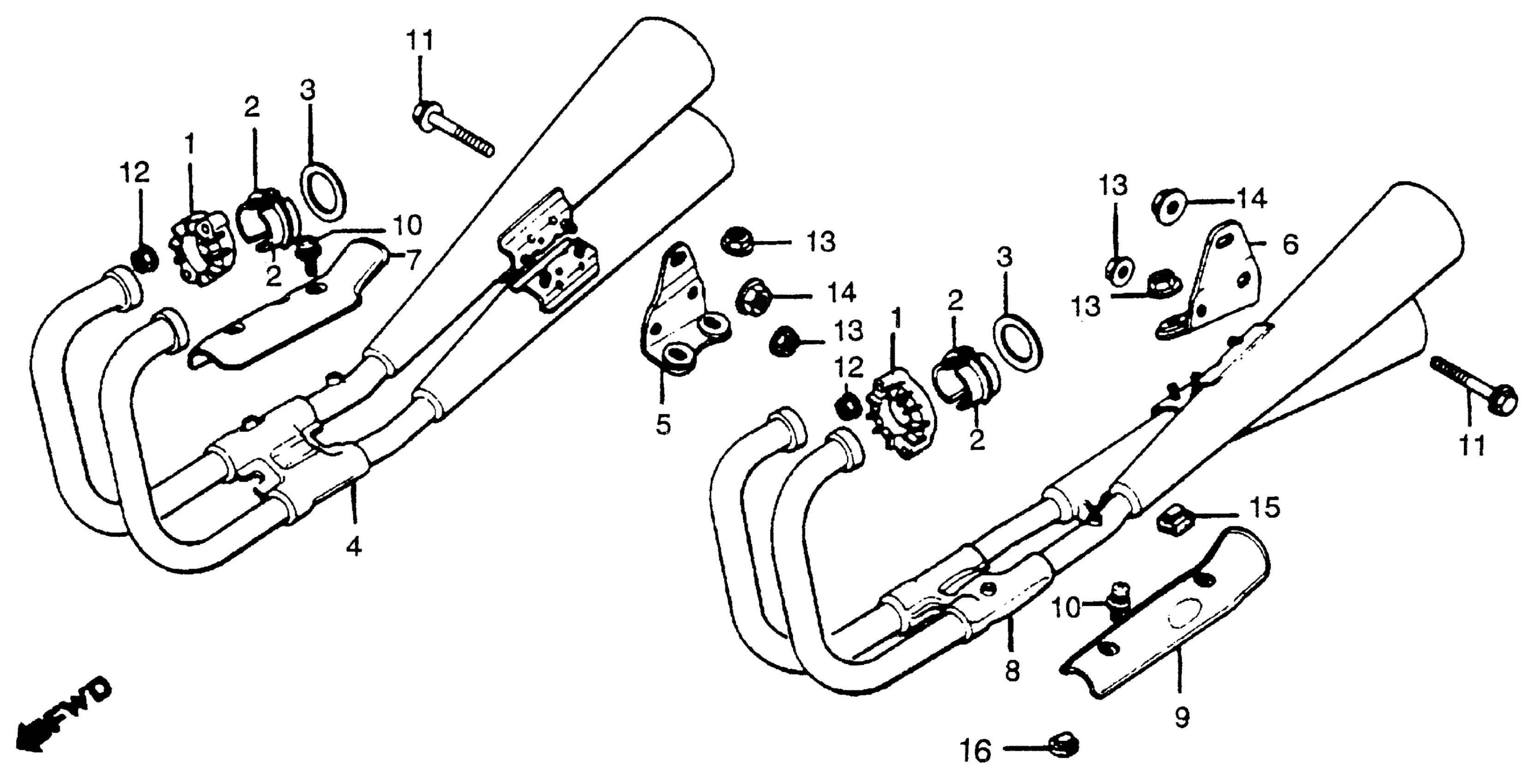

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 MUFFLER Diagram

JOINT, EX. PIPE (NOT AVAILABLE)

18231-426-010

Unavailable

COLLAR, EX. PIPE JOINT

18233-426-000

Unavailable

GASKET, EX. PIPE

18291-MN4-920

$5.31

GASKET, EX. PIPE This part replaces 18291-236-000.

18291-MN4-920

$5.31

MUFFLER, R. EX. (NOT AVAILABLE) This part replaces 18300-460-840.

18300-460-847

Unavailable

MUFFLER, R. EX. (NOT AVAILABLE)

18300-460-847

Unavailable

BRACKET, R. MUFFLER

18312-460-840

Unavailable

BRACKET, L. MUFFLER (NOT AVAILABLE) This part replaces 18313-460-840.

18313-460-000

Unavailable

PROTECTOR, R. MUFFLER JOINT (NOT AVAILABLE)

18375-460-840

Unavailable

MUFFLER, L. EX. (NOT AVAILABLE) This part replaces 18400-460-840.

18400-460-847

Unavailable

MUFFLER, L. EX. (NOT AVAILABLE)

18400-460-847

Unavailable

PROTECTOR, L. MUFFLER JOINT (NOT AVAILABLE)

18425-460-840

Unavailable

SCREW-WASHER (6X10) This part replaces 90136-425-871.

93893-06010-00

$1.49

SCREW-WASHER (6X10)

93893-06010-00

$1.49

BOLT, SPECIAL FLANGE (10X40) (NOT AVAILABLE)

90182-438-000

Unavailable

NUT, CAP (6MM)

90304-438-000

$7.14

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

RUBBER A, STAND STOPPER

95011-61000

$1.49

RUBBER C, STAND STOPPER

95011-63000

$3.90
