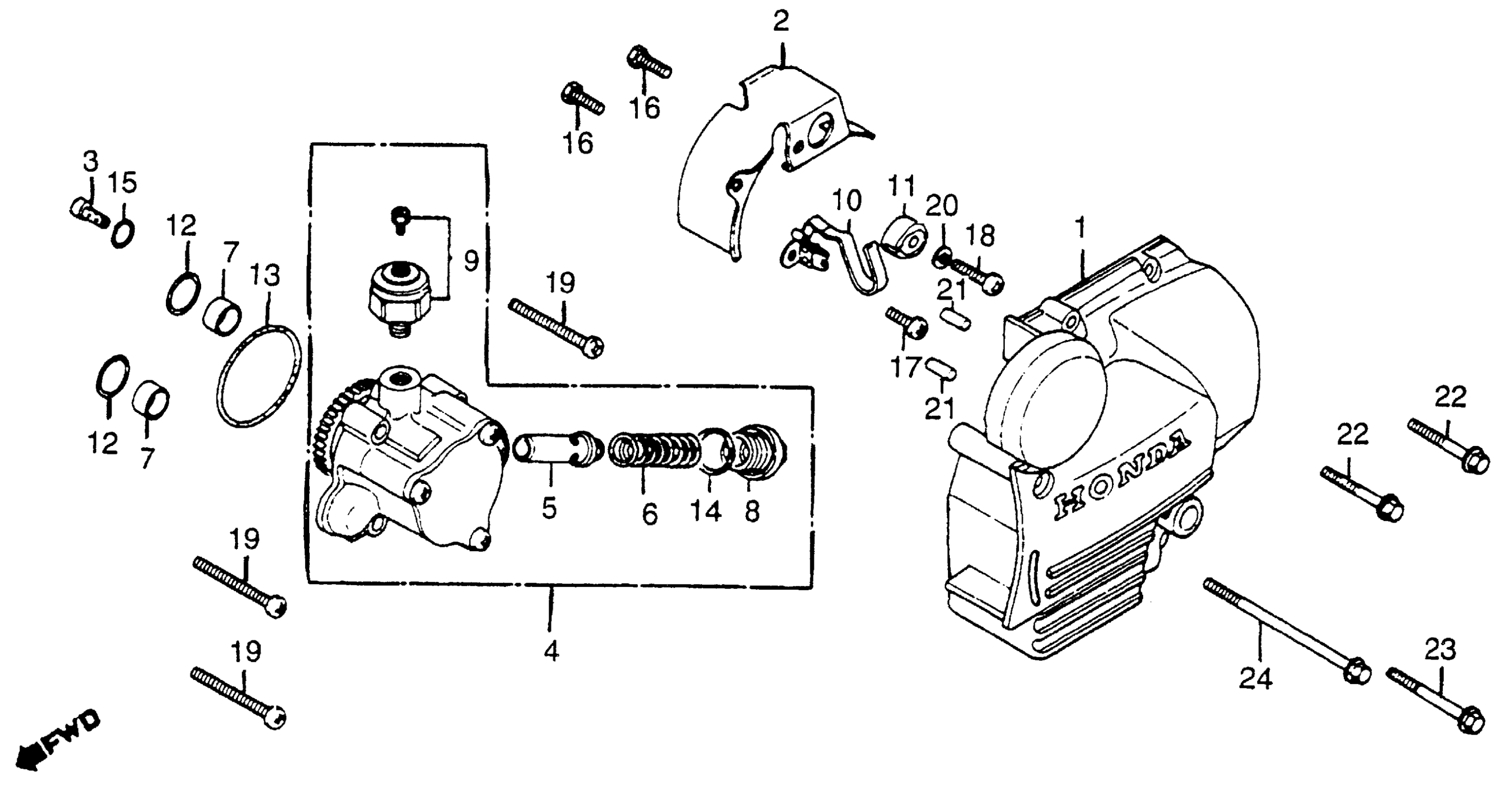

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 LEFT CRANKCASE COVER + OIL PUMP Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-460-780

Unavailable

2

PROTECTOR, CASE (NOT AVAILABLE)

11353-460-000

Unavailable

3

VALVE, OIL CONTROL ORIFICE (NOT AVAILABLE)

12245-426-000

Unavailable

4

PUMP ASSY., OIL (NOT AVAILABLE)

15100-426-013

Unavailable

5

VALVE, RELIEF (NOT AVAILABLE)

15140-300-010

Unavailable

6

SPRING, RELIEF VALVE (NOT AVAILABLE)

15145-300-000

Unavailable

7

COLLAR, O-RING (NOT AVAILABLE)

15155-323-000

Unavailable

8

CAP, OIL PASSAGE (NOT AVAILABLE)

15331-323-003

Unavailable

9

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-333-014.

37240-P13-013

$39.96

9

SWITCH ASSY., OIL PRESSURE (DENSO)

37240-P13-013

$39.96

10

SWITCH, NEUTRAL (NOT AVAILABLE)

35610-426-003

Unavailable

11

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)

35753-323-000

Unavailable

12

O-RING (13.8X2.5)

91303-MG7-003

$2.90

12

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$2.90

13

O-RING (46X2)

91305-426-003

$6.69

14

O-RING (19.4X2.8) (NOT AVAILABLE)

91306-425-003

Unavailable

15

O-RING (7X1.7) This part replaces 91303-KE7-003.

91312-107-000

$2.90

15

O-RING (7X1.7)

91312-107-000

$2.90

15

O-RING (7X1.7) This part replaces 91312-426-000.

91312-107-000

$2.90

16

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.29

16

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.29

16

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

17

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$0.90

17

SCREW, PAN (6X12)

93500-06012-0A

$0.90

17

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$0.90

18

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$0.93

18

SCREW, PAN (6X20)

93500-06020-0A

$0.93

19

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.00

19

SCREW, PAN (6X35)

93500-06035-0A

$1.00

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

20

WASHER, PLAIN (6MM)

94101-06800

Unavailable

21

PIN B, DOWEL (6X10)

94302-06100

$2.04

22

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

Unavailable

22

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

23

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.78

23

BOLT, FLANGE (6X45)

96001-06045-00

$1.78

24

BOLT, FLANGE (6X80) This part replaces 96000-06080-00.

96001-06080-07

Unavailable

24

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

Unavailable

24

BOLT, FLANGE (6X80)

96001-06080-00

$2.01

24

BOLT, FLANGE (6X80)

96001-06080-07

Unavailable
