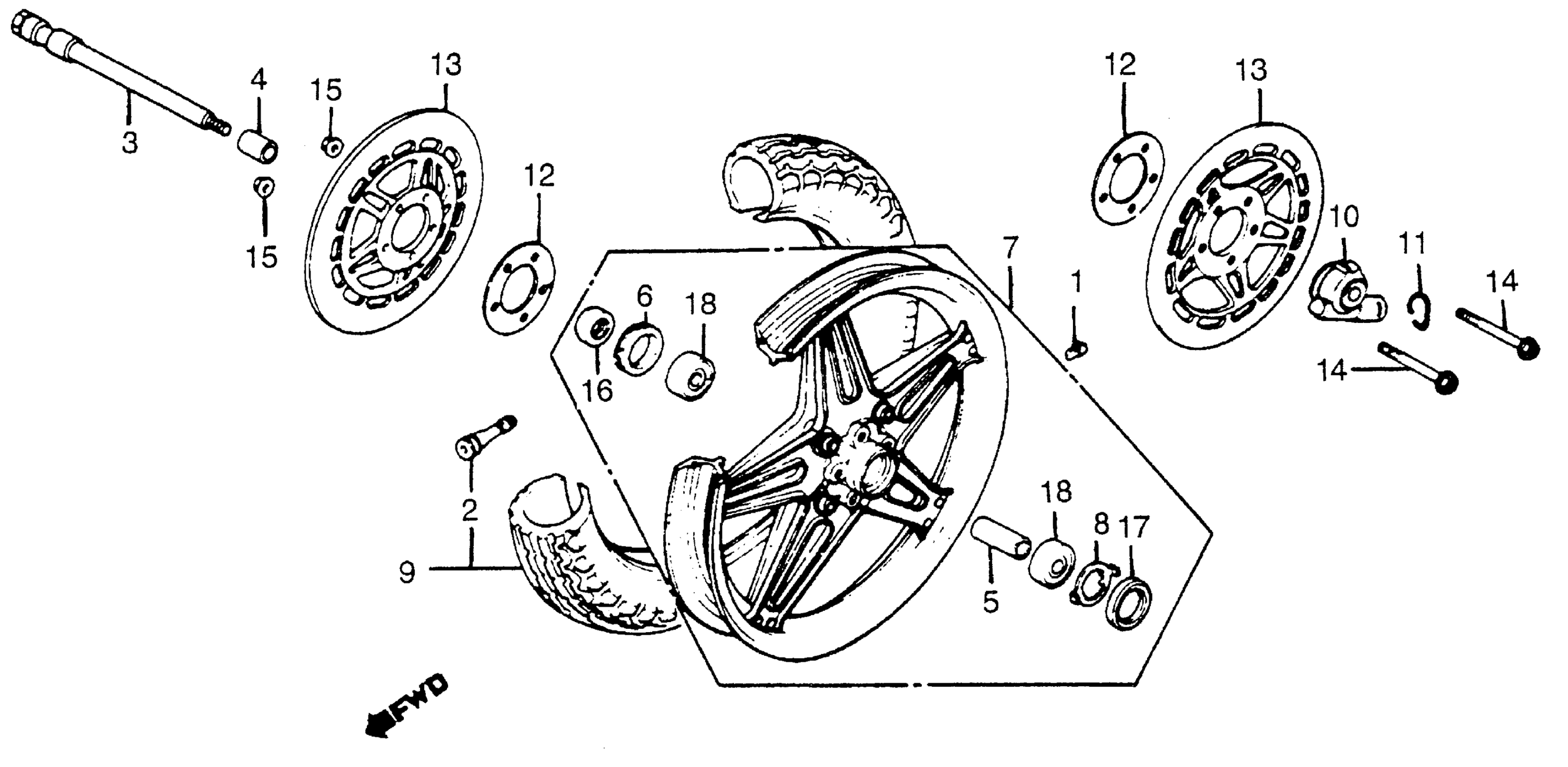

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 FRONT WHEEL Diagram

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

VALVE, RIM (BS)

42753-425-003

$11.00

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

AXLE, FR. WHEEL

44301-461-770

Unavailable

COLLAR, FR. WHEEL SIDE

44311-460-840

Unavailable

COLLAR, FR. WHEEL DISTANCE

44620-410-000

Unavailable

RETAINER, FR. WHEEL BEARING

44643-300-000

$15.70

WHEEL, FR. (NOT AVAILABLE)

44650-461-771

Unavailable

RETAINER, GEAR BOX

44680-410-000

$5.80

TIRE ASSY., FR. (3.50S19) (4PR) (BS) (NOT AVAILABLE)

44710-MA1-671

Unavailable

TIRE ASSY., FR. (3.50S19) (4PR) (BS) (NOT AVAILABLE) This part replaces 44710-460-671.

44710-MA1-671

Unavailable

TIRE ASSY., FR. (3.50S19) (4PR) (BS) (NOT AVAILABLE) This part replaces 44710-460-841.

44710-MA1-671

Unavailable

TIRE ASSY., FR. (3.50S19) (DUNLOP) (NOT AVAILABLE)

44710-460-842

Unavailable

BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE)

44800-460-841

Unavailable

CLIP, SPEEDOMETER CABLE (NOT AVAILABLE)

44810-460-841

Unavailable

SHIM, DAMPING (NOT AVAILABLE)

45128-445-630

Unavailable

DISK, FR. BRAKE (NOT AVAILABLE) This part replaces 45251-413-940.

45251-413-941

Unavailable

DISK, FR. BRAKE (NOT AVAILABLE)

45251-413-941

Unavailable

BOLT, FLANGE (8X104) This part replaces 90105-460-840.

90113-GY8-900

Unavailable

BOLT, FLANGE (8X104)

90113-GY8-900

Unavailable

NUT, FLANGE (8MM)

90308-460-841

$3.43

NUT, FLANGE (8MM)

90309-MR1-770

$3.12

DUST SEAL (22X36X8)

91252-300-003

$10.73

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
