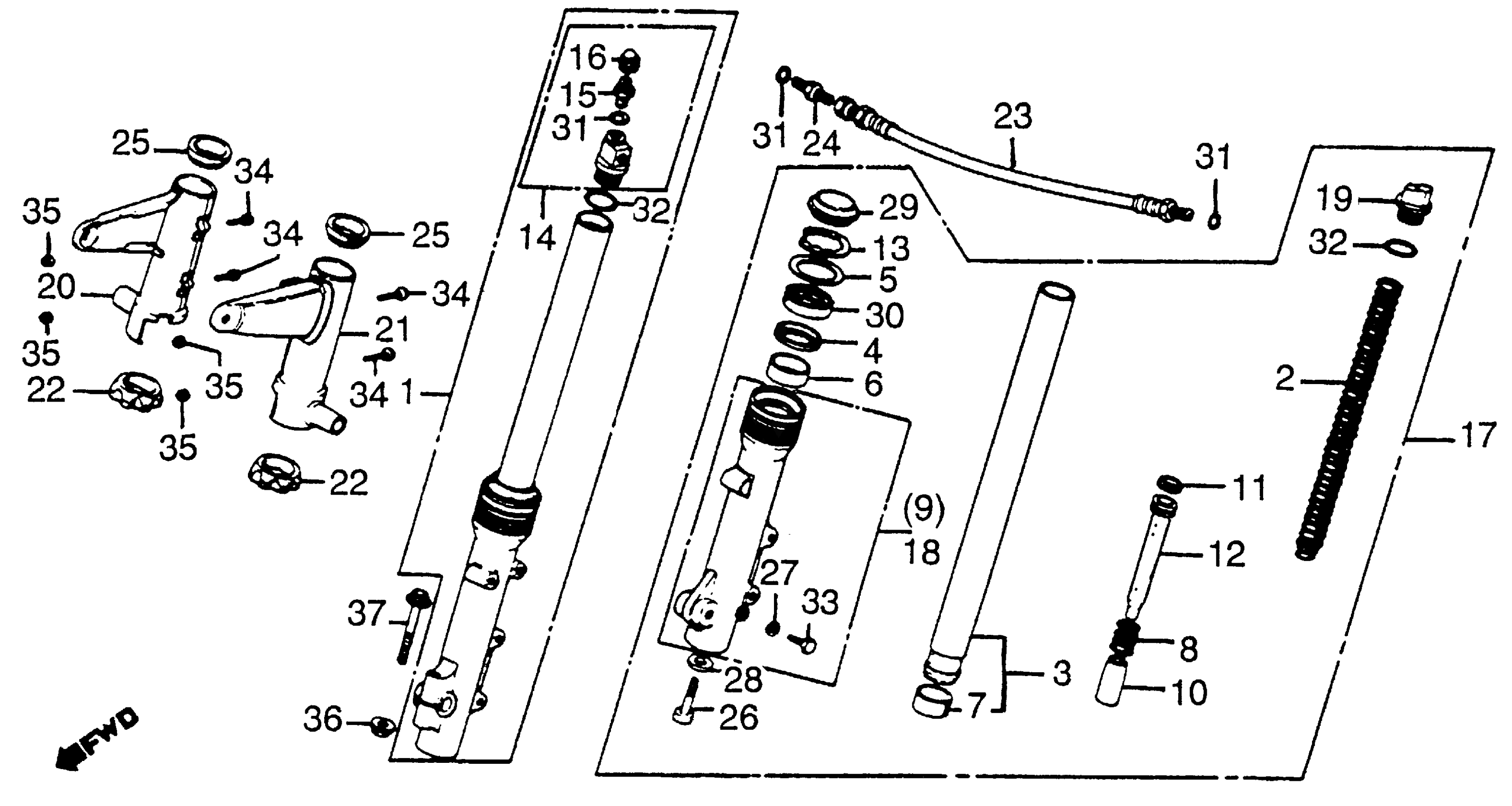

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-460-841

Unavailable

2

SPRING, FR. FORK

51401-460-841

Unavailable

3

PIPE, FR. FORK (NOT AVAILABLE)

51410-460-841

Unavailable

4

RING, BACK-UP

51412-461-003

$7.04

5

PLATE, BACK-UP

51413-461-003

Unavailable

6

BUSH, GUIDE

51414-MN4-003

$13.34

6

BUSH, GUIDE This part replaces 51414-461-003.

51414-MN4-003

$13.34

7

BUSH, SLIDER

51415-461-003

$20.08

8

SPRING, REBOUND (NOT AVAILABLE)

51416-461-003

$5.80

9

CASE, R. (LOWER) (NOT AVAILABLE)

51421-461-771

Unavailable

10

PIECE, OIL LOCK (NOT AVAILABLE) This part replaces 51432-460-841.

51432-461-771

Unavailable

10

PIECE, OIL LOCK (NOT AVAILABLE)

51432-461-771

Unavailable

11

RING, PISTON

51437-461-003

$9.59

12

PIPE, SEAT

51440-460-841

Unavailable

13

CIRCLIP (INNER) (50MM)

51447-461-003

$4.53

14

BOLT ASSY., FR. FORK (SHOWA)

51450-460-841

Unavailable

15

VALVE, AIR (SHOWA)

51456-469-013

$33.69

16

CAP ASSY., AIR VALVE

51457-469-000

Unavailable

17

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-460-841

Unavailable

18

CASE, L. (LOWER) (NOT AVAILABLE)

51521-461-771

Unavailable

19

BOLT, L. FR. FORK (NOT AVAILABLE)

51555-460-841

Unavailable

20

COVER, R. FR. FORK

51602-460-840

Unavailable

21

COVER, L. FR. FORK (NOT AVAILABLE)

51606-460-840

Unavailable

22

RUBBER B, FR. FORK COVER (NOT AVAILABLE)

51622-460-840

Unavailable

23

HOSE, FR. FORK JOINT (NOT AVAILABLE)

53137-460-841

Unavailable

24

CONNECTOR This part replaces 53139-460-840.

53139-463-000

Unavailable

25

RUBBER, HEADLIGHT STAY (NOT AVAILABLE)

61315-460-840

$5.08

26

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

26

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

27

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

28

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

29

DUST SEAL

91254-KAZ-003

$17.00

29

DUST SEAL This part replaces 91254-461-003.

91254-KAZ-003

$17.00

29

DUST SEAL This part replaces 91254-461-004.

91254-KAZ-003

$17.00

30

OIL SEAL (37X50X11)

91255-461-003

$25.90

30

OIL SEAL (37X50X11) This part replaces 91255-461-004.

91255-461-003

$25.90

31

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

31

O-RING (5.8X1.9)

91305-323-000

$2.92

31

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

32

O-RING (29X2.4)

91344-PC9-004

$3.51

32

O-RING (29X2.4) (NOK) This part replaces 91356-371-000.

91344-PC9-004

$3.51

33

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

33

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

33

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

34

SCREW, PAN (4X20)

93500-04020-0B

Unavailable

35

NUT, HEX. (4MM)

94001-04020-0S

Unavailable

36

NUT, FLANGE (8MM)

94050-08000

$1.49

37

BOLT, FLANGE (8X50) This part replaces 95700-08050-00.

95701-08050-00

$2.28

37

BOLT, FLANGE (8X50)

95701-08050-00

$2.28
