- CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135
FRONT BRAKE CALIPER

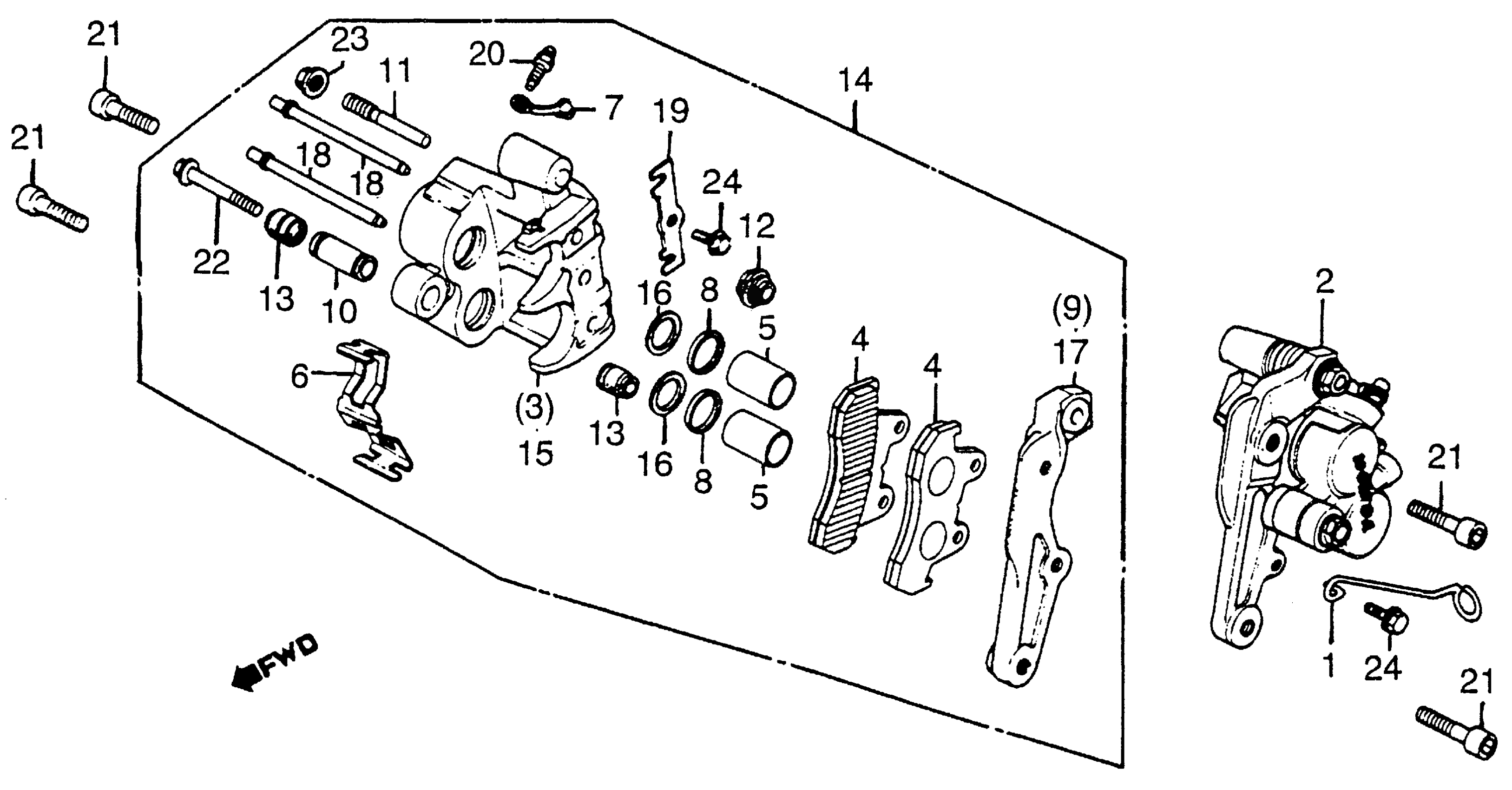

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 FRONT BRAKE CALIPER Diagram
#
Description
Price
1
CLAMP, SPEEDOMETER CABLE
44832-460-840
Unavailable
2
CALIPER ASSY., L. FR. (JB) (TOKIKO) (NOT AVAILABLE)
45100-460-841
Unavailable
2
CALIPER ASSY., L. FR. (JB) (TOKIKO) (NOT AVAILABLE) This part replaces 45100-460-842.
45100-460-841
Unavailable
3
BODY, L. CALIPER (TOKIKO) (NOT AVAILABLE)
45101-460-841
Unavailable
4
PAD (TOKIKO) This part replaces 45105-MA5-771.
45105-MC9-305
Unavailable
4
PAD (TOKIKO) This part replaces 45105-MA5-772.
45105-MC9-305
Unavailable
4
PAD (TOKIKO)
45105-MC9-305
Unavailable
5
PISTON (NOT AVAILABLE)
45107-460-841
Unavailable
6
SPRING, PAD (NOT AVAILABLE)
45108-MA5-771
Unavailable
7
CAP, BLEEDER VALVE
45108-425-003
Unavailable
9
BRACKET, L. FR.
45110-MA5-771
Unavailable
10
SLEEVE (NOT AVAILABLE)
45111-MA5-771
Unavailable
11
PIN, BOLT
45131-MA5-771
Unavailable
12
BOOT, PIN
45133-MA5-771
Unavailable
13
BOOT, BOLT
45134-MA5-771
Unavailable
14
CALIPER ASSY., R. FR. (JB) (TOKIKO) (NOT AVAILABLE)
45200-460-841
Unavailable
14
CALIPER ASSY., R. FR. (JB) (TOKIKO) (NOT AVAILABLE) This part replaces 45200-460-842.
45200-460-841
Unavailable
15
BODY, R. CALIPER (NOT AVAILABLE)
45201-460-841
Unavailable
16
SEAL, PISTON
45209-460-841
Unavailable
17
BRACKET, R.
45210-MA5-771
Unavailable
18
PIN, PAD RETAINING (NOT AVAILABLE)
45215-MA5-771
Unavailable
19
PLATE (NOT AVAILABLE)
45217-MA5-771
Unavailable
20
VALVE, BLEEDER
45224-413-003
Unavailable
21
BOLT, SOCKET (10X40) (NOT AVAILABLE)
90164-460-840
Unavailable
22
BOLT, FLANGE (8X48) (NOT AVAILABLE)
90180-MA5-771
Unavailable
