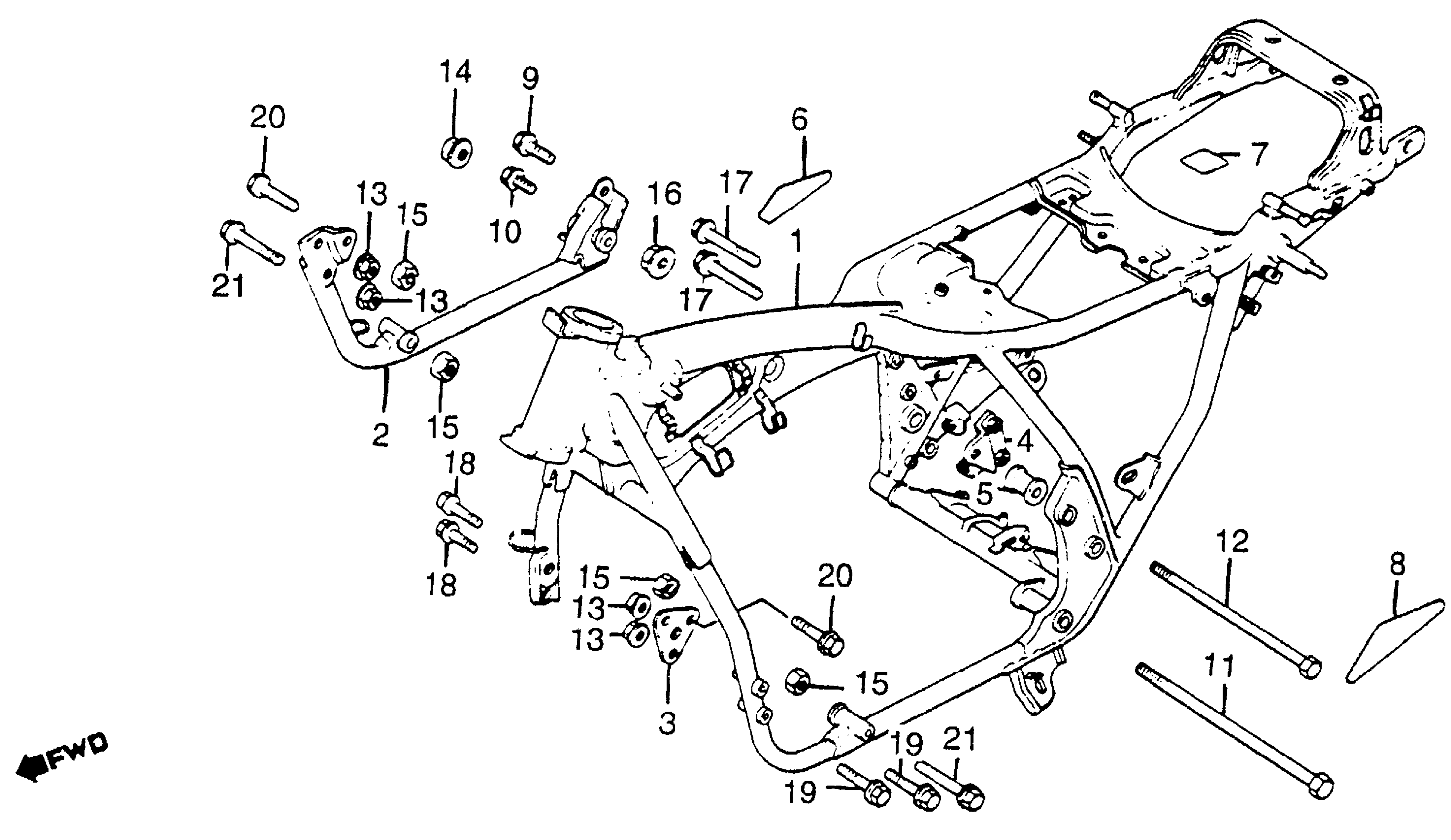

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 FRAME Diagram

FRAME *PB116M* (PACIFIC BLUE METALLIC)

50100-460-840ZA

Unavailable

FRAME *B100MU* (COSMO BLACK METALLIC)

50100-460-840ZB

Unavailable

SUB-FRAME *PB116M* (PACIFIC BLUE METALLIC)

50111-460-840ZA

Unavailable

SUB-FRAME *B100MU* (COSMO BLACK METALLIC)

50111-460-840ZB

Unavailable

BRACKET, FR. ENGINE HANGER *PB116M* (PACIFIC BLUE METALLIC)

50351-460-840ZA

Unavailable

BRACKET, FR. ENGINE HANGER *B100MU* (COSMO BLACK METALLIC) (NOT AVAILABLE)

50351-460-840ZB

Unavailable

BRACKET, RR. ENGINE HANGER (NOT AVAILABLE)

50356-460-000

Unavailable

COLLAR, L. ENGINE SIDE (UPPER) (NOT AVAILABLE)

50359-460-840

Unavailable

MARK, MUFFLER CAUTION (NOT AVAILABLE)

87504-460-840

Unavailable

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-460-730

Unavailable

MARK, DRIVE CHAIN CAUTION (NOT AVAILABLE)

87507-460-840

Unavailable

BOLT, FLANGE (8X28) (NOT AVAILABLE)

90104-460-840

Unavailable

BOLT, FLANGE (8X104) This part replaces 90105-460-840.

90113-GY8-900

Unavailable

BOLT, FLANGE (8X104)

90113-GY8-900

Unavailable

BOLT (12X369.7) (NOT AVAILABLE)

90107-460-840

Unavailable

BOLT, RR. ENGINE (UPPER) (NOT AVAILABLE)

90108-460-840

Unavailable

NUT, FLANGE (8MM)

90208-425-870

Unavailable

NUT, FLANGE CAP (12MM) (NOT AVAILABLE)

90212-438-000

Unavailable

NUT, HEX. (10MM)

94030-10070

Unavailable

NUT, FLANGE (12MM)

94050-12000

$1.49

BOLT-WASHER (8X40) This part replaces 95700-08040-07.

90141-GGZ-J00

$2.43

BOLT-WASHER (8X40) This part replaces 95701-08040-07.

90141-GGZ-J00

$2.43

BOLT, FLANGE (8X35) (NOT AVAILABLE)

95800-08035-07

Unavailable

BOLT, FLANGE (8X55) This part replaces 95800-08055-07.

95801-08055-07

$1.64

BOLT, FLANGE (8X55)

95801-08055-07

$1.64

BOLT, FLANGE (10X50) (NOT AVAILABLE) This part replaces 95800-10050-07.

95801-10050-07

$2.02

BOLT, FLANGE (10X80) (NOT AVAILABLE)

95800-10080-07

Unavailable
