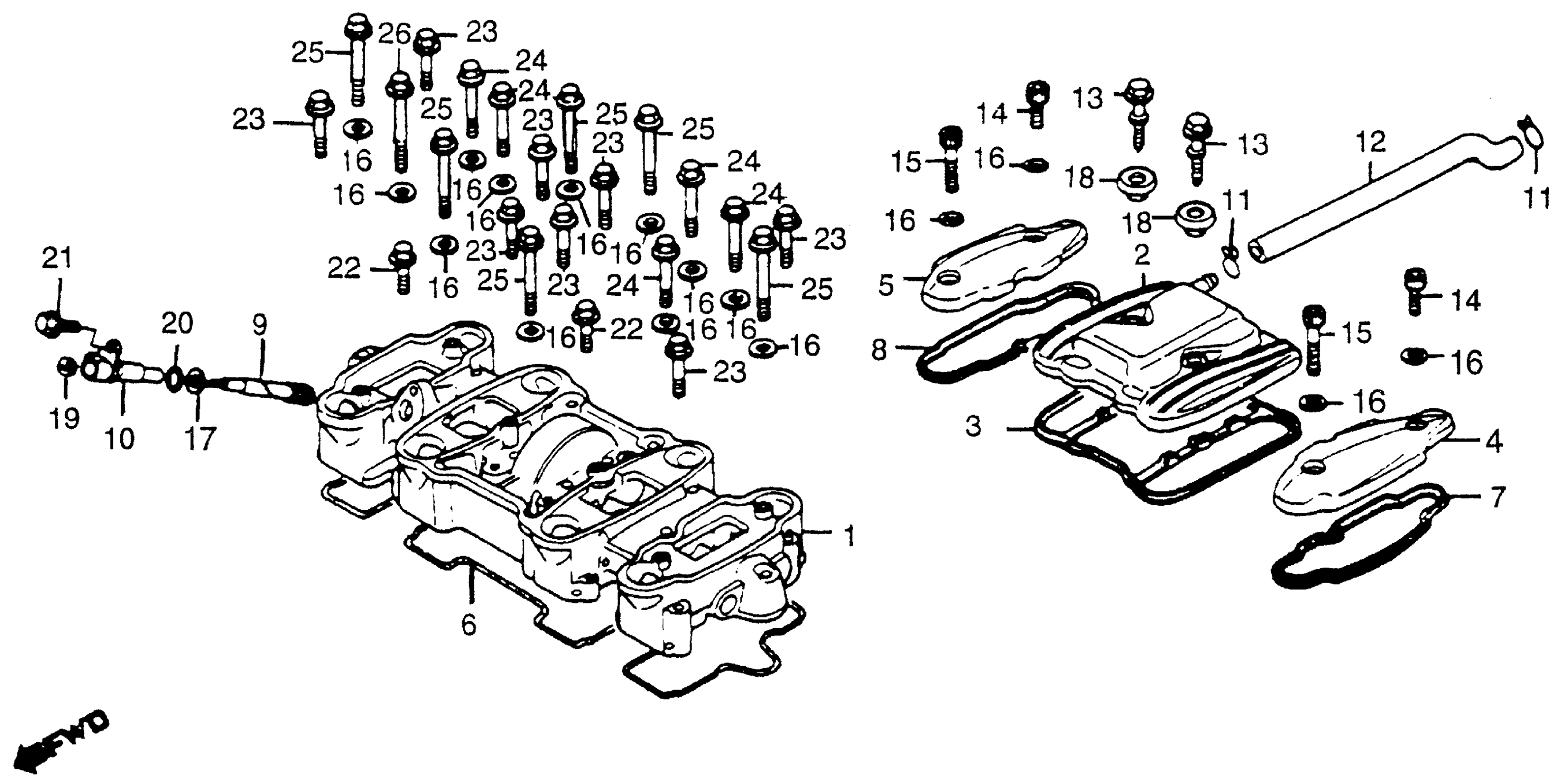

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

12310-460-780

Unavailable

2

COVER, BREATHER (NOT AVAILABLE)

12320-460-780

Unavailable

3

GASKET, BREATHER COVER

12329-426-000

$13.93

4

COVER, L. VALVE ADJ.

12361-460-000

Unavailable

5

COVER, R. VALVE ADJ.

12362-460-000

Unavailable

6

GASKET, CYLINDER COVER

12391-460-770

$20.31

7

GASKET, L. VALVE ADJ. COVER

12395-426-000

Unavailable

8

GASKET, R. VALVE ADJ. COVER

12396-426-000

Unavailable

9

GEAR, TACHOMETER (NOT AVAILABLE)

12431-426-003

Unavailable

10

CAP, TACHOMETER

12451-323-000

Unavailable

11

CLIP, BREATHER TUBE

15772-551-000

$2.05

11

CLIP, BREATHER TUBE (NOT AVAILABLE)

15772-551-680

$6.39

12

TUBE, BREATHER (NOT AVAILABLE)

17270-460-000

Unavailable

13

BOLT, SPECIAL (6X27.5)

90017-425-000

$4.45

14

BOLT, SOCKET (6X20)

90116-460-000

Unavailable

15

BOLT, SOCKET (6X28) (NOT AVAILABLE)

90117-460-000

Unavailable

16

WASHER, THRUST (11MM)

90425-300-000

$2.66

17

WASHER, THRUST (7MM)

90451-292-000

Unavailable

18

RUBBER, SETTING

90541-425-000

$10.70

19

OIL SEAL (4.8X14.5X5) (ARAI)

91256-425-003

$5.13

19

OIL SEAL (4.8X14.5X5) (ARAI) This part replaces 91256-425-005.

91256-425-003

$5.13

20

O-RING (11X2.5) This part replaces 91309-035-000.

91310-426-000

$5.19

20

O-RING (11X2.5)

91310-426-000

$5.19

20

O-RING (11X2.5) This part replaces 91314-MA6-005.

91310-426-000

$5.19

21

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

21

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

22

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

22

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

23

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

23

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

24

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

24

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

25

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

25

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

26

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

26

BOLT, FLANGE (6X50)

96001-06050-00

$2.16
