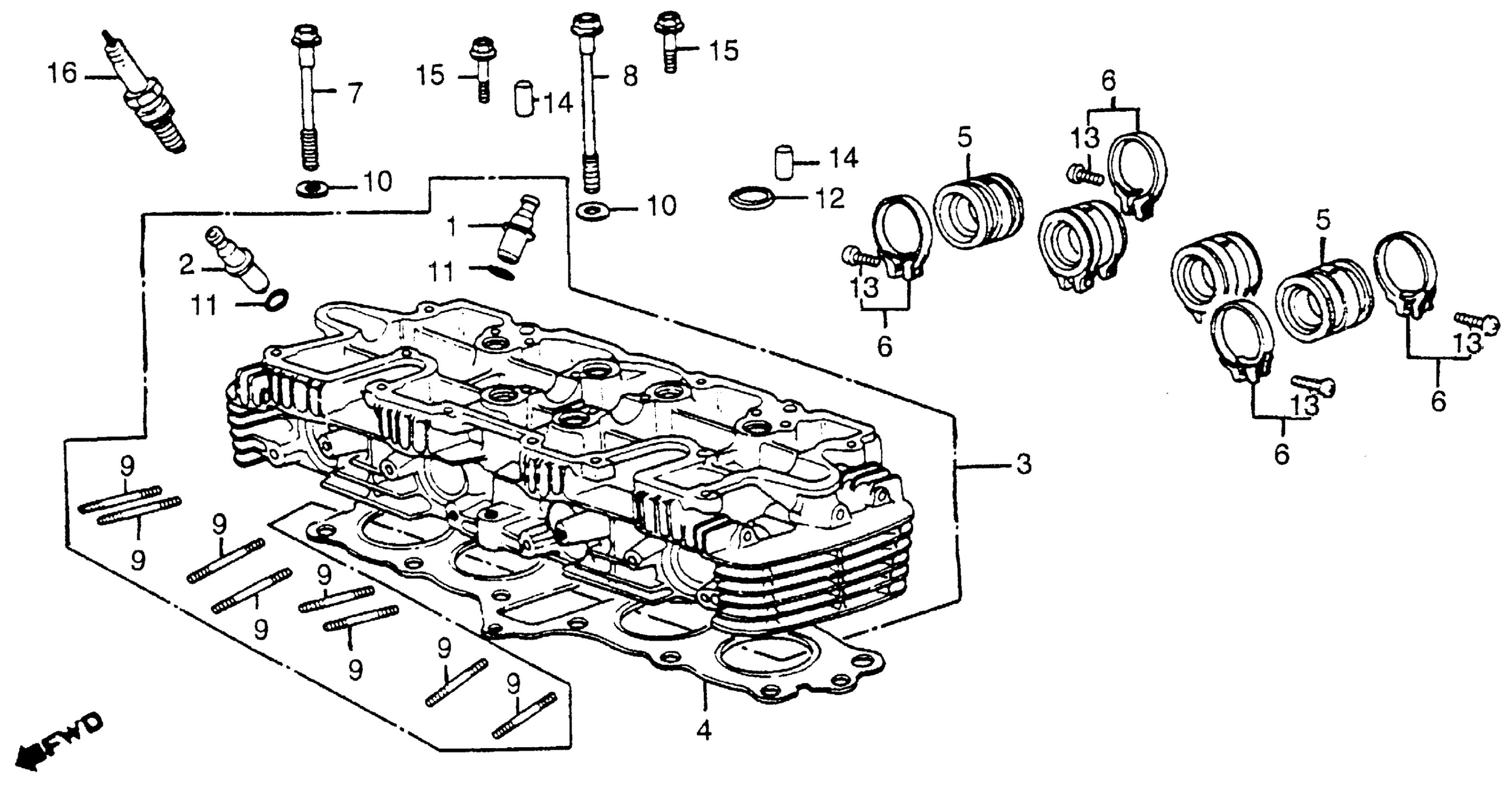

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-426-000.

12204-KW1-405

$11.52

1

GUIDE, VALVE This part replaces 12021-426-010.

12204-KW1-405

$11.52

1

GUIDE, VALVE This part replaces 12021-426-405.

12204-KW1-405

$11.52

2

GUIDE, VALVE This part replaces 12023-460-770.

12204-KW1-405

$11.52

2

GUIDE, VALVE This part replaces 12023-460-771.

12204-KW1-405

$11.52

2

GUIDE, VALVE

12204-KW1-405

$11.52

3

CYLINDER HEAD

12200-460-780

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-426-010.

12251-426-306

Unavailable

4

GASKET, CYLINDER HEAD

12251-426-306

Unavailable

5

INSULATOR, CARBURETOR

16211-460-770

$27.01

6

BAND, INSULATOR

16219-422-000

$12.72

7

BOLT, FLANGE (8X120)

90023-MW3-600

$9.30

7

BOLT, FLANGE (8X120) This part replaces 90033-426-004.

90023-MW3-600

$9.30

8

BOLT, FLANGE (8X145)

90036-426-004

Unavailable

9

BOLT, STUD (6X51)

90044-426-300

Unavailable

10

WASHER (8MM)

90483-028-000

$1.51

11

O-RING (10X1.6)

91301-200-000

$3.01

12

RUBBER, SEALING

91318-300-013

$4.85

13

SCREW, PAN (5X20)

93500-05020-0G

$1.49

14

PIN B, DOWEL (10X16)

94302-10160

$1.69

15

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

15

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

16

SPARK PLUG (DR7ES) (NGK) This part replaces 98069-57716.

98069-57719

$2.44

16

SPARK PLUG (DR7ES) (NGK)

98069-57719

$2.44

16

SPARK PLUG (X22ESR-U) (DENSO)

98069-57726

$2.44

16

SPARK PLUG (DR8ES) (NGK) This part replaces 98069-58716.

98069-58719

$2.50

16

SPARK PLUG (DR8ES) (NGK)

98069-58719

$2.50

16

SPARK PLUG (X27ESR-U) (DENSO)

98069-59726

$2.54
