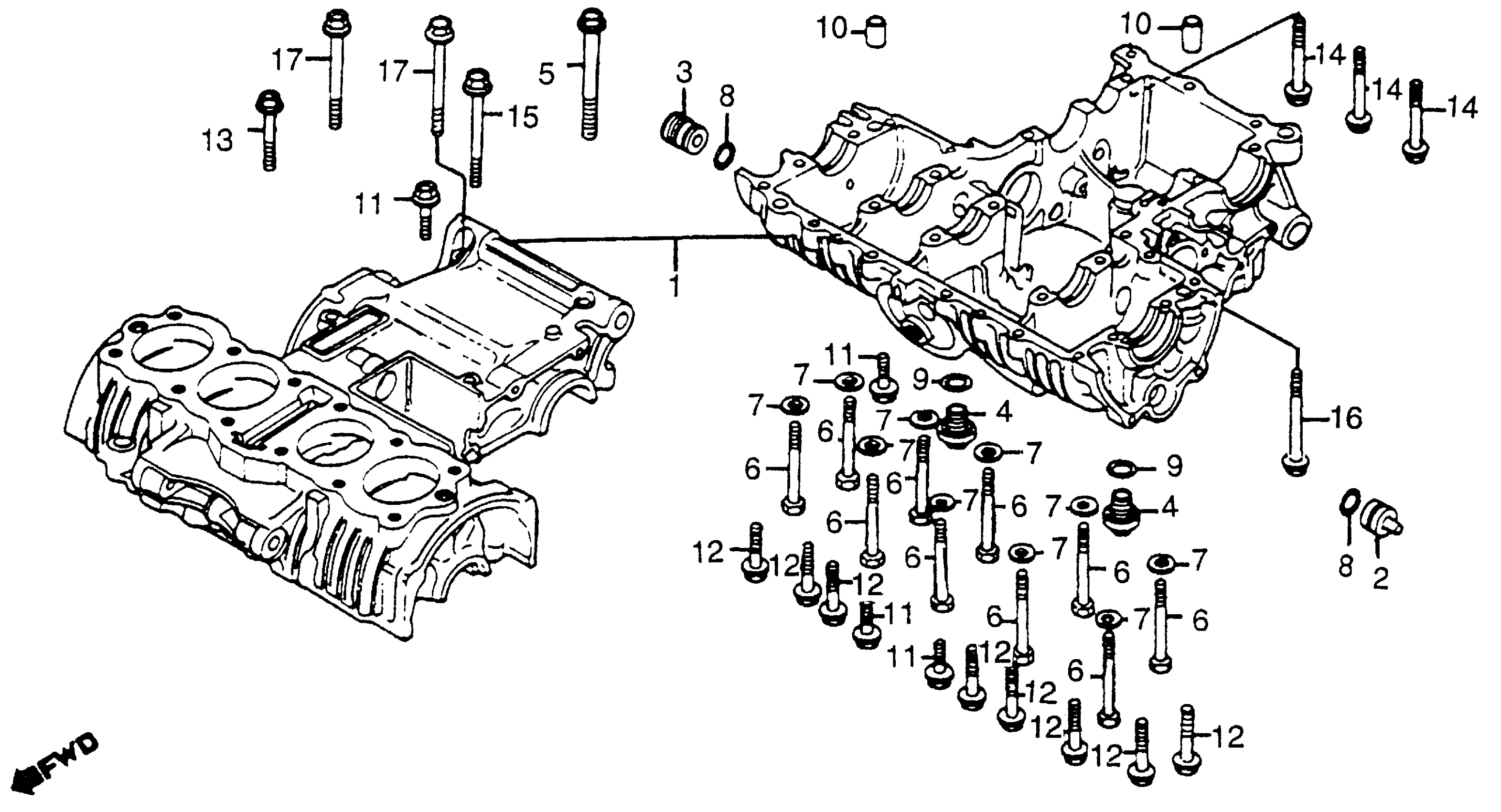

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-460-780

Unavailable

2

CAP B, OIL PASSAGE (NOT AVAILABLE)

11207-426-000

Unavailable

3

PLUG B, OIL PASSAGE (NOT AVAILABLE)

11208-426-000

Unavailable

4

CAP B, OIL PASSAGE (NOT AVAILABLE)

15332-300-000

Unavailable

5

BOLT, FLANGE (8X145) (NOT AVAILABLE)

90011-460-780

Unavailable

6

BOLT, HEX. (8X100) (NOT AVAILABLE) This part replaces 90084-460-780.

90084-323-000

Unavailable

7

WASHER (8MM)

90483-028-000

$1.51

8

O-RING (15X2.5)

91302-377-000

$5.31

9

O-RING (19.4X2.8) (NOT AVAILABLE)

91306-425-003

Unavailable

10

PIN A, DOWEL (10X16)

94301-10160

$2.28

11

BOLT, FLANGE (6X32) This part replaces 95700-06032-07.

95701-06032-07

$1.49

11

BOLT, FLANGE (6X32)

95701-06032-07

$1.49

12

BOLT, FLANGE (6X40) This part replaces 95700-06040-07.

95701-06040-07

$1.80

12

BOLT, FLANGE (6X40)

95701-06040-07

$1.80

13

BOLT, FLANGE (6X50) This part replaces 95700-06050-07.

95701-06050-07

$1.49

13

BOLT, FLANGE (6X50)

95701-06050-07

$1.49

14

BOLT, FLANGE (6X55) This part replaces 95700-06055-07.

95701-06055-07

$1.80

14

BOLT, FLANGE (6X55)

95701-06055-07

$1.80

15

BOLT, FLANGE (6X100) This part replaces 95700-06100-07.

95701-06100-07

$2.89

15

BOLT, FLANGE (6X100)

95701-06100-07

$2.89

16

BOLT, FLANGE (6X105) (NOT AVAILABLE)

95700-06105-07

Unavailable

17

BOLT, FLANGE (8X100) This part replaces 95700-08100-07.

95701-08100-07

Unavailable

17

BOLT, FLANGE (8X100)

95701-08100-07

Unavailable
