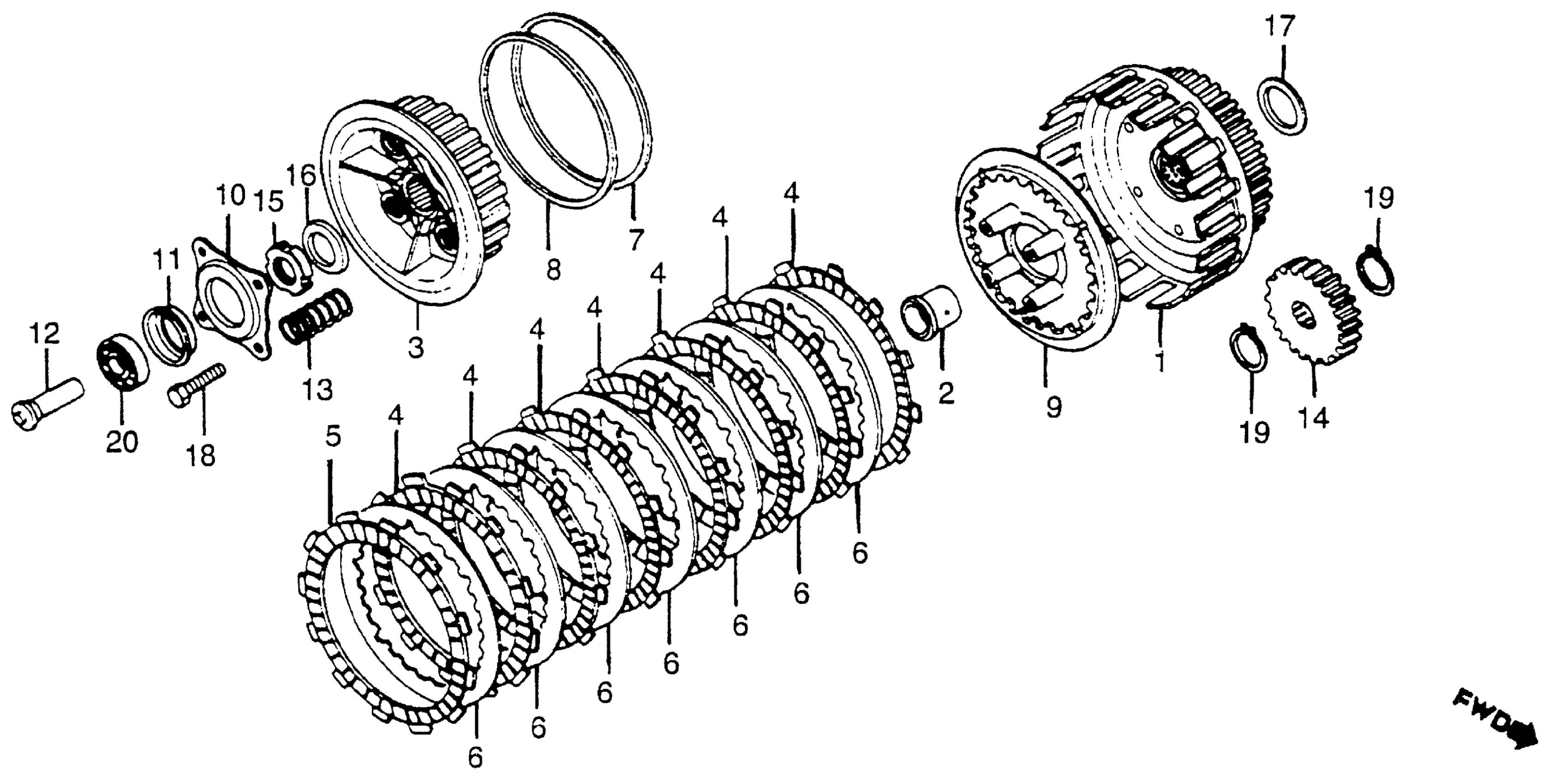

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE)

22100-426-000

Unavailable

2

COLLAR (25MM) (NOT AVAILABLE)

22116-390-300

Unavailable

3

CENTER, CLUTCH

22120-426-000

Unavailable

4

DISK, CLUTCH FRICTION

22201-286-010

$19.81

5

DISK B, CLUTCH FRICTION This part replaces 22202-390-000.

22202-392-000

$20.20

5

DISK B, CLUTCH FRICTION

22202-392-000

$20.20

6

PLATE B, CLUTCH

22321-329-000

$16.92

7

SPRING, CLUTCH PLATE (NOT AVAILABLE)

22325-426-003

Unavailable

8

SEAT, JUDDER SPRING (NOT AVAILABLE)

22326-426-003

Unavailable

9

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-426-000

Unavailable

10

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-426-000

Unavailable

11

PLATE, BEARING HOLDER (NOT AVAILABLE)

22362-426-000

Unavailable

12

GUIDE, CLUTCH LIFTER (NOT AVAILABLE)

22366-460-680

Unavailable

13

SPRING, CLUTCH

22401-374-000

Unavailable

14

GEAR, PRIMARY DRIVE (26T) (NOT AVAILABLE)

23103-426-000

Unavailable

15

NUT, LOCK (20MM)

90204-426-000

Unavailable

16

WASHER, LOCK

90432-121-000

$4.21

17

WASHER, THRUST (25MM) (NOT AVAILABLE)

90455-374-000

Unavailable

18

BOLT, HEX. (6X25) This part replaces 92222-06025.

92225-06025-0A

Unavailable

18

BOLT, HEX. (6X25) This part replaces 92222-06025-0A.

92225-06025-0A

Unavailable

18

BOLT, HEX. (6X25)

92225-06025-0A

Unavailable

19

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

20

BEARING, RADIAL BALL (6002) This part replaces 96100-60020.

96100-60020-00

$11.80

20

BEARING, RADIAL BALL (6002)

96100-60020-00

$11.80
