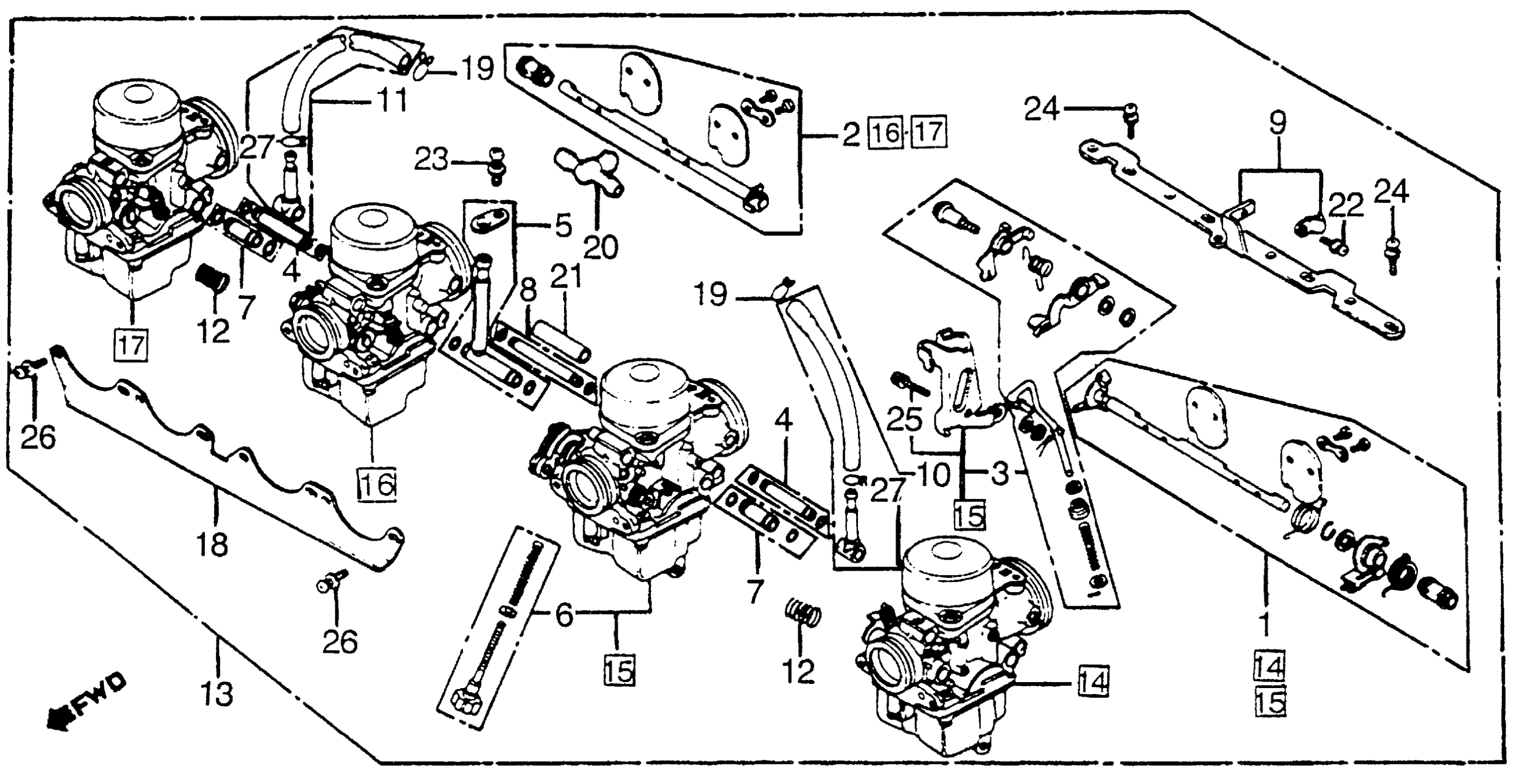

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 CARBURETOR ASSY. Diagram

#

Description
Price

1

LINK A SET, CHOKE (NOT AVAILABLE)

16017-460-305

Unavailable

2

LINK B SET, CHOKE (NOT AVAILABLE)

16018-460-305

Unavailable

3

ROD SET, PUMP (NOT AVAILABLE)

16019-460-771

Unavailable

4

JOINT SET A, FUEL (NOT AVAILABLE)

16026-422-004

Unavailable

5

JOINT SET A, FUEL (NOT AVAILABLE)

16027-460-771

Unavailable

6

SCREW SET B (NOT AVAILABLE)

16028-425-671

Unavailable

7

JOINT SET C, FUEL (NOT AVAILABLE)

16031-469-004

Unavailable

8

JOINT SET, FUEL (NOT AVAILABLE)

16034-460-771

Unavailable

9

PLATE SET, STAY (NOT AVAILABLE)

16035-460-771

Unavailable

10

JOINT (1,2) (THREE-WAY)

16036-460-771

Unavailable

11

JOINT (3&4) (THREE-WAY)

16047-460-771

Unavailable

12

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16051-460-771

Unavailable

13

CARBURETOR ASSY. This part replaces 16100-460-781.

16100-460-772

Unavailable

14

CARBURETOR ASSY. 1

16101-460-375

Unavailable

15

CARBURETOR ASSY. 2 (NOT AVAILABLE)

16102-460-375

Unavailable

16

CARBURETOR ASSY. 3

16103-460-375

Unavailable

17

CARBURETOR ASSY. 4

16104-460-375

Unavailable

18

PLATE, STAY

16119-460-771

Unavailable

19

CLIP, TUBE (NOT AVAILABLE)

16163-460-771

Unavailable

20

T-JOINT (NOT AVAILABLE)

16180-460-771

$19.44

21

PIPE, AIR VENT

16144-KG0-405

Unavailable

21

PIPE, AIR VENT This part replaces 16199-460-771.

16144-KG0-405

Unavailable

22

SCREW-WASHER (4X12)

93892-04012-00

$1.49

23

SCREW-WASHER (5X8)

93892-05008-00

$1.49

24

SCREW-WASHER (5X12)

93892-05012-00

$1.49

25

SCREW-WASHER (5X16)

93892-05016-00

$1.49

26

SCREW-WASHER (6X14)

93892-06014-00

$1.49

27

CLIP, TUBE (B8)

95002-02080

$1.80
