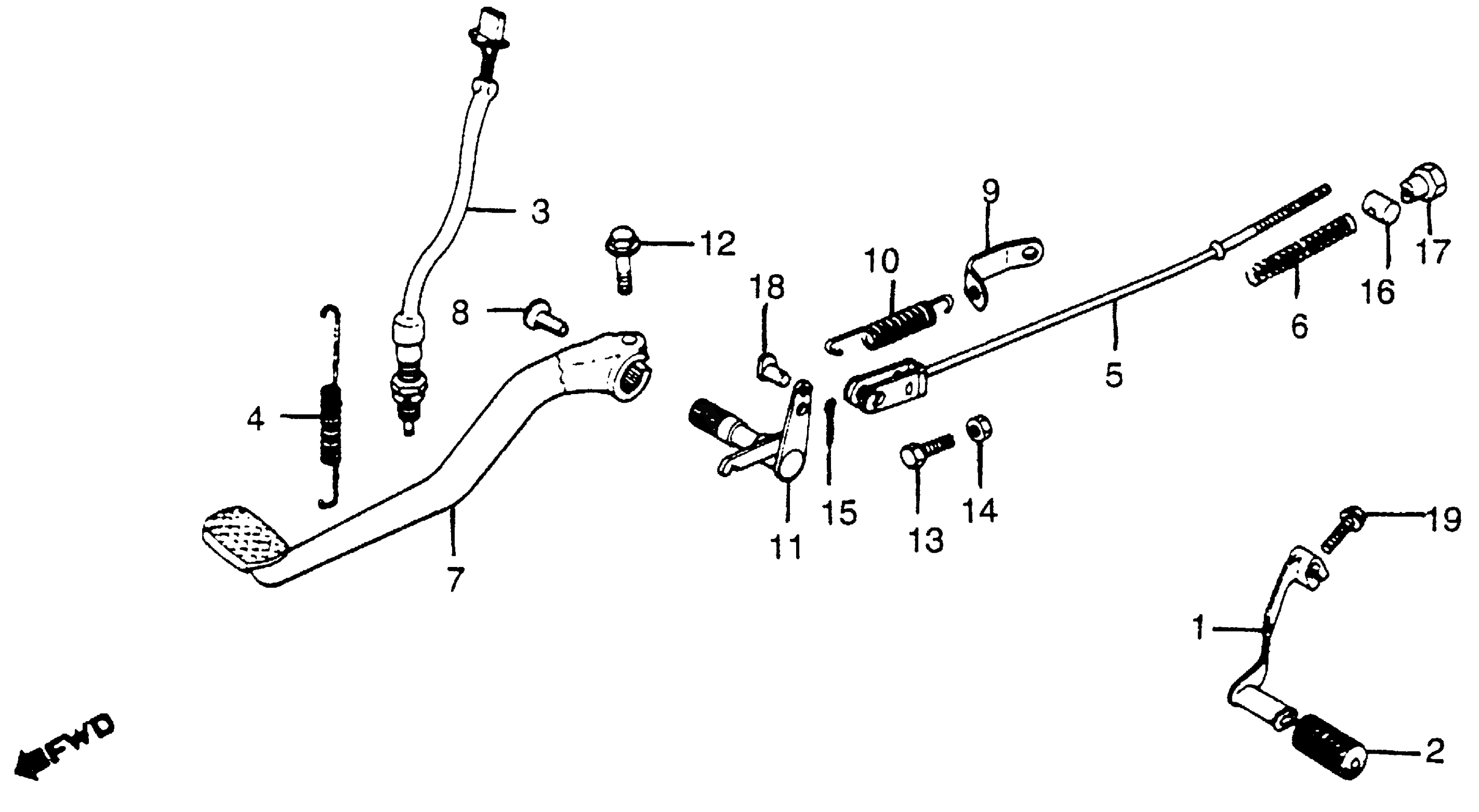

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 BRAKE PEDAL + CHANGE PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-460-000

Unavailable

1

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24700-460-840.

24700-460-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

SWITCH ASSY., RR. STOP

35350-MG7-405

$20.36

3

SWITCH ASSY., RR. STOP This part replaces 35350-425-003.

35350-MG7-405

$20.36

4

SPRING, STOP SWITCH

35357-KT8-000

Unavailable

4

SPRING, STOP SWITCH (NOT AVAILABLE) This part replaces 35357-460-840.

35357-KT8-000

Unavailable

5

ROD, RR. BRAKE

43451-444-000

Unavailable

5

ROD, RR. BRAKE This part replaces 43451-460-840.

43451-444-000

Unavailable

6

SPRING, BRAKE ROD

43472-460-840

Unavailable

7

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-460-840

Unavailable

8

CAP, RR. BRAKE SPINDLE (NOT AVAILABLE)

46511-460-840

Unavailable

9

PLATE, BRAKE SPRING STOPPER (NOT AVAILABLE)

46513-460-840

Unavailable

10

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-426-010

Unavailable

11

SPINDLE, RR. BRAKE (NOT AVAILABLE)

46515-460-840

Unavailable

12

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.85

13

BOLT (6X32) (NOT AVAILABLE)

90186-426-000

Unavailable

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

15

PIN, COTTER (1.6X25)

94201-16250

$1.49

16

JOINT, BRAKE ARM

95015-32001

$1.49

17

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

18

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

19

BOLT, FLANGE (6X20) This part replaces 96000-06020-02.

96001-06020-02

$1.49

19

BOLT, FLANGE (6X20)

96001-06020-02

$1.49
