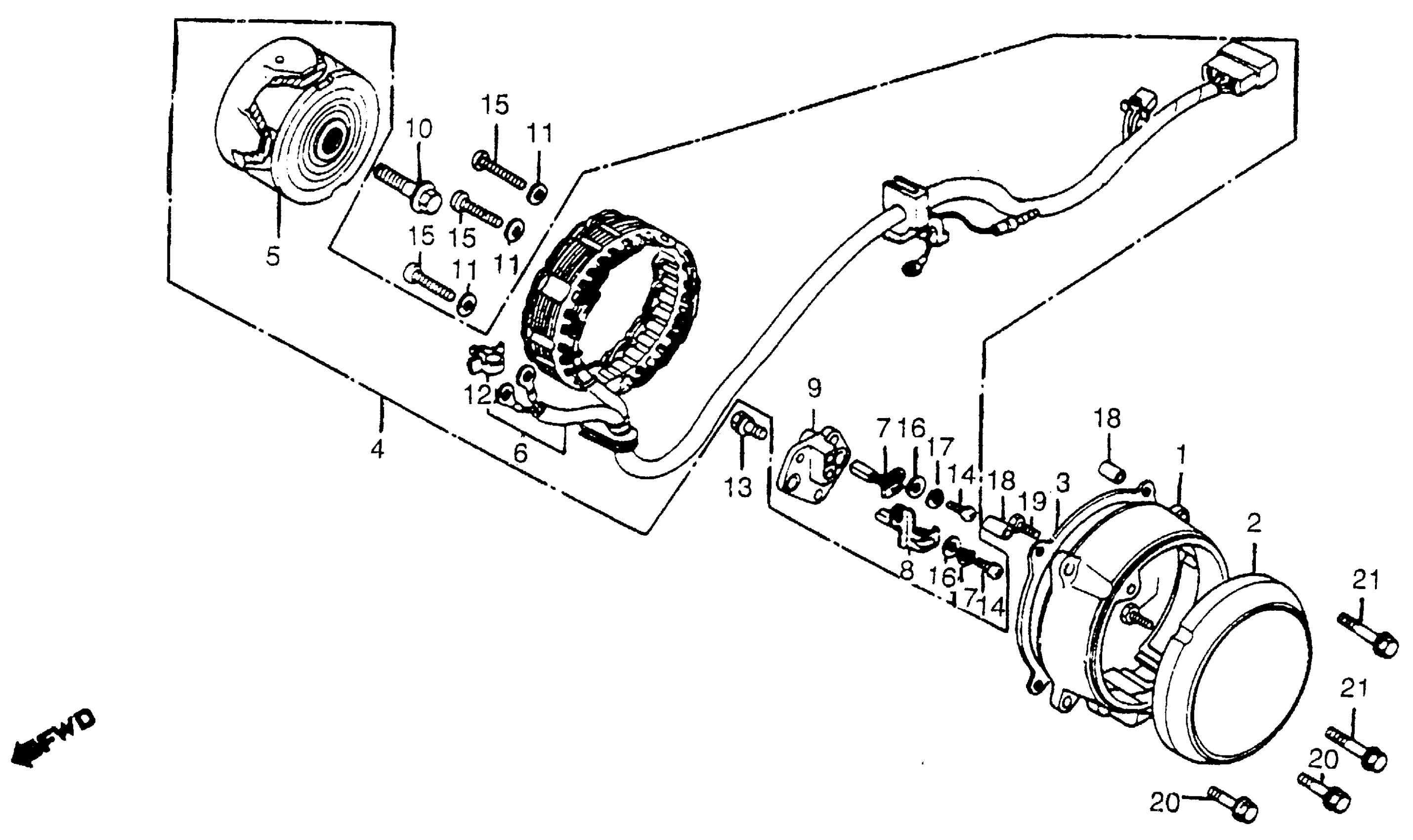

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 ALTERNATOR Diagram

#

Description
Price

1

COVER, ALTERNATOR (NOT AVAILABLE)

11631-460-780

Unavailable

2

COVER, ALTERNATOR (UPPER) (NOT AVAILABLE)

11632-460-780

Unavailable

3

GASKET, ALTERNATOR COVER This part replaces 11691-426-000.

11691-426-306

Unavailable

3

GASKET, ALTERNATOR COVER

11691-426-306

Unavailable

4

ALTERNATOR ASSY. This part replaces 31100-426-015.

31100-426-832

Unavailable

5

ROTOR This part replaces 31110-425-005.

31110-426-832

Unavailable

5

ROTOR

31110-426-832

Unavailable

6

STATOR This part replaces 31120-426-005.

31120-426-832

Unavailable

7

BRUSH A

31124-MG5-000

Unavailable

7

BRUSH A This part replaces 31124-422-005.

31124-MG5-000

Unavailable

8

BRUSH B

31125-MG5-005

Unavailable

8

BRUSH B This part replaces 31125-422-005.

31125-MG5-005

Unavailable

9

BASE, BRUSH

31126-422-015

Unavailable

10

BOLT, UBS (10X32) This part replaces 90014-333-000.

90014-333-003

Unavailable

10

BOLT, UBS (10X32)

90014-333-003

Unavailable

11

WASHER, PLAIN (6MM) This part replaces 90563-304-000.

94101-06800

$1.49

11

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

11

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

11

WASHER, PLAIN (6MM)

94101-06800

$1.49

11

WASHER, PLAIN (6MM) This part replaces 94102-06000.

94101-06800

$1.49

12

CLIP, CABLE (6MM)

90659-170-000

$5.53

13

BOLT-WASHER (6X16)

93402-06016-00

$1.73

13

BOLT-WASHER (6X16) This part replaces 93492-06016-00.

93402-06016-00

$1.73

14

SCREW, PAN (4X12)

93500-04012-0H

$1.49

15

SCREW, PAN (6X30) This part replaces 93500-06030.

93500-06030-0A

$1.49

15

SCREW, PAN (6X30)

93500-06030-0A

$1.49

16

WASHER, PLAIN (4MM)

94101-04800

$1.49

17

WASHER, SPRING (4MM)

94111-04800

$1.49

18

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

19

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

19

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

20

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

20

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

21

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

21

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
