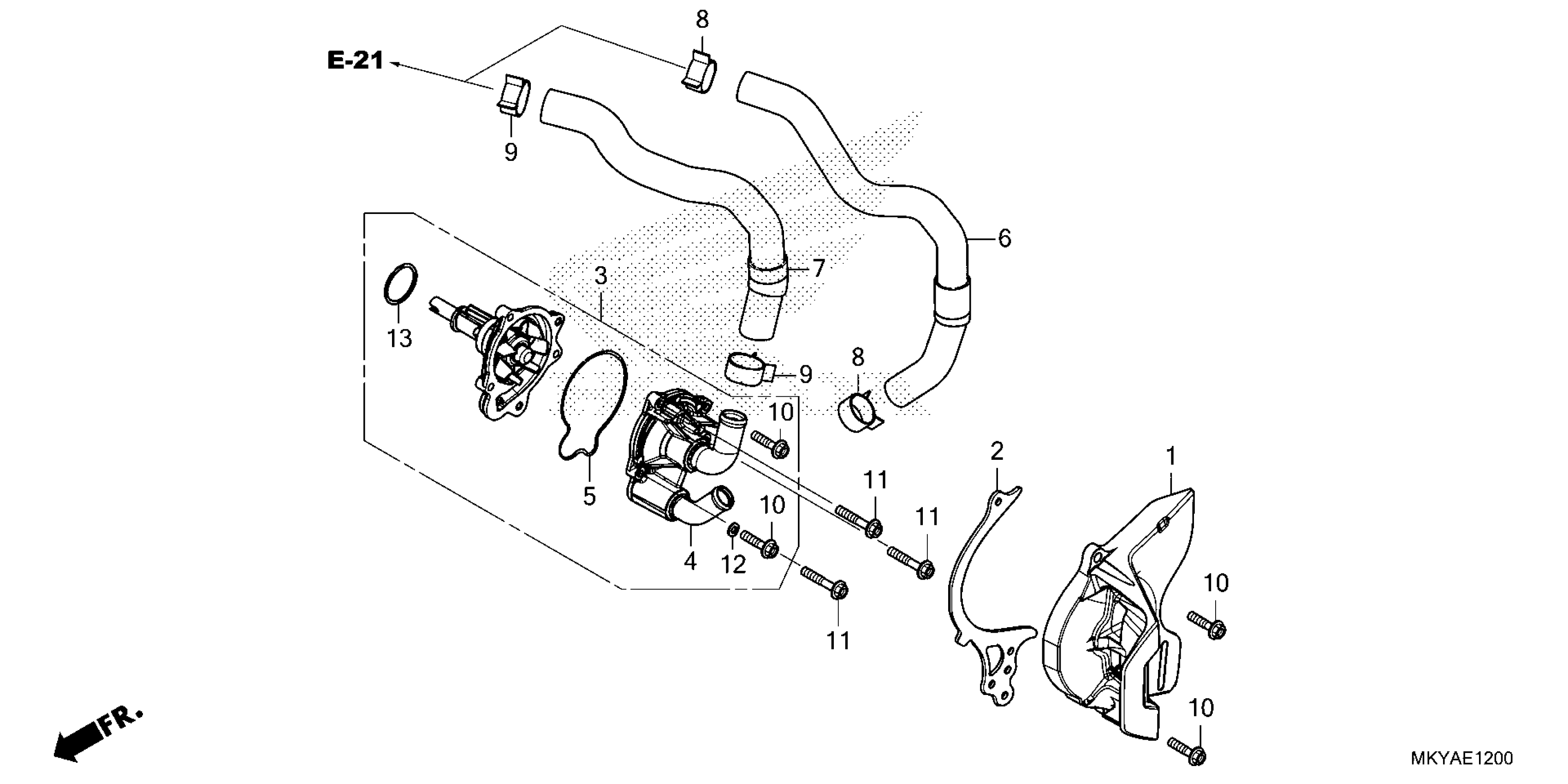

Honda CB650RACAC (25) MOTORCYCLE, THA, VIN# MLHRH165-S5100001 TO MLHRH165-S5199999 WATER PUMP Diagram

COVER, L. RR.

11350-MKY-E20

$10.47

PLATE, CHAIN GUIDE

11356-MKY-E20

$8.81

WATER PUMP

19200-MKY-305

$169.58

COVER, WATER PUMP

19220-MJE-DB0

$148.06

GASKET, WATER PUMP BODY

19226-MJE-D00

$8.46

HOSE A, WATER

19525-MKY-D10

$21.19

HOSE B, WATER

19526-MJE-D00

$24.19

CLIP, WATER HOSE (D27)

19531-MGZ-J00

$1.84

CLIP, WATER HOSE (D30)

19533-MGZ-J00

$3.35

BOLT, FLANGE (6X25) (S-NSHF)

90028-GHB-680

$1.01

BOLT, FLANGE (6X35) (S-NSHF)

90028-GHB-720

$1.01

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.71
