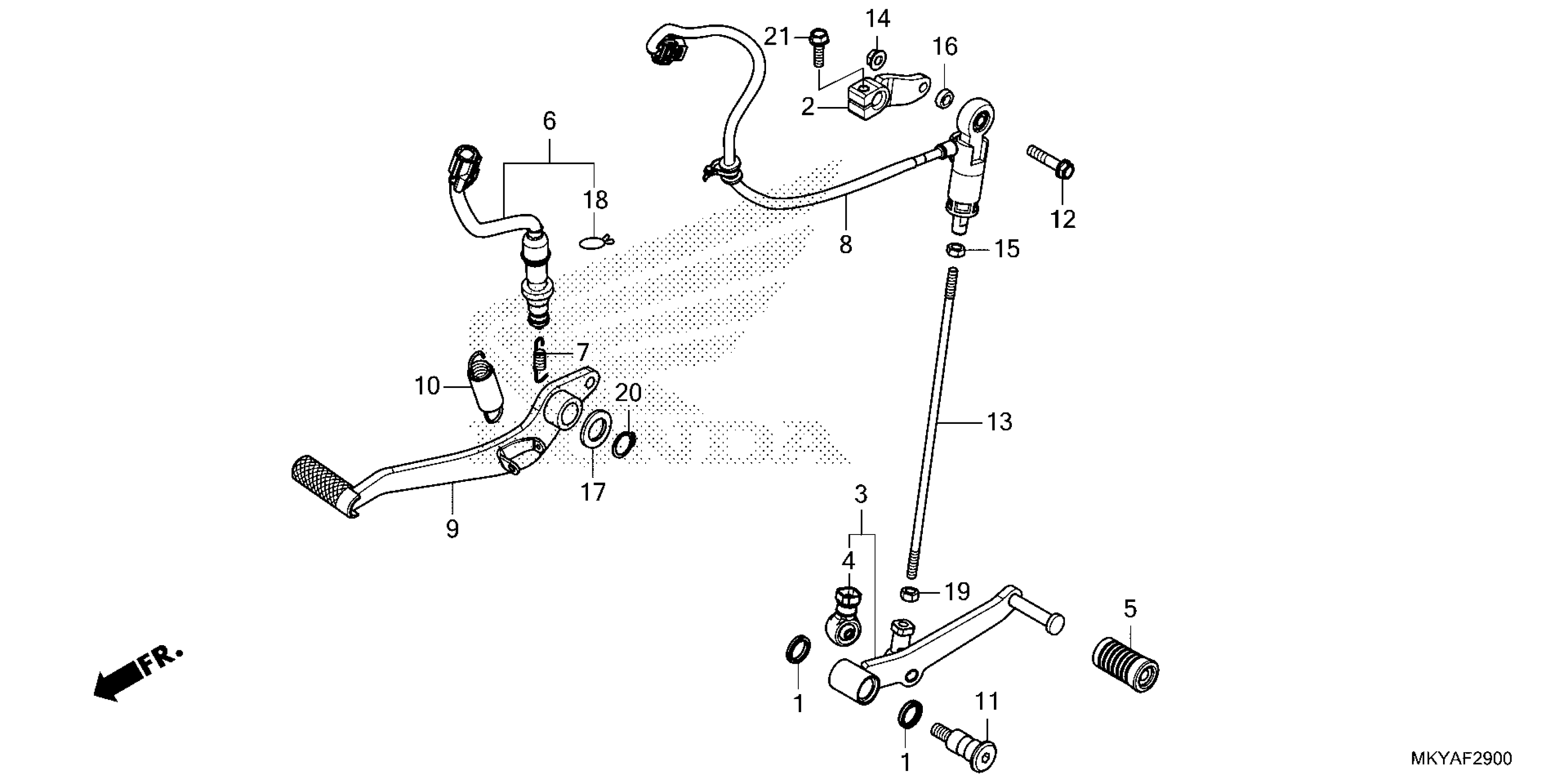

Honda CB650RACAC (25) MOTORCYCLE, THA, VIN# MLHRH165-S5100001 TO MLHRH165-S5199999 PEDAL Diagram

RUBBER, DUST SEAL

24706-MK3-770

$4.48

ARM, GEARSHIFT

24712-MKN-D50

Unavailable

PEDAL, GEARSHIFT

24720-MKN-D50

$42.95

COVER, DUST

24724-MBW-D21

$6.98

RUBBER, CHANGE PEDAL

24781-KSP-860

$7.68

SWITCH ASSY., RR. STOP

35350-MKY-D51

$22.13

SPRING, STOP SWITCH

35357-HP0-A00

$2.56

SENSOR ASSY., STROKE

36390-MKY-E81

$246.92

PEDAL, BRAKE (COO) This part replaces 46500-MJE-D00.

46500-MJE-305

$42.18

PEDAL, BRAKE (COO)

46500-MJE-305

$42.18

SPRING ASSY., BRAKE PEDAL

46513-KYJ-900

$3.03

BOLT, CHANGE PIVOT

90113-MGZ-J00

$9.50

BOLT, FLANGE (7X30)

90115-MKF-D60

$3.13

BOLT, TIE ROD

90165-MKY-EA0

$3.26

NUT, FLANGE (7MM)

90202-KV3-000

$2.11

NUT, SPECIAL (6MM) (LEFT HAND THREAD)

90301-MGZ-J00

$2.34

COLLAR, SHIFTER

90503-MKY-EA0

$1.49

WASHER (15.2X25)

90557-230-000

$2.39

CLIP, SWITCH COVER

90651-MGE-641

$1.80

NUT, HEX. (6MM)

94001-06070-0S

$1.49

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
