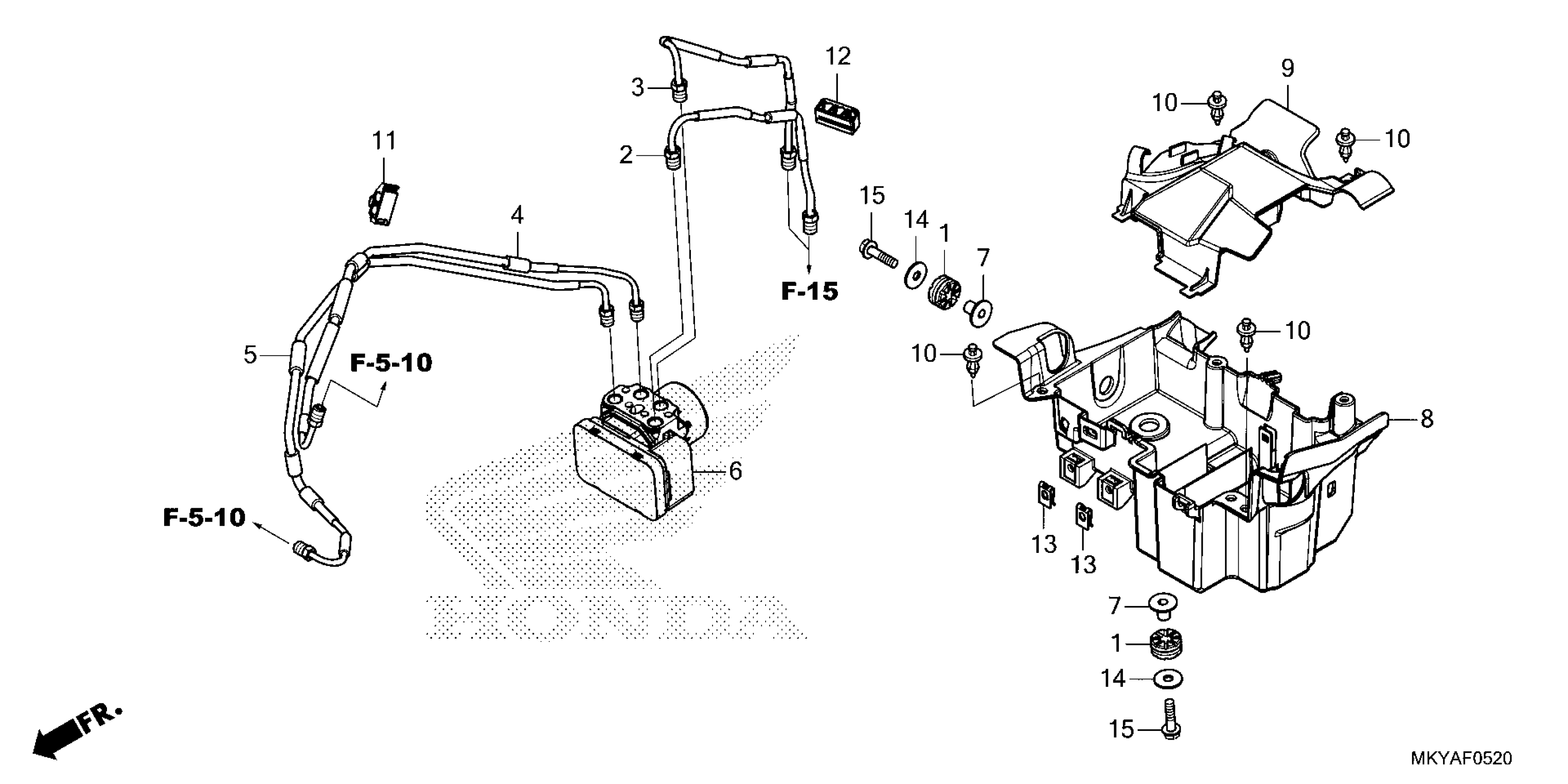

Honda CB650RACAC (25) MOTORCYCLE, THA, VIN# MLHRH165-S5100001 TO MLHRH165-S5199999 ABS MODULATOR Diagram

RUBBER A, TAILLIGHT MOUNTING

33705-KW7-900

$2.24

PIPE A, RR. BRAKE

43311-MJE-DB0

$8.74

PIPE B, RR. BRAKE

43312-MJE-DB0

$8.74

PIPE B, FR. BRAKE

45125-MKN-D50

$8.49

PIPE C, FR. BRAKE

45126-MKN-D50

$23.74

MODULATOR ASSY.

57110-MKN-D52

$957.44

COLLAR, FR. FENDER (BLACK) (FOR RR.)

61104-428-730

$4.01

TRAY, ABS MODULATOR

80111-MKY-E20

$19.63

COVER, ABS MODULATOR

80120-MKY-E20

$5.96

CLIP, BUMPER SEAL

90116-K2P-V61

$1.39

CLAMP, BRAKE PIPE (7.0X2)

90661-K87-L51

$0.57

CLIP, BRAKE PIPE (6.9X2)

90661-KVK-B11

$4.03

NUT, CLIP (5MM)

90677-KAN-T00

$0.59

WASHER, PLAIN (6MM)

94103-06700

$0.66

BOLT, FLANGE (6X25)

95701-06025-07

$1.79
