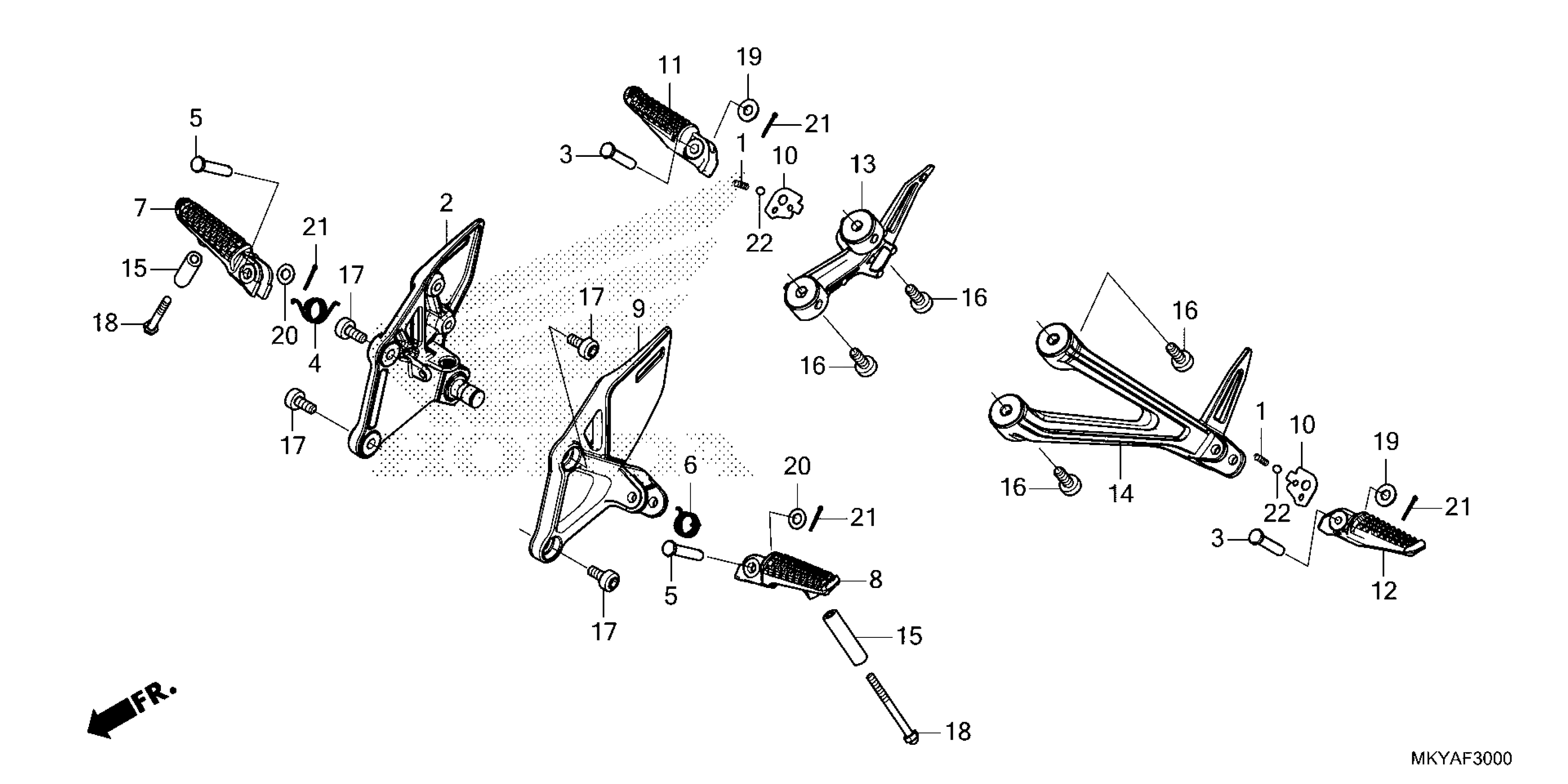

Honda CB650RACAC (24) MOTORCYCLE, THA, VIN# MLHRH165-R5000001 TO MLHRH165-R5099999 STEP Diagram

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

HOLDER, R. MAIN STEP

50600-MKN-D50

$35.75

PIN, STEP BAR JOINT

50603-033-010

$3.06

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.20

PIN, STEP BAR

50639-ML0-010

$4.84

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.20

ARM, R. MAIN STEP

50660-MKN-D50

$12.68

ARM, L. MAIN STEP

50665-MKN-D50

$12.68

HOLDER, L. MAIN STEP

50700-MKN-D50

$29.74

PLATE, PILLION STEP CLICK

50718-MN8-000

$2.29

ARM, R. PILLION STEP

50720-K94-T00

$10.75

ARM, L. PILLION STEP

50730-K94-T00

$10.75

HOLDER, R. PILLION STEP

50750-MKN-D50

$32.44

HOLDER, L. PILLION STEP

50760-MKN-D50

$32.44

COLLAR, STEP (LOWER)

51486-MKN-D50

Unavailable

BOLT, SOCKET (8X22)

90116-MGZ-J00

$0.88

BOLT, SOCKET (8X18)

90116-MJE-D00

$2.79

BOLT, HEX. CAP (6X60)

92501-06060-0A

$1.10

WASHER, PLAIN (8MM)

94101-08000

Unavailable

WASHER, PLAIN (8MM)

94102-08800

$0.87

PIN, COTTER (2.0X15)

94201-20150

$1.04

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
