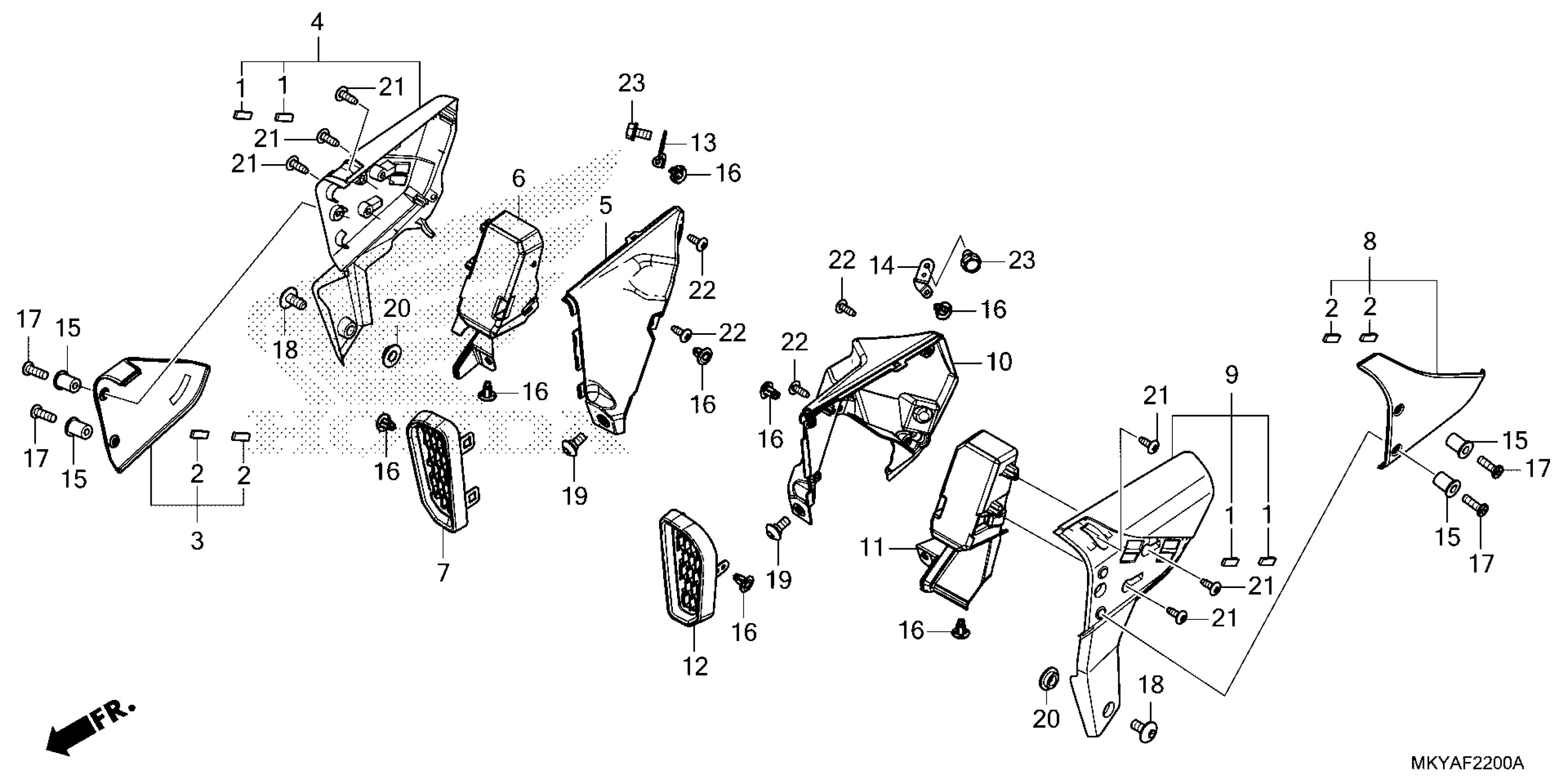

Honda CB650RACAC (24) MOTORCYCLE, THA, VIN# MLHRH165-R5000001 TO MLHRH165-R5099999 SHROUD Diagram

#

Description
Price

1

FASTENER A, DUAL LOCK (8X25)

17540-MJE-D00

$1.38

2

FASTENER C, DUAL LOCK (8X25)

17541-MJE-D00

$1.20

3

SHROUD A *NHA40M*

64305-MKY-E20ZB

$24.45

4

SHROUD B, R.

64321-MKY-E20

$12.36

5

SHROUD C, R.

64331-MKY-E20

$6.19

6

BOX, R. AIR DUCT

64336-MKY-E20

$5.29

7

SHROUD D, R.

64341-MKY-E20

$4.27

8

SHROUD A *NHA40M*

64405-MKY-E20ZB

$25.19

9

SHROUD B, L.

64421-MKY-E20

$12.36

10

SHROUD C, L.

64431-MKY-E20

$5.90

11

BOX, L. AIR DUCT

64436-MKY-E20

$5.13

12

SHROUD D, L.

64441-MKY-E20

$4.59

13

STAY, R. SHROUD

64650-MKY-E20

$4.43

14

STAY, L. SHROUD

64660-MKY-E20

$4.65

15

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.20

16

RIVET, PUSH (6MM)

90116-K0A-E11

$1.17

17

BOLT, SPECIAL (5X16)

90116-MKF-D40

$2.32

18

SCREW, PAN (6X14)

90125-MKN-D50

$1.22

19

SCREW, PAN (6X14)

90133-KPP-T00

Unavailable

20

COLLAR, MOUNTING

90503-MJE-D40

$2.75

21

SCREW, TAPPING (4X12)

93903-24320

$0.83

22

SCREW, TAPPING (4X12)

93903-24380

Unavailable

23

BOLT, FLANGE (6X12)

95701-06012-08

$1.48
