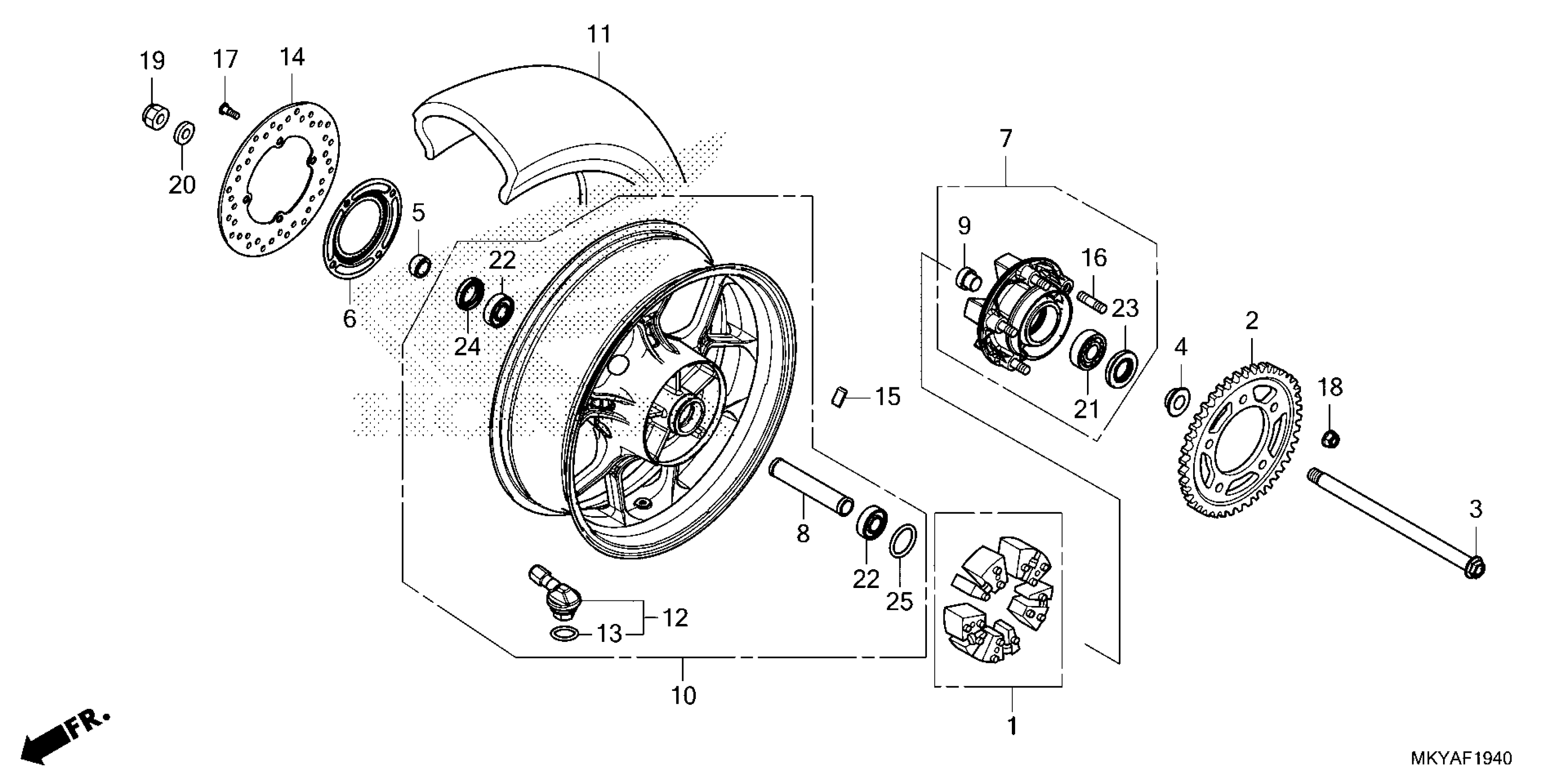

Honda CB650RACAC (24) MOTORCYCLE, THA, VIN# MLHRH165-R5000001 TO MLHRH165-R5099999 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MGS-D30

$52.73

2

SPROCKET (42T)

41201-MKY-E00

$35.53

3

AXLE, RR. WHEEL

42301-MKY-D50

$24.25

4

COLLAR, L. RR. WHEEL SIDE

42311-MER-D00

$17.25

5

COLLAR, RR. BRAKE SIDE

42312-MER-D00

$10.07

6

RING, RR. PULSER

42515-MKY-DN0

$23.93

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-MJE-D00

$122.49

8

COLLAR, RR. AXLE DISTANCE

42620-MKN-D50

$18.91

9

COLLAR B, RR. WHEEL DISTANCE

42625-MER-D00

$17.21

10

WHEEL SUB-ASSY., RR. (TYPE2) (WOL)

42650-MKY-D50ZA

$359.18

11

TIRE (180/55ZR17)

42711-MKY-E01

$173.47

12

VALVE ASSY., CLAMP IN

42755-MKA-D81

$15.22

13

O-RING

42758-MKA-D81

$1.41

14

DISK, RR. BRAKE

43251-MKY-D51

$77.54

15

WEIGHT, BALANCE (10G) | Use up to Frame SN R5000001.

44721-MGH-H21

$3.28

15

WEIGHT, BALANCE (10G) | Use from Frame SN R5000002.

44721-MLN-EQ1

Unavailable

15

WEIGHT, BALANCE (15G) | Use up to Frame SN R5000001.

44722-MGH-H21

$3.93

15

WEIGHT, BALANCE (15G) | Use from Frame SN R5000002.

44722-MLN-EQ1

Unavailable

15

WEIGHT, BALANCE (20G) | Use up to Frame SN R5000001.

44723-MGH-H21

$3.75

15

WEIGHT, BALANCE (20G) | Use from Frame SN R5000002.

44723-MLN-EQ1

$3.75

16

BOLT 2, STUD (12X25)

90102-MAS-000

$3.83

17

BOLT, DISK (8X25)

90105-MGS-D30

$2.80

18

NUT, U (12MM) (FUJI SEIMITSU)

90306-KGH-901

$2.37

19

NUT, U (18MM)

90306-MJE-D01

$8.38

20

WASHER (18X32X2)

90401-KZ4-890

$4.28

21

BEARING, RADIAL BALL (63/22)

91051-MAS-003

$36.76

22

BEARING, RADIAL BALL (6204UU) (NSK)

91053-MKY-D51

$13.93

23

DUST SEAL (30X56X7.5)

91252-MAS-003

$11.13

24

DUST SEAL (30X47X7.5)

91253-MAE-003

$14.64

25

O-RING (55X2)

91351-MGS-D30

Unavailable
