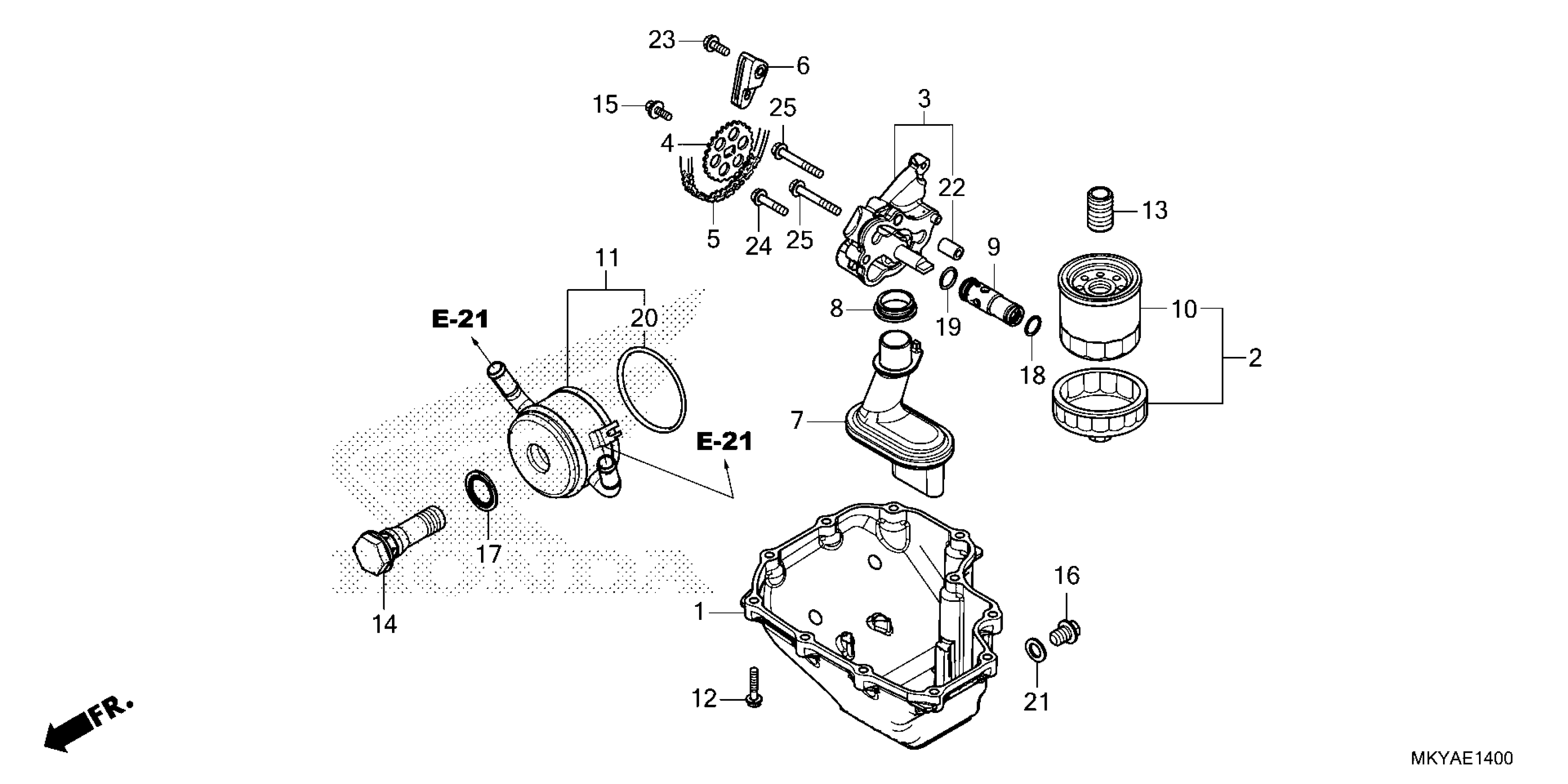

Honda CB650RACAC (24) MOTORCYCLE, THA, VIN# MLHRH165-R5000001 TO MLHRH165-R5099999 OIL PAN@OIL PUMP Diagram

PAN, OIL

11210-MJE-DB0

$90.79

FILTER SET, OIL | (Optional).

15010-MKR-305

$20.30

PUMP ASSY., OIL

15100-MJE-D00

$46.23

SPROCKET, OIL PUMP DRIVEN (26T)

15134-MV9-670

$27.03

CHAIN, OIL PUMP (RK 25H-70LE)

15141-MKY-D11

$10.61

GUIDE B, OIL PUMP CHAIN

15147-MGE-D00

$17.10

STRAINER, OIL

15150-MJE-D00

$15.26

GASKET, OIL STRAINER

15154-MAT-000

$6.16

VALVE ASSY., RELIEF

15220-MJE-D02

$64.72

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

COOLER, OIL

15700-MJE-D01

$241.97

BOLT, FLANGE (6X28)

90010-MGZ-J00

$1.49

BOSS, OIL FILTER

90019-MGZ-J00

$2.33

BOLT, OIL COOLER

90019-MJE-D00

$20.98

BOLT-WASHER (6X12)

90021-MGZ-J00

$4.23

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

WASHER, SEALING (34.5MM)

90402-MFJ-D01

$7.22

O-RING (13.8X1.9)

91301-PC0-003

$2.66

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.67

O-RING, OIL COOLER

91354-MEJ-641

$4.02

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.06
