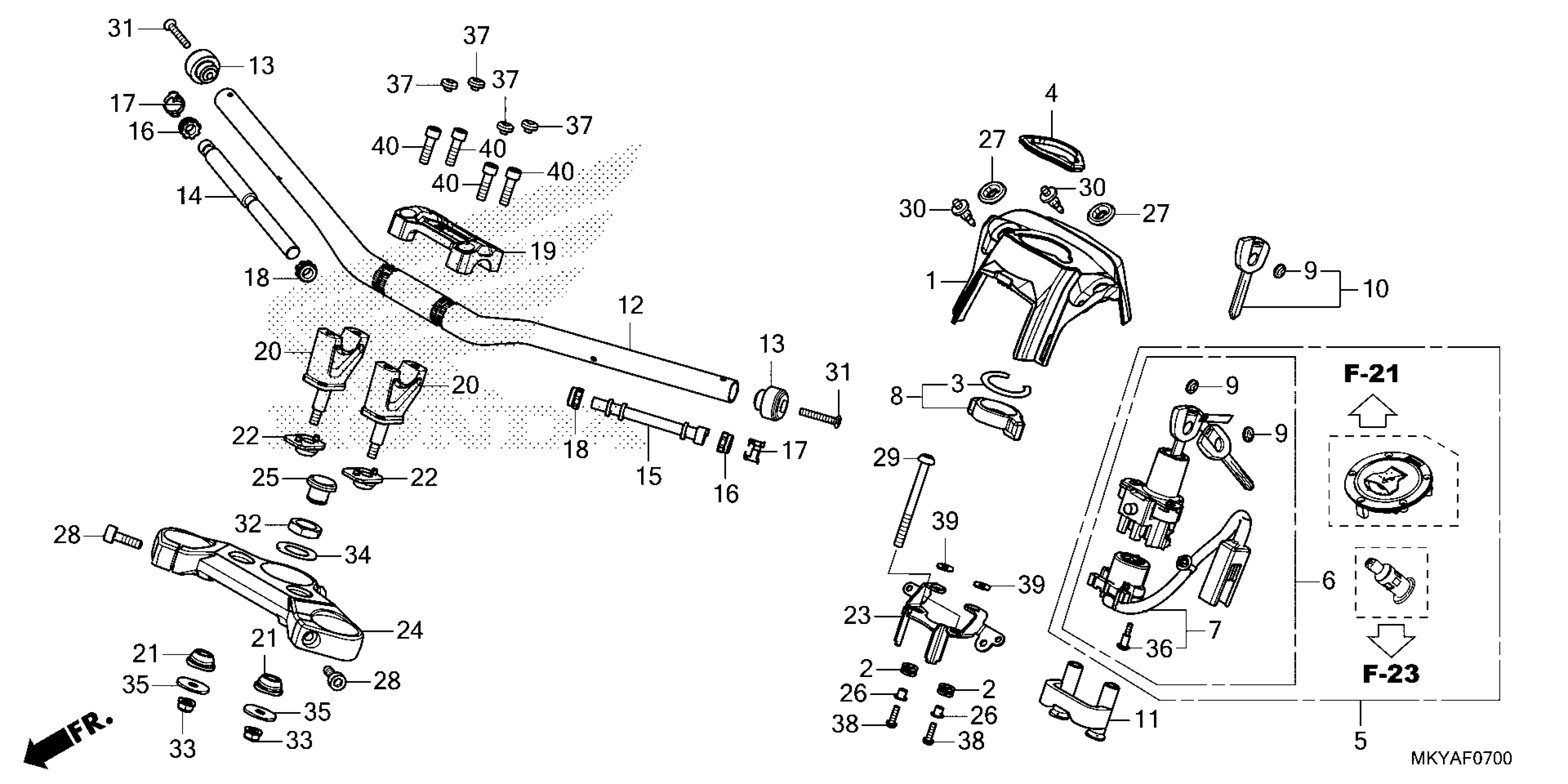

Honda CB650RACAC (24) MOTORCYCLE, THA, VIN# MLHRH165-R5000001 TO MLHRH165-R5099999 HANDLEBAR@TOP BRIDGE (CB650RAC) Diagram

COVER, COMBINATION SWITCH

17575-MKN-D50

$9.50

RUBBER, MOUNTING

19639-KEE-630

$20.72

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84

COVER, RECEIVER UNIT HOLE

30435-MKN-D50

$2.89

LOCK SET

35010-MKY-LA0

$209.67

SWITCH ASSY.

35100-MKY-LA1

$116.98

BASE, CONTACT

35101-MKY-D51

$51.64

COVER, COMBINATION SWITCH

35106-MKJ-A00

$11.75

EMBLEM, KEY | (Optional).

35113-MJE-D00

$21.11

KEY, BLANK | (Optional).

35121-MJE-A02

$22.64

STAY, KEY MOUNTING

50197-MKN-D50

$39.93

HANDLEBAR

53100-MKY-E20

$62.03

WEIGHT, HANDLEBAR

53104-MJE-DF0

$7.71

WEIGHT B, HANDLEBAR

53105-MKY-EA0

$10.25

WEIGHT B, HANDLEBAR

53106-MKY-E80

$8.72

RUBBER, HANDLE WEIGHT (B)

53107-MY1-000

$7.00

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$6.22

RUBBER B, HANDLE WEIGHT

53109-MM5-000

$3.72

HOLDER, HANDLE (UPPER)

53131-MKN-D50

$39.31

HOLDER, HANDLEBAR (LOWER)

53132-MKN-D50

$36.53

RUBBER, HANDLE CUSHION

53136-K94-T00

$2.56

RUBBER, HANDLE CUSHION

53136-MKN-D50

$2.51

STAY, RECEIVER UNIT

53190-MKN-D50

$17.62

BRIDGE, FORK TOP

53230-MKY-D50

$99.41

CAP, STEERING STEM NUT

53232-MJ4-670

$13.43

COLLAR, RR. FENDER

80101-MFJ-D00

$3.78

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

BOLT, SOCKET (8X28)

90105-MA6-750

$5.43

BOLT, ONE-WAY (8MM)

90107-MJN-A00

$4.53

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

SCREW, OVAL (6X40)

90122-MKN-D50

$1.49

NUT, STEERING STEM

90304-KGA-900

$3.13

NUT, U (8MM)

90304-KPG-901

$1.49

WASHER, STEERING STEM

90503-KGA-900

$1.54

WASHER, HANDLE HOLDER (LOWER)

90535-K26-900

$2.67

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

CAP, SOCKET BOLT (8MM)

91455-KEA-000

$3.72

SCREW-WASHER (5X18)

93891-05018-08

$1.49

WASHER, PLAIN (5MM)

94103-05800

$1.49

BOLT, SOCKET (8X28)

96600-08028-08

$1.49
