Description

Price

1

PUMP ASSY., FUEL (MSDS)

16700-MKN-D52

$449.53

2

STOPPER

16711-MGS-D31

$4.47

3

SCREW (4X6.6)

16712-MGS-D31

$1.74

4

FILTER ASSY., FUEL

16730-MKT-D01

$38.84

6

JOINT, BREATHER TUBE

17359-419-670

$1.90

7

TANK, FUEL NHC53P This part replaces 17500-MKY-D50ZC.

17500-MKY-D50ZM

$777.19

7

TANK, FUEL NHC53P

17500-MKY-D50ZM

$777.19

8

TRIM, FUEL TANK NH1 (BLACK)

17516-KCZ-000ZB

$1.87

9

HOSE, FUEL FEED

17526-MKY-D51

$32.03

10

RUBBER, FR. TANK MOUNTING

17534-MKN-D50

$2.47

11

COLLAR

17538-KZZ-900

$2.16

12

FASTENER A, DUAL LOCK (8X25)

17540-MJE-D00

$1.40

13

FASTENER C, DUAL LOCK (8X25)

17541-MJE-D00

$1.22

14

TUBE, DRAIN

17543-MJE-D00

$5.29

15

FASTENER F, DUAL LOCK (20X20)

17543-MJE-DB0

$2.29

16

RUBBER, PROTECTOR

17550-MKY-D50

$1.85

18

COVER ASSY., FR. FUEL TANK NH436M (WOL) (MAT GUNPOWDER BLACK METALLIC)

17570-MKY-D50ZG

$33.99

19

CUSHION, RR. FUEL TANK

17572-MJE-D00

$2.15

20

GASKET, BASE

17574-MGS-D30

$22.44

24

CAP COMP

17620-MJE-D04

$205.01

25

SEAL, BREATHER

17621-MGP-D62

$4.90

26

FILM, PROTECTOR

50173-KWT-700

$3.79

27

FILM B, PROTECTOR

77227-KVK-900

$1.57

28

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

29

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

30

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$0.88

31

SCREW, PAN (6X8)

90130-MKN-D50

$1.26

32

BOLT, HINGE (10X102.4)

90135-MJE-D00

$2.74

33

NUT, CAP (6MM)

90201-415-000

Unavailable

34

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

35

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

36

WASHER, PLAIN (6MM)

94103-06800

$0.72

37

CLIP, TUBE (B12.5)

95002-02130

$1.06

39

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$29.17

40

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.88

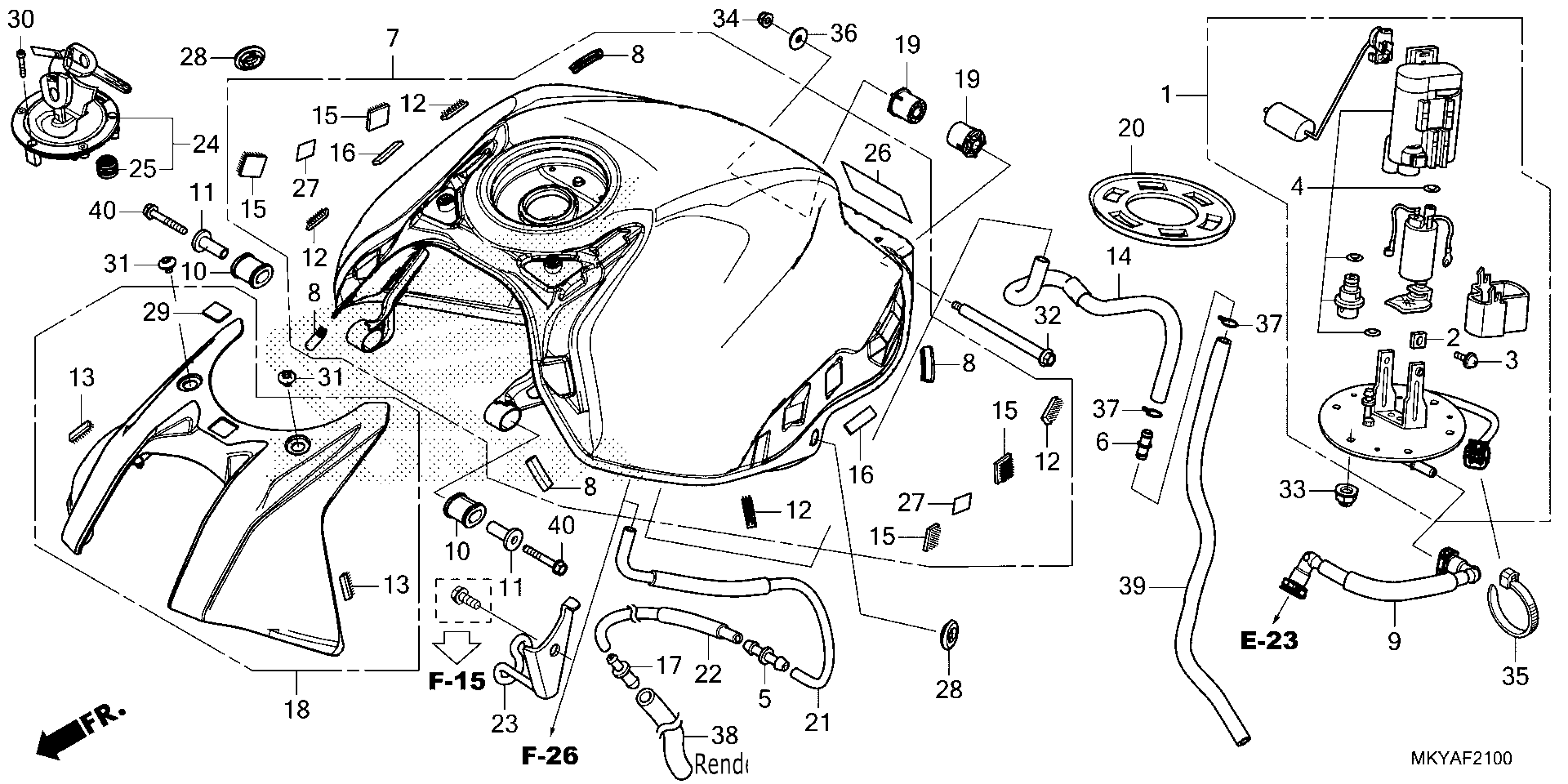

Honda CB650RACAC (24) MOTORCYCLE, THA, VIN# MLHRH165-R5000001 TO MLHRH165-R5099999 FUEL TANK Diagram
