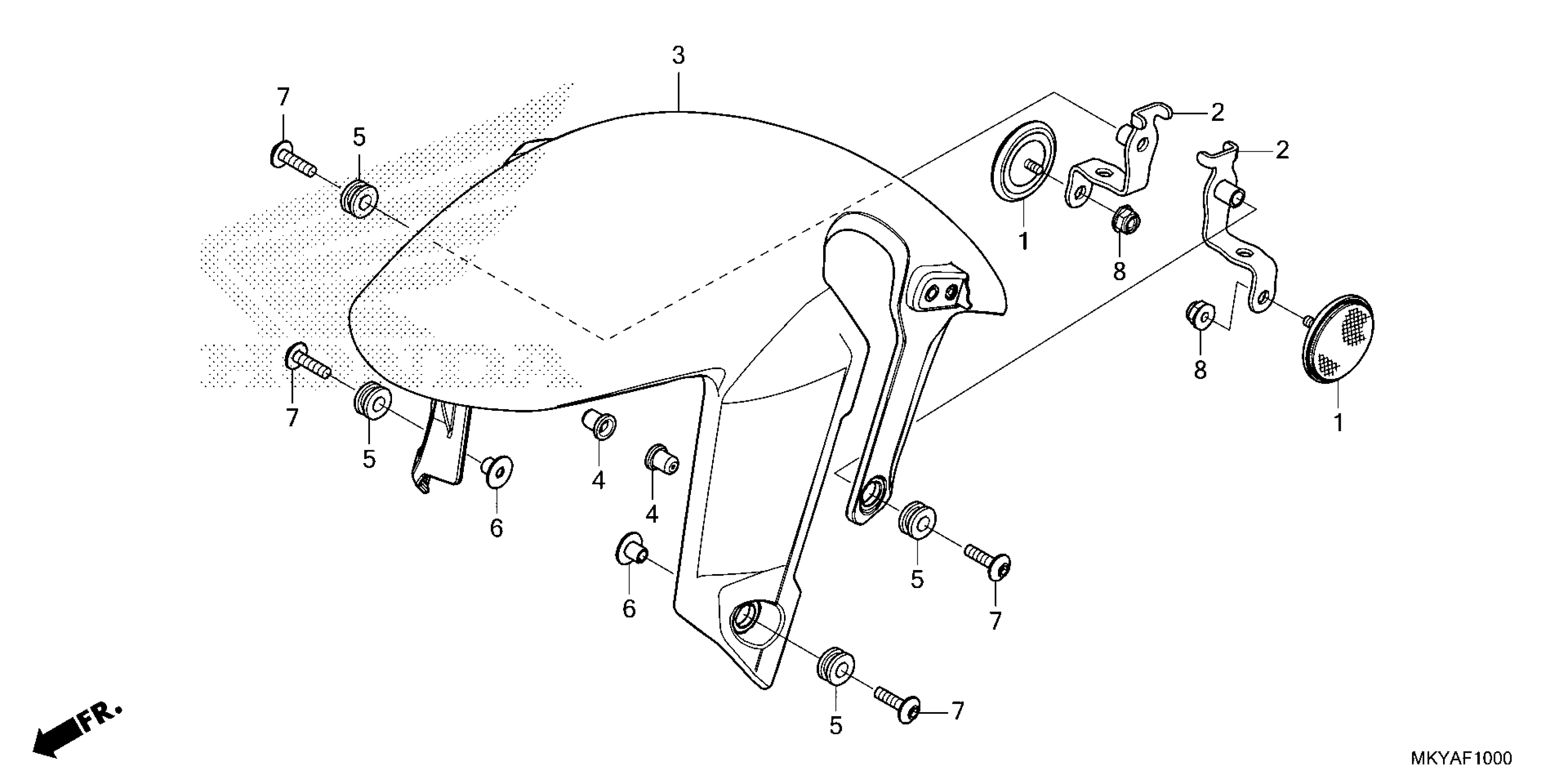

Honda CB650RACAC (24) MOTORCYCLE, THA, VIN# MLHRH165-R5000001 TO MLHRH165-R5099999 FRONT FENDER Diagram

#

Description

Price

1

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$8.74

2

STAY, FR. REFLECTOR

61105-MKN-D50

$4.97

3

FENDER SET, FR. (TYPE1) (WL)

61110-MKN-D50ZC

$59.32

4

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.33

5

RUBBER, RR. FENDER CUSHION (FR.)

80101-165-000

$3.48

6

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$3.80

7

SCREW, PAN (6X22)

90130-KYJ-900

$0.75

8

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.26
