Description

Price

1

CRANKCASE SET

11000-MKY-E80

$1,068.31

2

ORIFICE (1.2MM)

11104-MJE-D00

$2.43

3

SUB-HARNESS, OIL PRESSURE

32102-MKN-D10

$7.03

4

STAY, HARNESS CLIP

32159-MJE-D00

$1.00

5

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MEH-661

$42.44

6

SWITCH ASSY., NEUTRAL

35600-MKF-D41

$19.99

7

SENSOR ASSY., CRANK

37500-K0Z-D11

$25.40

8

O-RING

37501-K2Y-J01

$0.91

9

SENSOR ASSY., SPEED (TDK-EPC)

37700-MJE-D01

$23.72

10

SENSOR (350DEG)

38800-MKY-E21

$67.06

11

BOLT-WASHER (4X8) (DENSO)

90002-PA6-003

$5.74

12

BOLT, UBS (8X98)

90004-MKY-E21

$1.56

13

BOLT, SOCKET (8X12)

90010-MEL-000

$1.75

14

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.66

15

BOLT, FLANGE (6X16)

90026-GHB-640

$1.99

16

BOLT, SEALING (22MM)

90048-MFL-000

$8.78

17

BOLT, FLANGE (6X14)

90101-MCZ-D00

$1.38

18

WASHER, NEUTRAL

90443-MJ6-000

$1.78

19

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

20

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.10

21

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.63

22

O-RING (16.5X2.5)

91310-MGE-D01

$4.44

23

NUT, FLANGE (4MM)

94050-04000

$1.22

24

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.63

25

BOLT, FLANGE (6X35)

95701-06035-00

$1.88

26

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$2.75

27

BOLT, FLANGE (8X45)

95701-08045-00

$1.35

28

BOLT, FLANGE (10X75)

95701-10075-00

$2.25

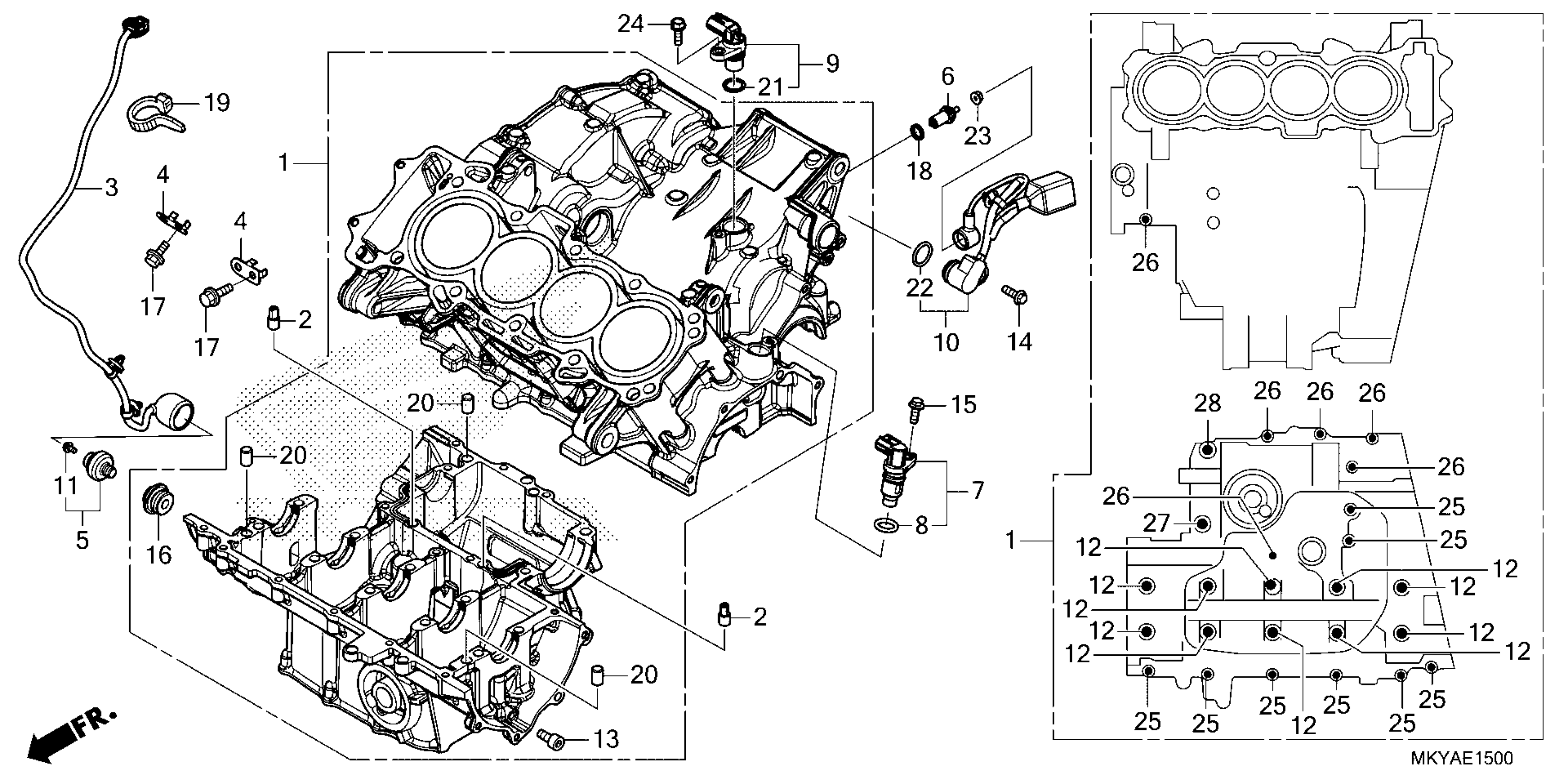

Honda CB650RACAC (24) MOTORCYCLE, THA, VIN# MLHRH165-R5000001 TO MLHRH165-R5099999 CRANKCASE Diagram
