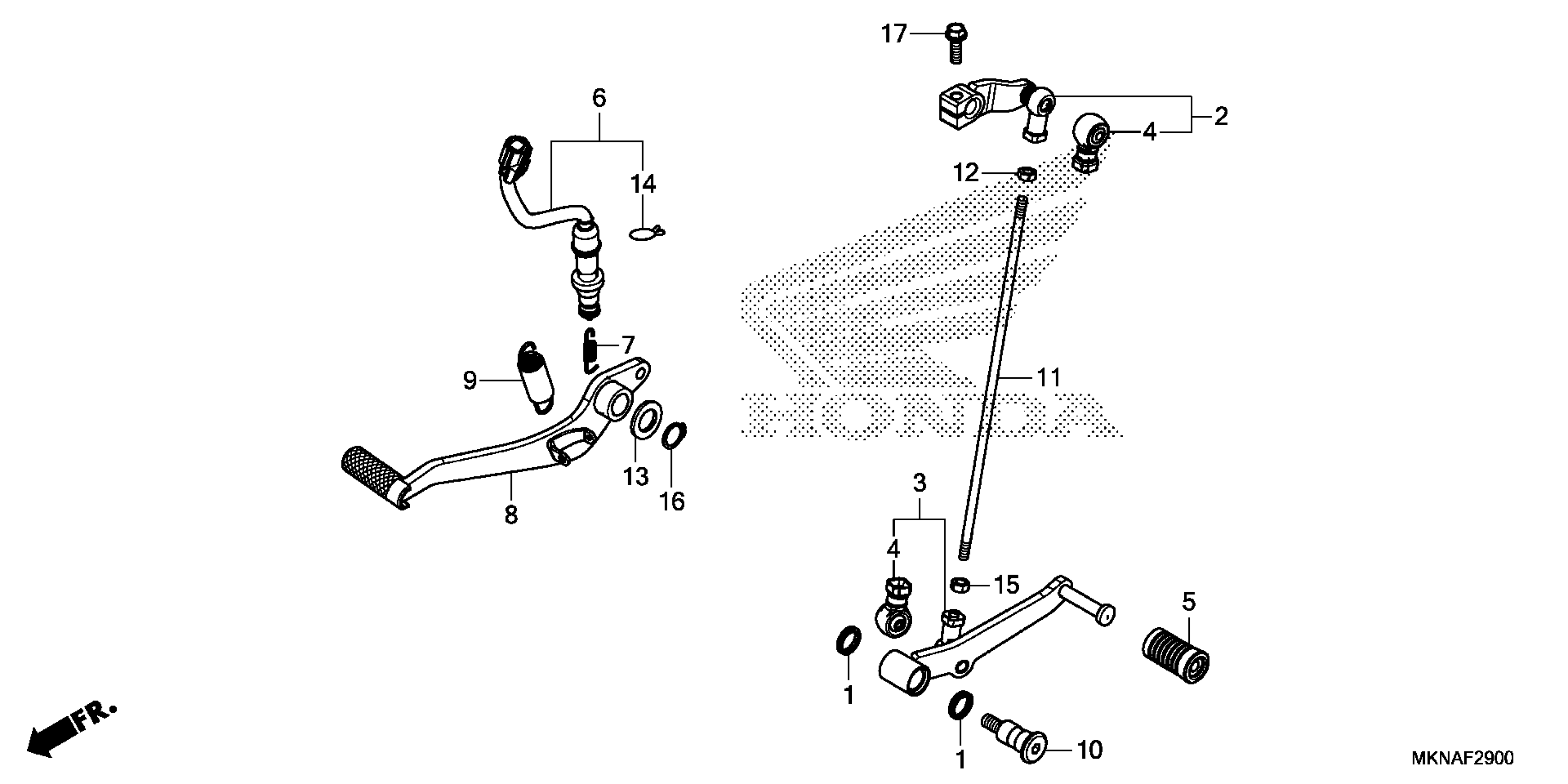

Honda CB650RAC (20) MOTORCYCLE, THA, VIN# MLHRH021-L5100001 PEDAL Diagram

RUBBER, DUST SEAL

24706-MK3-770

$4.48

ARM, GEARSHIFT

24710-MKN-D50

$41.72

PEDAL, GEARSHIFT

24720-MKN-D50

$42.95

COVER, DUST

24724-MBW-D21

$6.98

RUBBER, CHANGE PEDAL

24781-KSP-860

$7.68

SWITCH ASSY., RR. STOP

35350-MKN-D51

$21.51

SPRING, STOP SWITCH

35357-HP0-A00

$2.56

PEDAL, BRAKE (COO) This part replaces 46500-MJE-D00.

46500-MJE-305

$42.18

PEDAL, BRAKE (COO)

46500-MJE-305

$42.18

SPRING ASSY., BRAKE PEDAL

46513-KYJ-900

$3.03

BOLT, CHANGE PIVOT

90113-MGZ-J00

$9.50

BOLT, TIE ROD

90165-MGZ-J00

$3.98

NUT, SPECIAL (6MM) (LEFT HAND THREAD)

90301-MGZ-J00

$2.34

WASHER (15.2X25)

90557-230-000

$2.39

CLIP, SWITCH COVER

90651-MGE-641

$1.80

NUT, HEX. (6MM)

94001-06070-0S

$1.49

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
