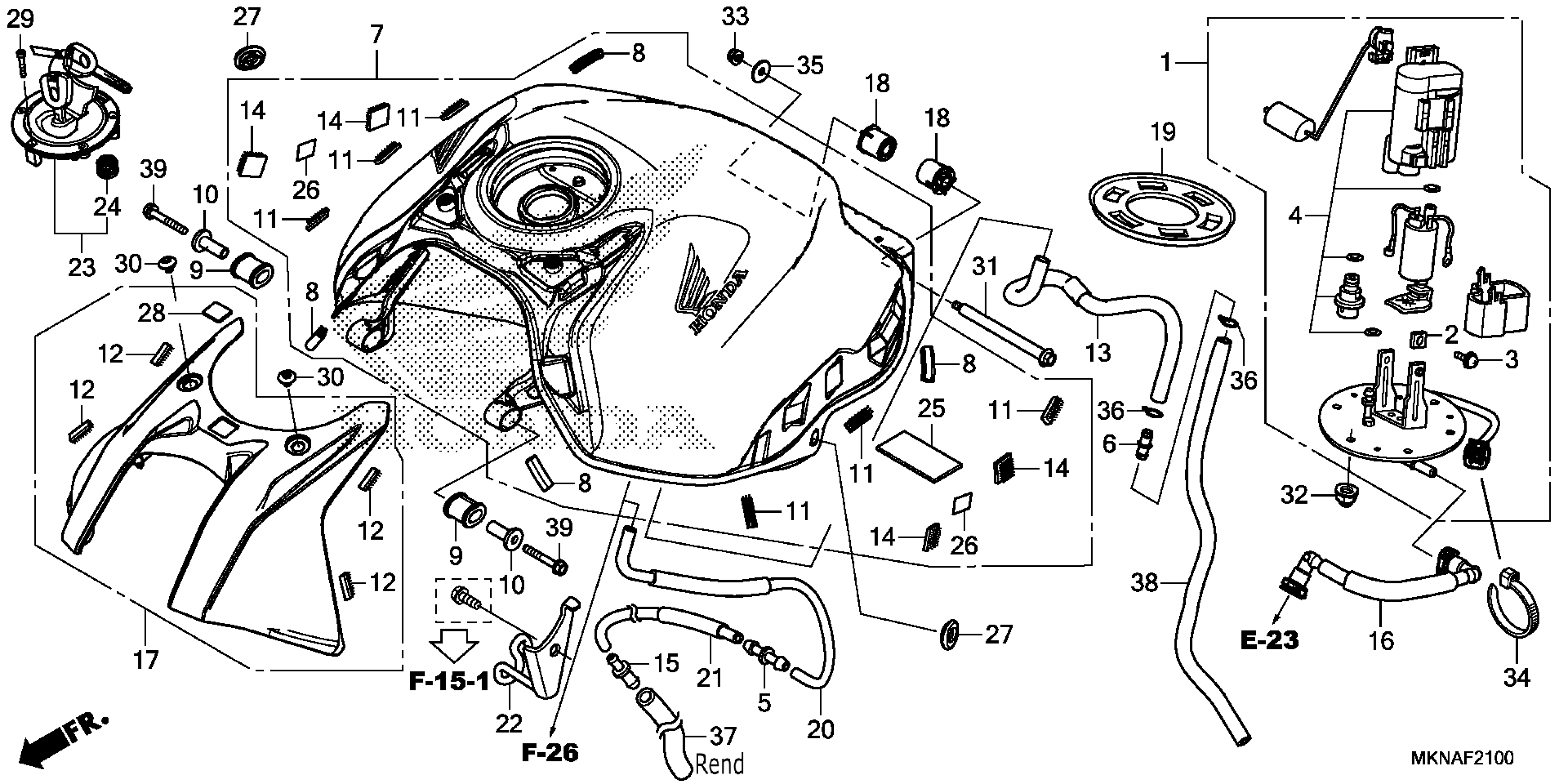

Honda CB650RAC (20) MOTORCYCLE, THA, VIN# MLHRH021-L5100001 FUEL TANK Diagram

PUMP ASSY., FUEL (MSDS)

16700-MKN-D51

$497.96

STOPPER

16711-MGS-D31

$4.47

SCREW (4X6.6)

16712-MGS-D31

$1.74

FILTER ASSY., FUEL This part replaces 16730-MKA-D82.

16730-MKT-D01

$38.84

FILTER ASSY., FUEL This part replaces 16730-MKA-D83.

16730-MKT-D01

$38.84

FILTER ASSY., FUEL

16730-MKT-D01

$38.84

JOINT, BREATHER TUBE

17359-419-670

$1.90

TANK ASSY., FUEL (TYPE1) (WL)

17500-MKN-D50ZD

$824.04

TRIM, FUEL TANK *NH1* (BLACK)

17516-KCZ-000ZB

$1.87

RUBBER, FR. TANK MOUNTING

17534-MKN-D50

$2.47

COLLAR

17538-KZZ-900

$2.16

FASTENER A, DUAL LOCK (8X25)

17540-MJE-D00

$1.40

FASTENER C, DUAL LOCK (8X25)

17541-MJE-D00

$1.22

TUBE, DRAIN

17543-MJE-D00

$5.29

FASTENER F, DUAL LOCK (20X20)

17543-MJE-DB0

$2.29

HOSE, FUEL FEED

17570-MJE-D01

$55.22

COVER ASSY., FR. FUEL TANK *R381C* (CANDY CHROMOSPHERE RED)

17570-MKN-D50ZA

$64.79

CUSHION, RR. FUEL TANK

17572-MJE-D00

$2.15

GASKET, BASE

17574-MGS-D30

$22.44

CAP COMP This part replaces 17620-MJE-D02.

17620-MJE-D04

$205.01

SEAL, BREATHER This part replaces 17621-MGP-D61.

17621-MGP-D62

$4.90

SEAL, BREATHER

17621-MGP-D62

$4.90

FILM, PROTECTOR

50173-KWT-700

$3.79

FILM B, PROTECTOR

77227-KVK-900

$1.57

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$0.88

SCREW, PAN (6X8)

90130-MKN-D50

$1.26

BOLT, HINGE (10X102.4)

90135-MJE-D00

$2.74

NUT, CAP (6MM)

90201-415-000

$1.99

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.40

WASHER, PLAIN (6MM)

94103-06800

$0.72

CLIP, TUBE (B12.5)

95002-02130

$1.06

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$27.67

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.74
