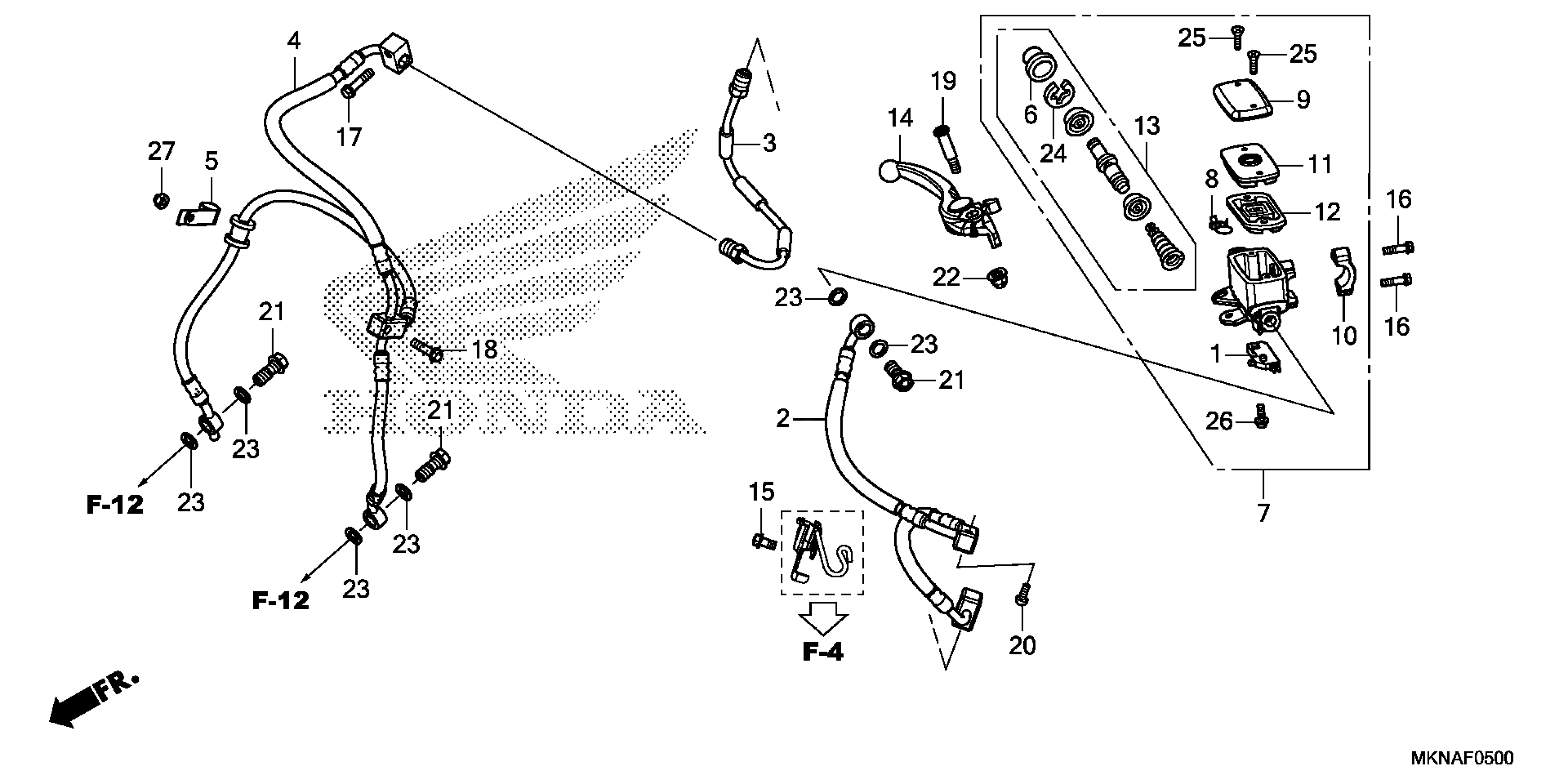

Honda CB650RAC (20) MOTORCYCLE, THA, VIN# MLHRH021-L5100001 FRONT BRAKE MASTER CYLINDER (1) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

HOSE A, FR. BRAKE

45124-MKN-D51

$64.63

3

PIPE, FR. BRAKE

45125-MKN-L40

$37.72

4

HOSE D, FR. BRAKE

45127-MKN-D51

$125.68

5

CLAMP, FR. BRAKE HOSE

45132-MKN-D50

$3.35

6

BOOT

45504-410-003

$11.17

7

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MGH-641

$275.00

8

PROTECTOR

45512-MA6-006

$4.09

9

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

10

HOLDER, MASTER CYLINDER

45517-166-006

$12.44

11

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

12

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

13

MASTER CYLINDER SET

45530-MA4-671

$43.86

14

LEVER ASSY., R. HANDLE (COO) This part replaces 53170-MJE-D01.

53170-MJE-305

$48.43

14

LEVER ASSY., R. HANDLE (COO)

53170-MJE-305

$48.43

15

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.15

16

BOLT, FLANGE (6X22)

90013-GHB-660

$2.15

17

BOLT, FLANGE (6X25)

90013-GHB-670

$2.15

18

BOLT, FLANGE (6X23.5)

90113-MKN-D50

$1.13

19

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

20

SCREW, PAN (6X14)

90125-MKN-D50

$1.24

21

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

22

NUT, CAP (6MM)

90202-KCW-870

$2.69

23

WASHER, OIL BOLT

90545-300-000

$6.56

24

CIRCLIP

90651-MA5-671

$2.38

25

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

25

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

26

SCREW-WASHER (4X12)

93893-04012-07

$1.24

26

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

27

NUT, CAP (6MM)

94021-06070-0S

$1.50
