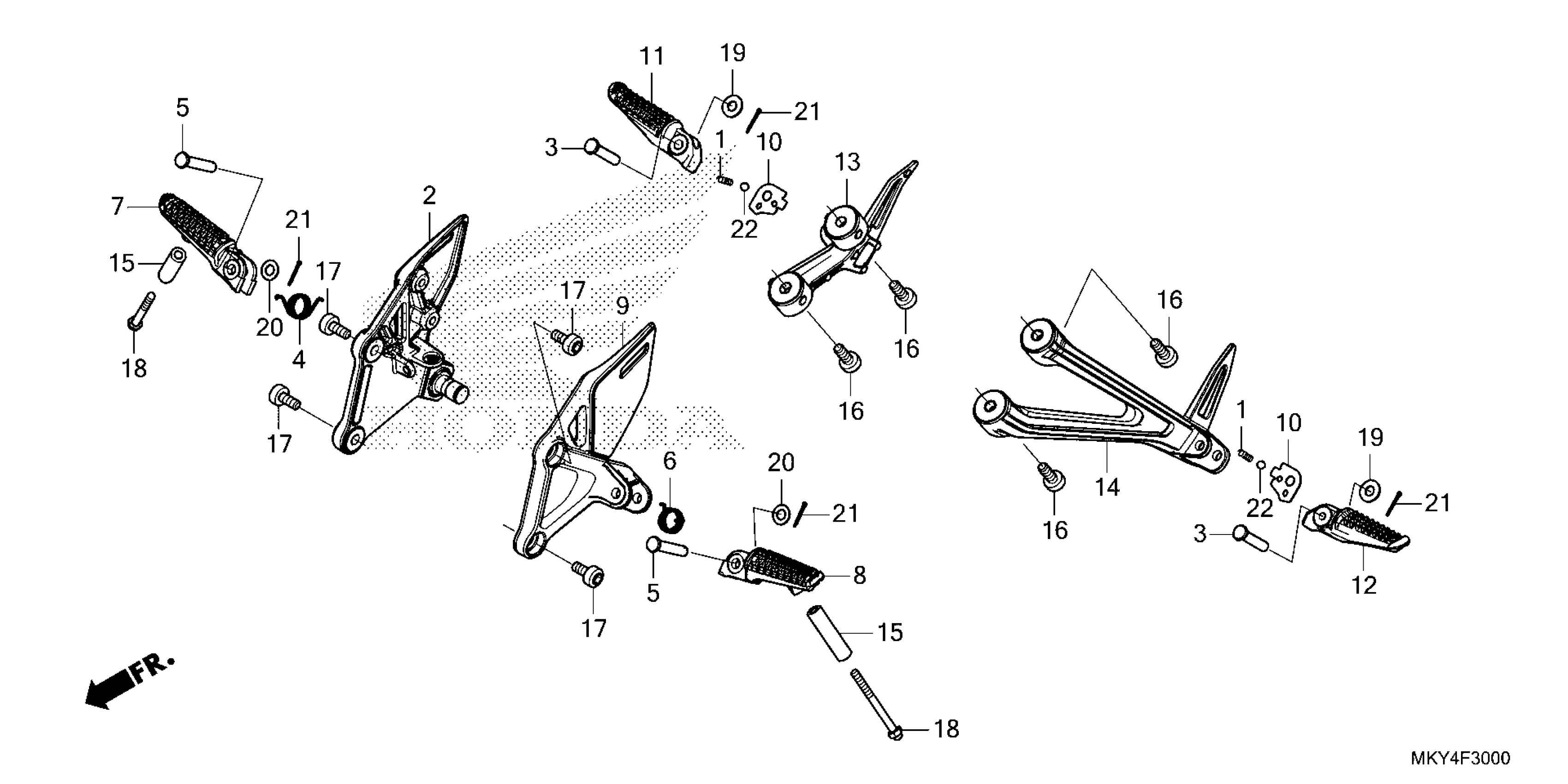

Honda CB650RAAC (23) MOTORCYCLE, THA, VIN# MLHRH025-P5400001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

HOLDER, R. MAIN STEP

50600-MKN-D50

$35.23

3

PIN, STEP BAR JOINT

50603-033-010

$2.98

4

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.07

5

PIN, STEP BAR

50639-ML0-010

Unavailable

6

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.07

7

ARM, R. MAIN STEP

50660-MKN-D50

$12.41

8

ARM, L. MAIN STEP

50665-MKN-D50

$12.41

9

HOLDER, L. MAIN STEP

50700-MKN-D50

$29.30

10

PLATE, PILLION STEP CLICK

50718-MN8-000

$2.26

11

ARM, R. PILLION STEP

50720-K94-T00

$10.53

12

ARM, L. PILLION STEP

50730-K94-T00

$10.53

13

HOLDER, R. PILLION STEP

50750-MKN-D50

$31.97

14

HOLDER, L. PILLION STEP

50760-MKN-D50

$31.97

15

COLLAR, STEP (LOWER)

51486-MKN-D50

$2.87

16

BOLT, SOCKET (8X22)

90116-MGZ-J00

$0.87

17

BOLT, SOCKET (8X18)

90116-MJE-D00

$2.75

18

BOLT, HEX. CAP (6X60)

92501-06060-0A

$1.09

19

WASHER, PLAIN (8MM)

94101-08000

$0.75

20

WASHER, PLAIN (8MM)

94102-08800

$0.86

21

PIN, COTTER (2.0X15)

94201-20150

$0.94

22

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
