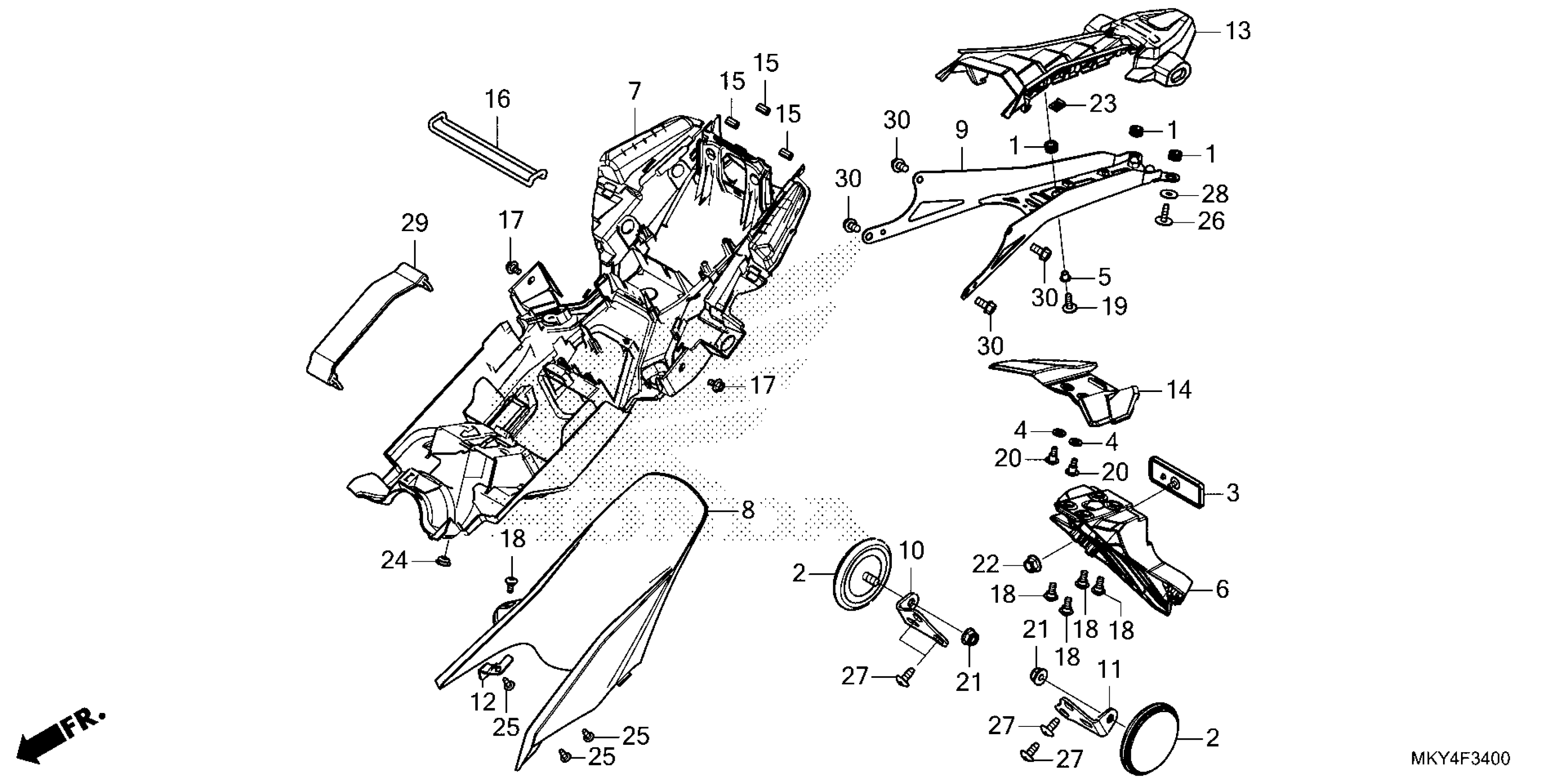

Honda CB650RAAC (23) MOTORCYCLE, THA, VIN# MLHRH025-P5400001 REAR FENDER Diagram

RUBBER, MOUNT

19639-MKY-D50

$2.26

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

REFLECTOR, REFLEX

33741-KPL-902

$7.58

RUBBER B, MOUNTING

61106-KW6-840

$1.54

COLLAR, RR. FENDER

80101-MFJ-D00

$3.78

FENDER A, RR.

80101-MKY-D50

$7.67

FENDER B, RR.

80102-MKY-D50

$23.49

FENDER C, RR.

80103-MKN-D50

$10.95

STAY COMP, RR.

80103-MKY-DP0

$71.44

STAY, R. REFLECTOR

80104-MKY-L50

$16.38

STAY, L. REFLECTOR

80105-MKY-L50

$25.62

STAY, RR. FENDER C

80106-MKN-D50

$4.13

COVER SET, RR. FENDER STAY (UPPER) (TYPE1) (WL)

80150-MKY-D50ZA

$7.02

COVER, RR. FENDER STAY (LOWER)

80161-MKY-D50

$7.66

RUBBER, TAIL COVER

83515-KPH-700

$2.56

BAND, TOOL

89012-KZL-930

$1.49

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

SCREW, SPECIAL (6X14)

90127-MKN-D50

$1.49

SCREW, PAN (5X16)

90133-MKN-D50

$1.49

SCREW, PAN (5X14)

90134-MKY-D50

$1.49

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

NUT, U (5MM)

90301-KWN-901

$1.49

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

PLUG, HOLE

90852-KPP-T00

$1.66

SCREW, TAPPING (4X12)

93903-24380

$1.49

SCREW, TAPPING (4X16)

93903-24480

$1.49

SCREW, TAPPING (5X12)

93903-25280

$1.49

WASHER, PLAIN (4MM)

94103-04700

$1.49

BAND B2, BATTERY

95012-13001

$5.28

BOLT, FLANGE (8X16)

95701-08016-08

$1.80
