Description

Price

1

FORK ASSY., R. FR.

51400-MKY-DN1

$433.74

2

SPRING, R. FR.

51401-MKY-D51

$24.46

3

COLLAR, R. SPRING

51402-MKY-D51

$9.13

4

TUBE (OUTER)

51410-MKN-D51

$230.75

5

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.66

6

SPRING, R. REBOUND

51412-MKY-D51

$2.49

7

BUSH, GUIDE

51414-MFJ-A51

$6.75

8

BUSH, SLIDER

51415-MFJ-A51

$6.75

9

SEAT, STOPPER

51419-K94-T01

$8.42

10

SEAT, R. STOPPER

51419-MKY-D51

$5.84

11

PIPE, R. SLIDE

51425-MKY-D51

$258.81

12

ROD, PISTON

51426-MKY-D51

$53.17

13

RING B, PISTON

51435-MKY-D51

$1.33

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.20

15

BOLT COMP, FR. FORK

51450-MKY-DP1

$56.57

16

NUT, HEX.

51451-MKY-D51

$12.46

18

CASE, ROD GUIDE

51455-MKY-D51

$39.32

19

RING, STOPPER

51456-K94-T01

$2.03

20

SEAL SET, FR. FORK

51490-MKL-D81

$22.56

21

FORK ASSY., L. FR.

51500-MKY-DN1

$402.23

22

SPRING, L. FR. FORK

51501-MKY-D51

$20.33

23

COLLAR B, SPRING (SHOWA)

51502-MKN-D51

$18.55

24

SPRING, L. REBOUND

51512-MKY-D51

$4.12

25

PIPE, L. SLIDE

51525-MKY-D51

$264.01

26

ROD

51526-MKY-D51

$12.65

27

BOLT (8X45)

90134-MEL-000

$2.80

28

DUST SEAL

91251-MKL-D81

$9.51

29

O-RING (39.7X2.4)

91258-MEE-D01

$1.93

30

RING, PISTON

51437-MKY-D51

$1.26

31

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.51

32

CIRCLIP (INNER)

51447-MB4-003

$4.33

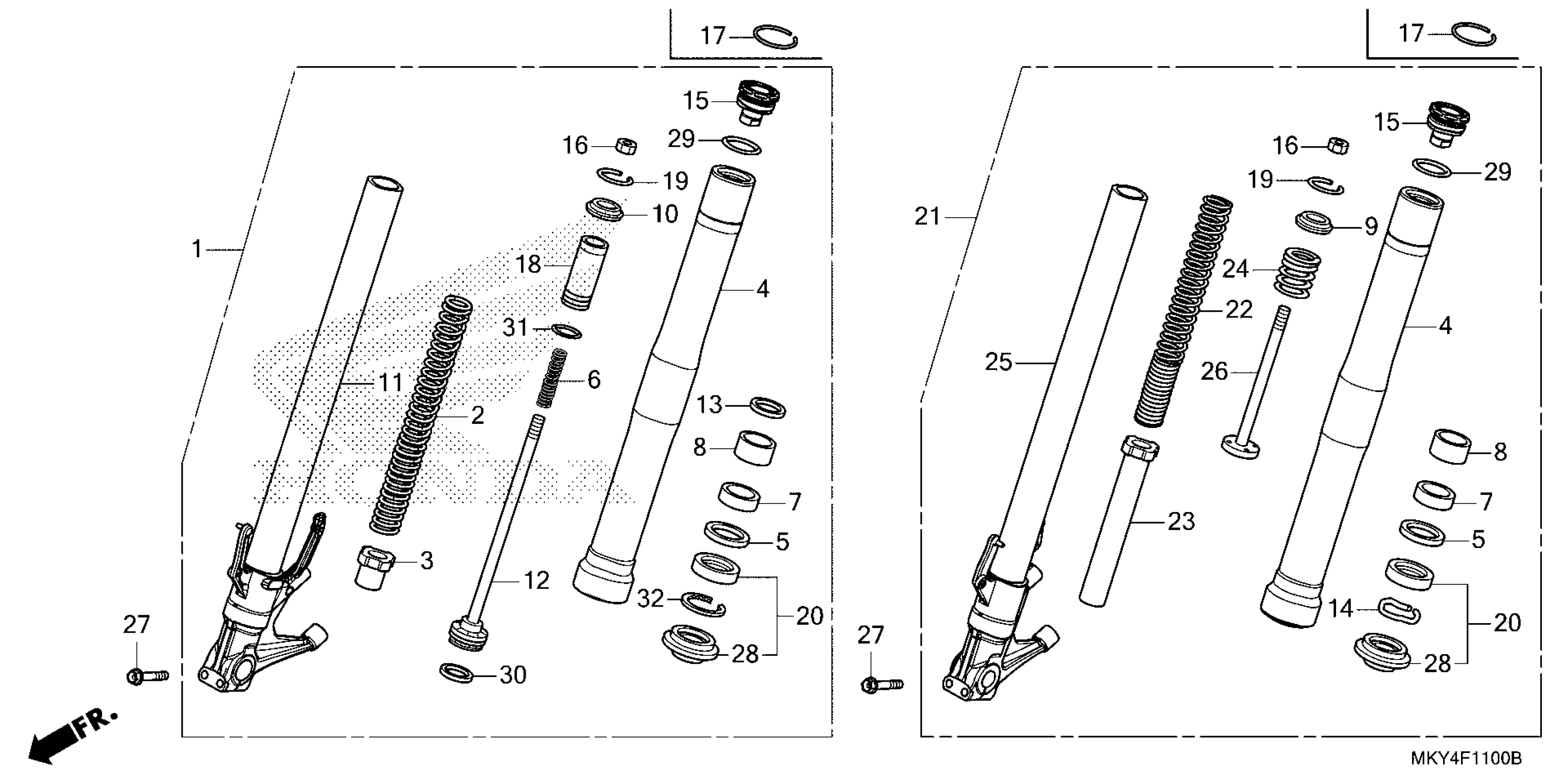

Honda CB650RAAC (23) MOTORCYCLE, THA, VIN# MLHRH025-P5400001 FRONT FORK Diagram
