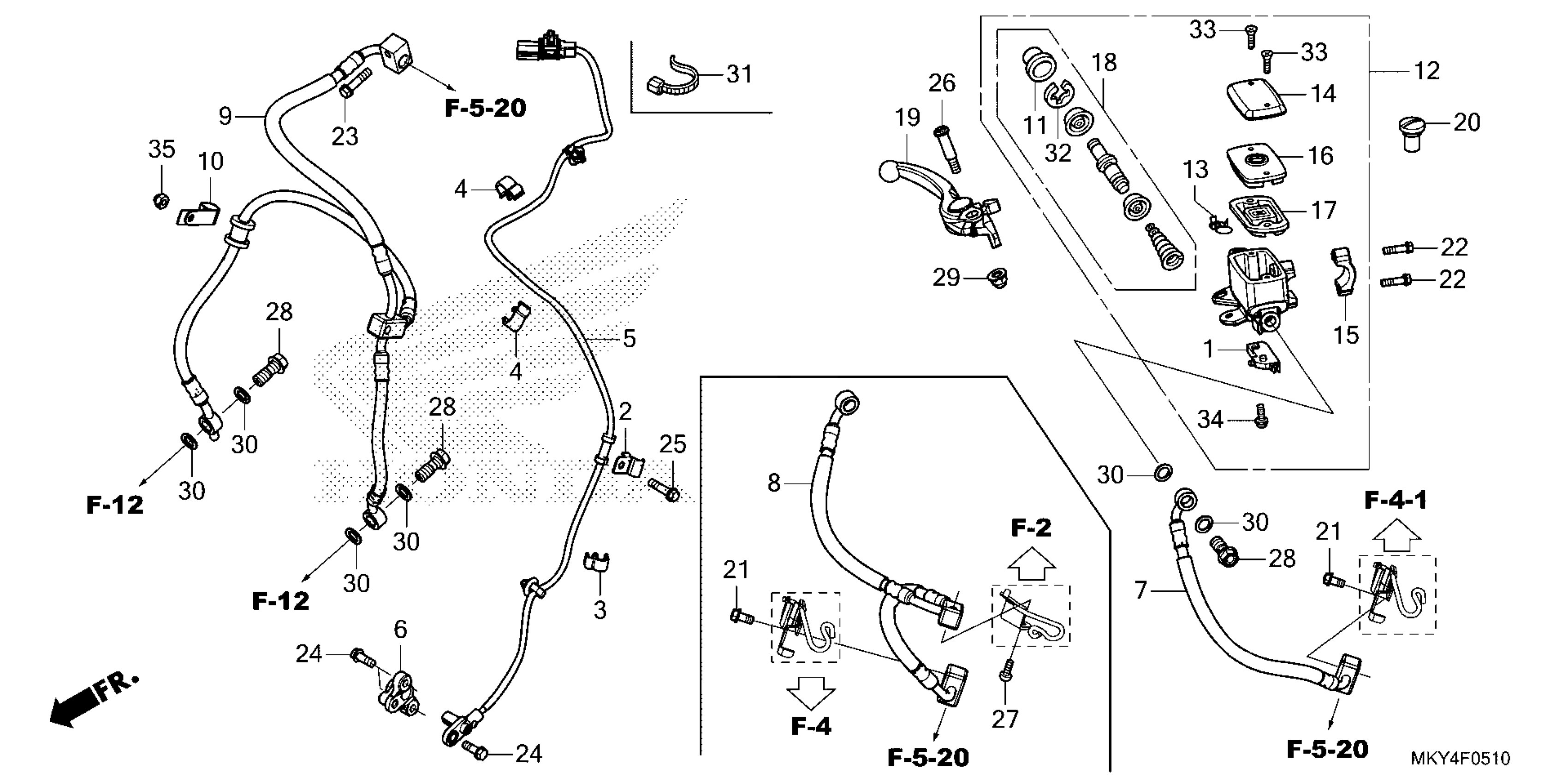

Honda CB650RAAC (23) MOTORCYCLE, THA, VIN# MLHRH025-P5400001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

CLAMP B, SENSOR WIRE

38514-MKH-D00

$1.66

3

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$2.87

4

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.51

5

SENSOR, FR. WHEEL SPEED

38520-MKN-D51

$27.25

6

GUARD, ABS SENSOR

38521-MKN-D50

$12.90

8

HOSE A, FR. BRAKE

45124-MKY-D51

$62.76

9

HOSE D, FR. BRAKE

45127-MKN-D51

$125.68

10

CLAMP, FR. BRAKE HOSE

45132-MKN-D50

$3.35

11

BOOT

45504-410-003

$11.17

12

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MGH-641

$275.00

13

PROTECTOR

45512-MA6-006

$4.09

14

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

15

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

16

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

17

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

18

MASTER CYLINDER SET

45530-MA4-671

$43.86

19

LEVER ASSY., R. HANDLE (COO) This part replaces 53170-MJE-D01.

53170-MJE-305

$48.43

19

LEVER ASSY., R. HANDLE (COO)

53170-MJE-305

$48.43

21

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.15

22

BOLT, FLANGE (6X22)

90013-GHB-660

$2.15

23

BOLT, FLANGE (6X25)

90013-GHB-670

$2.15

24

BOLT, FLANGE (6X16)

90111-MKN-D50

$1.10

25

BOLT, FLANGE (6X23.5)

90113-MKN-D50

$1.13

26

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

27

SCREW, PAN (6X14)

90125-MKN-D50

$1.24

28

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

29

NUT, CAP (6MM)

90202-KCW-870

$2.69

30

WASHER, OIL BOLT

90545-300-000

$5.79

31

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

32

CIRCLIP

90651-MA5-671

$2.38

33

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

33

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

34

SCREW-WASHER (4X12)

93893-04012-07

$1.32

34

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

35

NUT, CAP (6MM)

94021-06070-0S

$1.60
