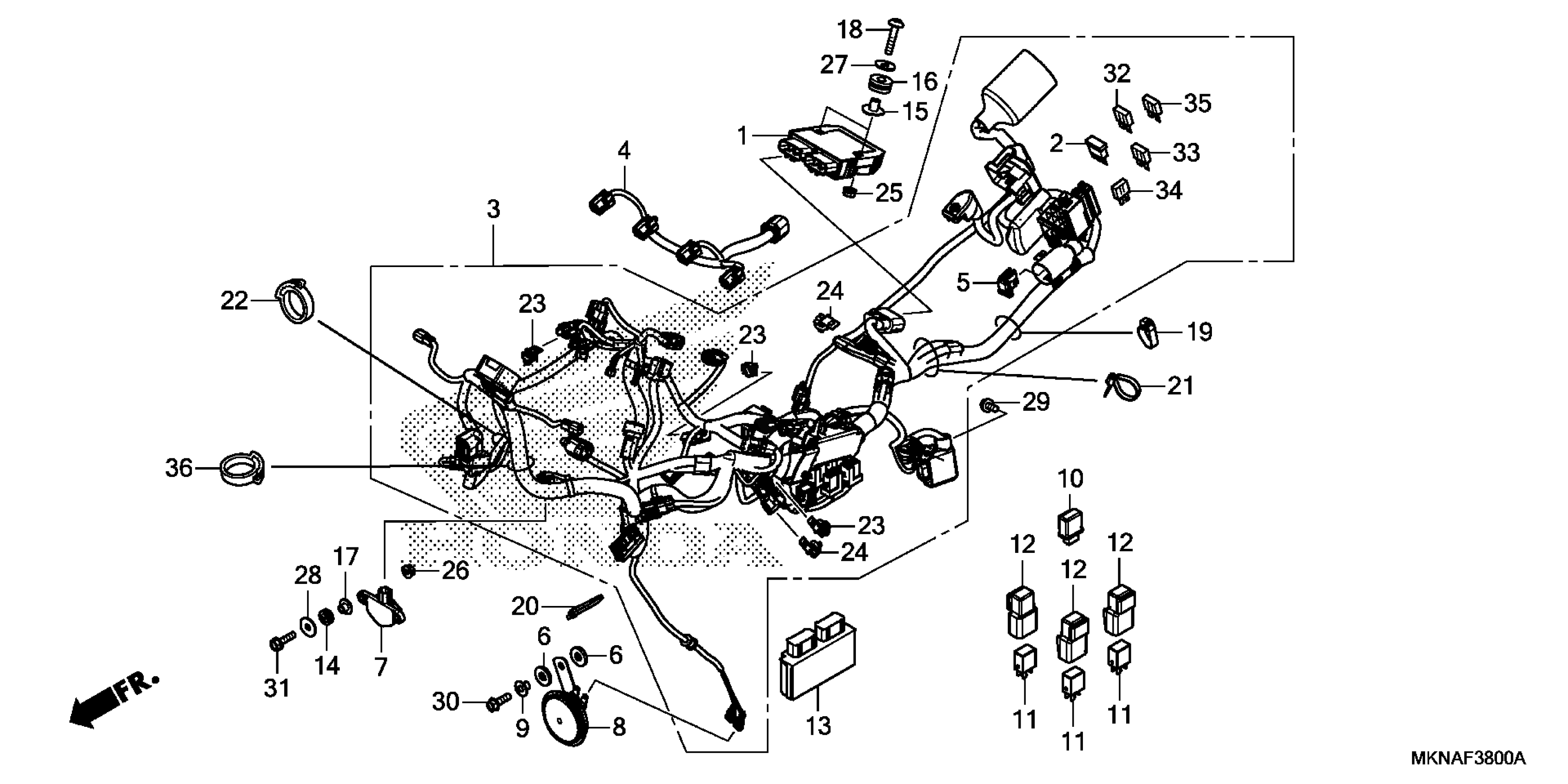

Honda CB650RAAC (20) MOTORCYCLE, THA, VIN# MLHRH025-L5100001 WIRE HARNESS Diagram

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$194.27

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MKN-L51

$1,169.28

SUB-HARNESS, INJECTOR

32104-MJE-D00

$25.03

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.51

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$150.05

HORN (HIGH)

38110-KPP-T01

$36.07

COLLAR, HORN SETTING

38117-KFE-701

$1.49

RELAY, TURN SIGNAL

38301-KZZ-J01

$56.87

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$10.76

SUSPENSION, POWER RELAY

38506-MCS-G00

$5.86

PGM-FI UNIT

38770-MKN-L51

$383.03

RUBBER, SIDE COVER

64535-MFJ-D00

$1.93

COLLAR, PILLION SEAT MOUNTING

77326-MJS-J70

$4.05

RUBBER, PILLION SEAT MOUNTING

77327-MJS-J70

$4.48

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.36

SCREW, PAN (6X32)

90130-MJE-D40

$1.49

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.12

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

NUT, FLANGE (6MM)

94050-06070

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (6MM)

94103-06700

$1.49

WASHER, PLAIN (6MM)

94103-06800

$1.49

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

FUSE F (7.5A) (MINI)

98200-40750

$1.49

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (20A)

98200-42000

$1.49

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56
