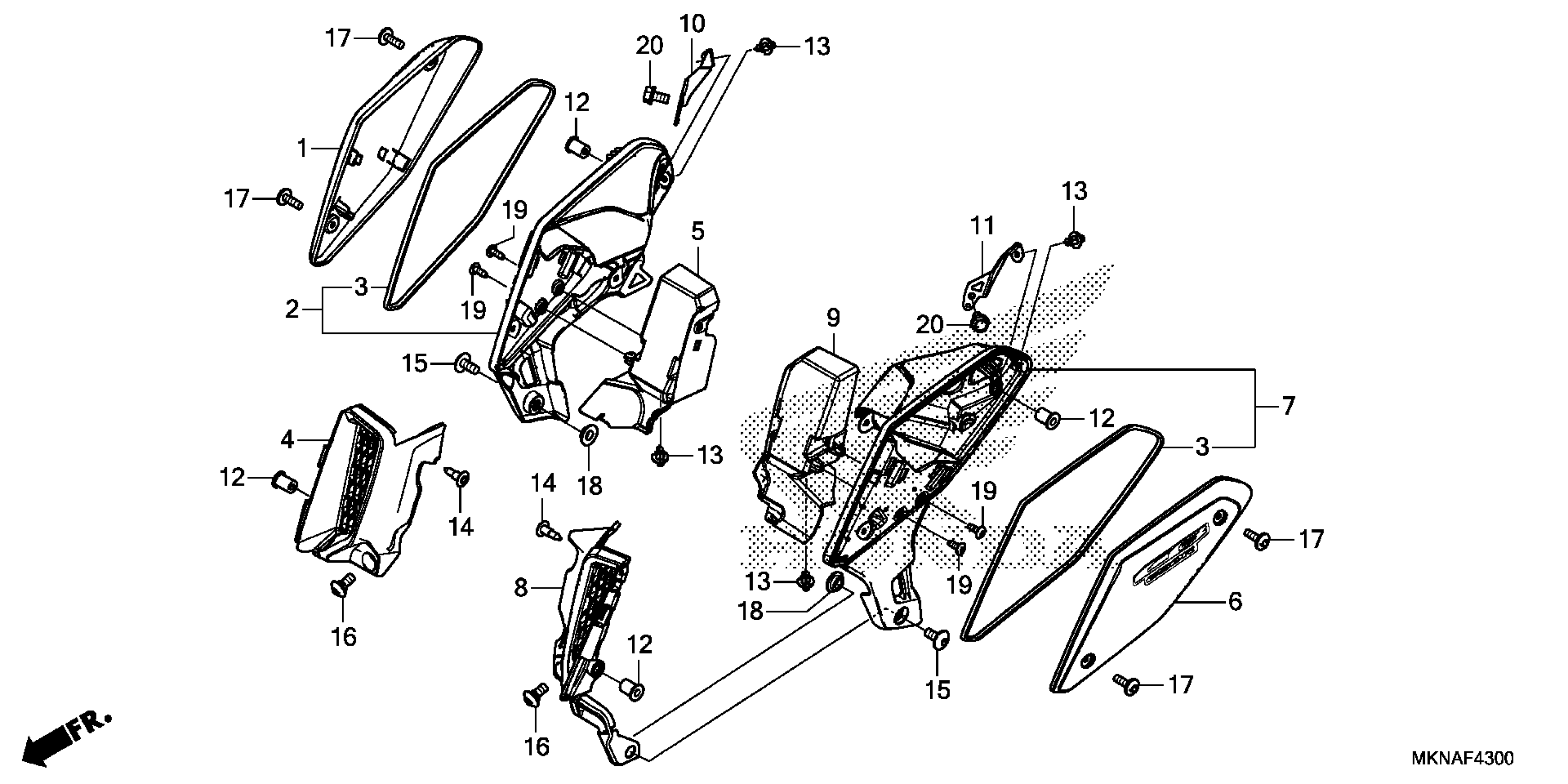

Honda CB650RAAC (20) MOTORCYCLE, THA, VIN# MLHRH025-L5100001 SHROUD Diagram

Description

Price

SHROUD SET A, R. (TYPE1) (WL)

64310-MKN-D50ZA

$42.47

SHROUD ASSY. B, R.

64320-MKN-D50

$26.15

SEAL, SHROUD

64322-MKN-D50

$2.34

SHROUD C, R.

64331-MKN-D50

$8.69

BOX, R. AIR DUCT

64336-MKN-D50

$9.03

SHROUD SET A, L. (TYPE1) (WL)

64410-MKN-D50ZA

$42.47

SHROUD ASSY. B, L.

64420-MKN-D50

$25.56

SHROUD C, L.

64431-MKN-D50

$8.81

BOX, L. AIR DUCT

64436-MKN-D50

$9.14

STAY, R. SHROUD

64650-MKN-D50

$6.26

STAY, L. SHROUD

64660-MKN-D50

$5.70

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

RIVET, PUSH (6MM)

90116-K0A-E11

$1.49

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

SCREW, PAN (6X14)

90125-MKN-D50

$1.49

SCREW, PAN (6X14)

90133-KPP-T00

$1.49

SCREW, PAN (5X16)

90134-MJE-D00

$1.49

COLLAR, MOUNTING

90503-MJE-D40

$2.92

SCREW, TAPPING (4X12)

93903-24380

$1.49

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
