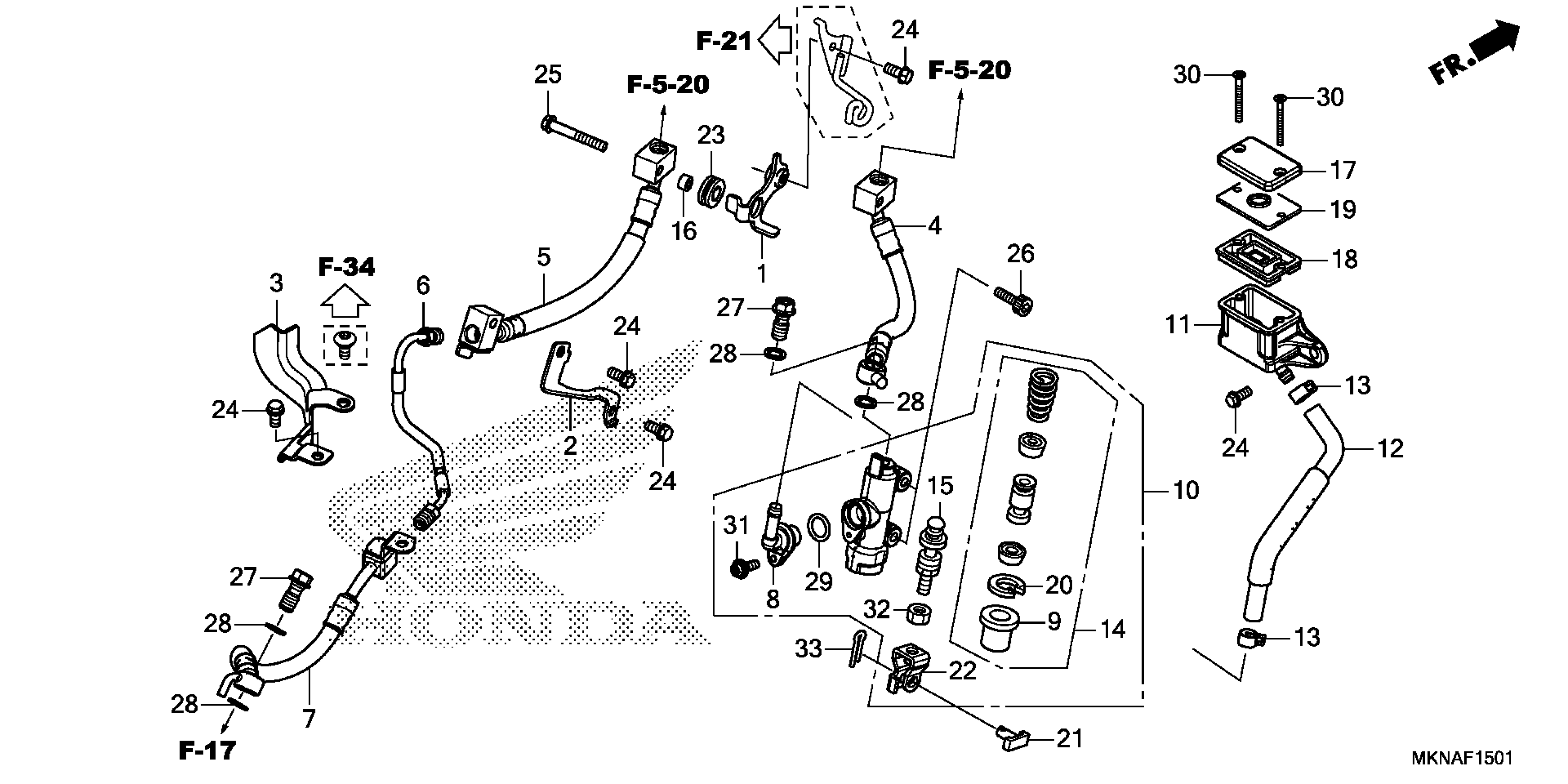

Honda CB650RAAC (20) MOTORCYCLE, THA, VIN# MLHRH025-L5100001 REAR BRAKE MASTER CYLINDER (2) Diagram

STAY A, RR. BRAKE

43160-MKN-D50

$8.49

STAY B, RR. BRAKE

43161-MKN-D50

$5.59

STAY C, RR. BRAKE

43162-MKN-D50

$8.20

HOSE A, RR. BRAKE

43310-MKN-D51

$23.66

HOSE D, RR. BRAKE

43313-MKN-D51

$38.84

PIPE E, RR. BRAKE

43314-MKN-D50

$10.21

HOSE F, RR. BRAKE

43315-MKN-D51

$36.80

CONNECTOR

43503-MR7-006

$14.04

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-MKN-D51

$108.39

CUP, OIL

43511-KV3-831

$23.70

HOSE, RR. BRAKE MASTER CYLINDER

43512-MKN-D51

$15.72

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$46.51

ROD, PUSH

43530-KV3-701

$19.84

COLLAR, BRAKE HOSE STAY

45161-K87-L50

$1.69

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

CIRCLIP

46182-MEL-D21

$1.93

PIN, BRAKE ROD

46503-MFG-D00

$4.48

JOINT, BRAKE ROD

46504-MAL-601

$13.39

GROMMET, MAIN PIPE COVER

64312-KWW-640

$1.49

BOLT, FLANGE (6X14)

90013-GHB-620

$2.33

BOLT, FLANGE (6X40)

90013-GHB-710

$1.49

BOLT, SOCKET (6X20)

90135-MEL-000

$1.62

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW, FLAT (4X40)

93600-04040-1G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (2.0X12)

94201-20120

$1.49
