Description

Price

1

RADIATOR (TOYO)

19010-MKN-L51

$186.81

2

NUT, SETTING (6MM)

19014-KEA-003

$2.95

3

SHROUD

19015-MJE-D01

$18.90

4

FAN, COOLING

19020-MFG-D01

$37.94

5

MOTOR ASSY., FAN

19030-MKN-D51

$108.28

6

CAP, RADIATOR

19037-GEE-710

$27.80

7

LABEL, RADIATOR CAP

19046-PAA-A00

$3.40

8

PETCOCK, DRAIN

19071-MEC-003

$3.41

9

TANK, RADIATOR RESERVE

19101-MJE-D00

$7.00

10

STAY, RESERVE TANK

19102-MJE-D00

$2.72

11

TUBE, RESERVE TANK

19103-MKN-D50

$19.47

12

COVER, RESERVE TANK

19104-MJE-D00

$5.29

13

STAY, RADIATOR (LOWER)

19105-MJE-D00

$7.59

14

CAP ASSY., RESERVE TANK

19106-GET-000

$6.59

15

GUARD, RESERVE TANK HEAT

19106-MJE-DB0

$10.12

16

GASKET, RESERVE TANK

19107-GET-000

$3.58

17

STAY, TUBE CLAMP

19107-MJE-D40

$6.82

18

TUBE, RESERVE TANK OVERFLOW

19108-MJE-D00

$5.82

19

GUARD, RADIATOR HEAT

19126-MKN-D50

$5.16

20

HOSE A, RADIATOR

19501-MJE-D00

$12.47

21

HOSE B, RADIATOR

19502-MJE-D00

$11.57

22

CLIP, WATER HOSE

19511-R9G-004

$6.37

23

CLIP, WIRE HARNESS

32161-393-003

$2.84

24

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$3.83

25

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.31

26

BOLT, FLANGE (6X16)

90013-GHB-630

$2.06

27

SCREW, PAN (6X12)

90106-KRG-000

$2.01

28

BOLT, FLANGE (6MM)

90111-162-000

$2.66

29

BOLT, FLANGE (6X22)

90115-MKN-D50

$1.13

30

BOLT-WASHER (6X12)

90120-GHB-601

$1.78

31

NUT, CLIP (6MM)

90303-MGZ-J40

Unavailable

32

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

33

O-RING (9.8X1.9)

91353-MEC-003

$3.26

34

CLIP, TUBE (B10)

95002-02100

$1.75

35

CLIP, TUBE (C9)

95002-50000

$1.16

36

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

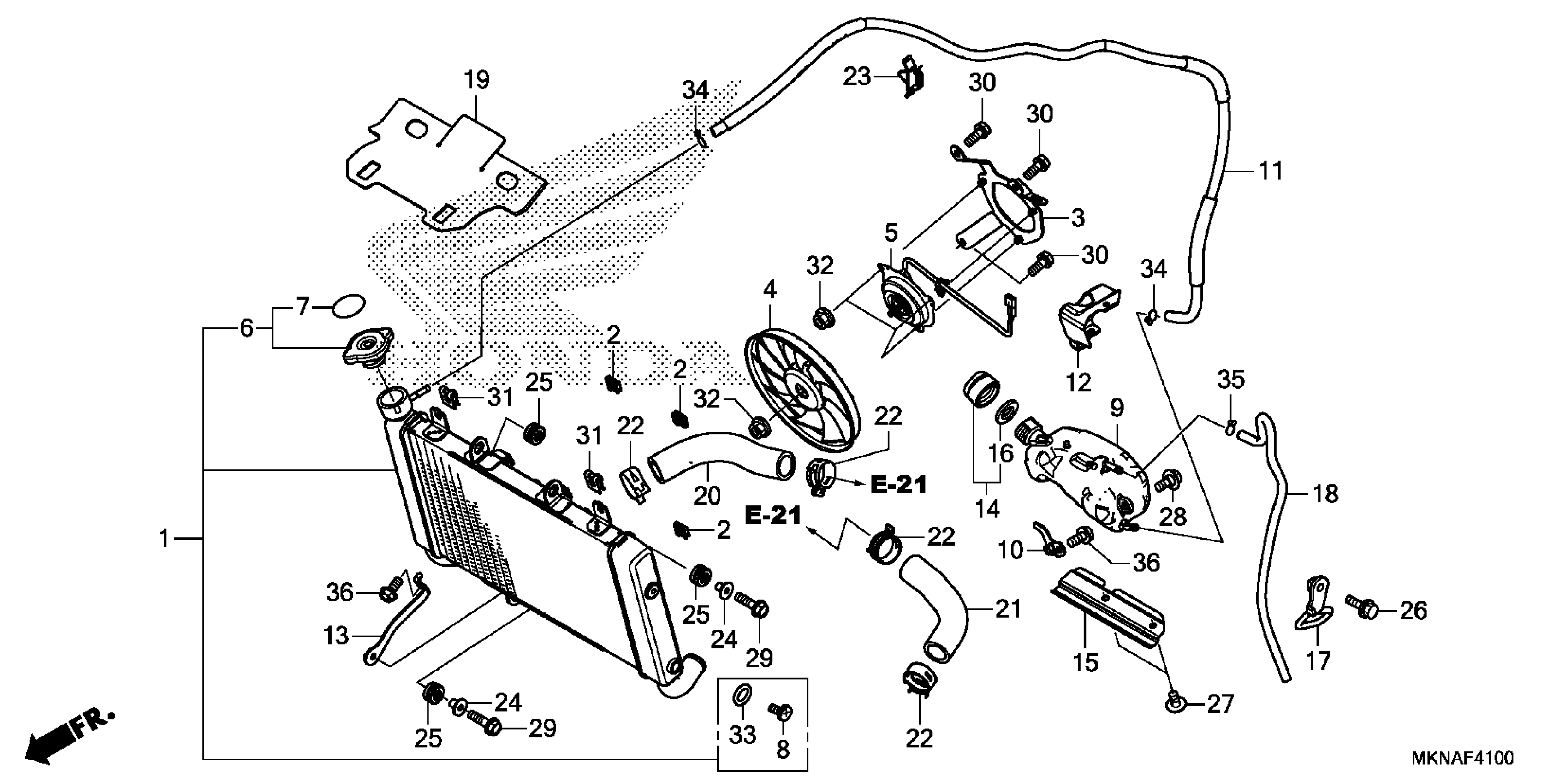

Honda CB650RAAC (20) MOTORCYCLE, THA, VIN# MLHRH025-L5100001 RADIATOR Diagram
