Partiron

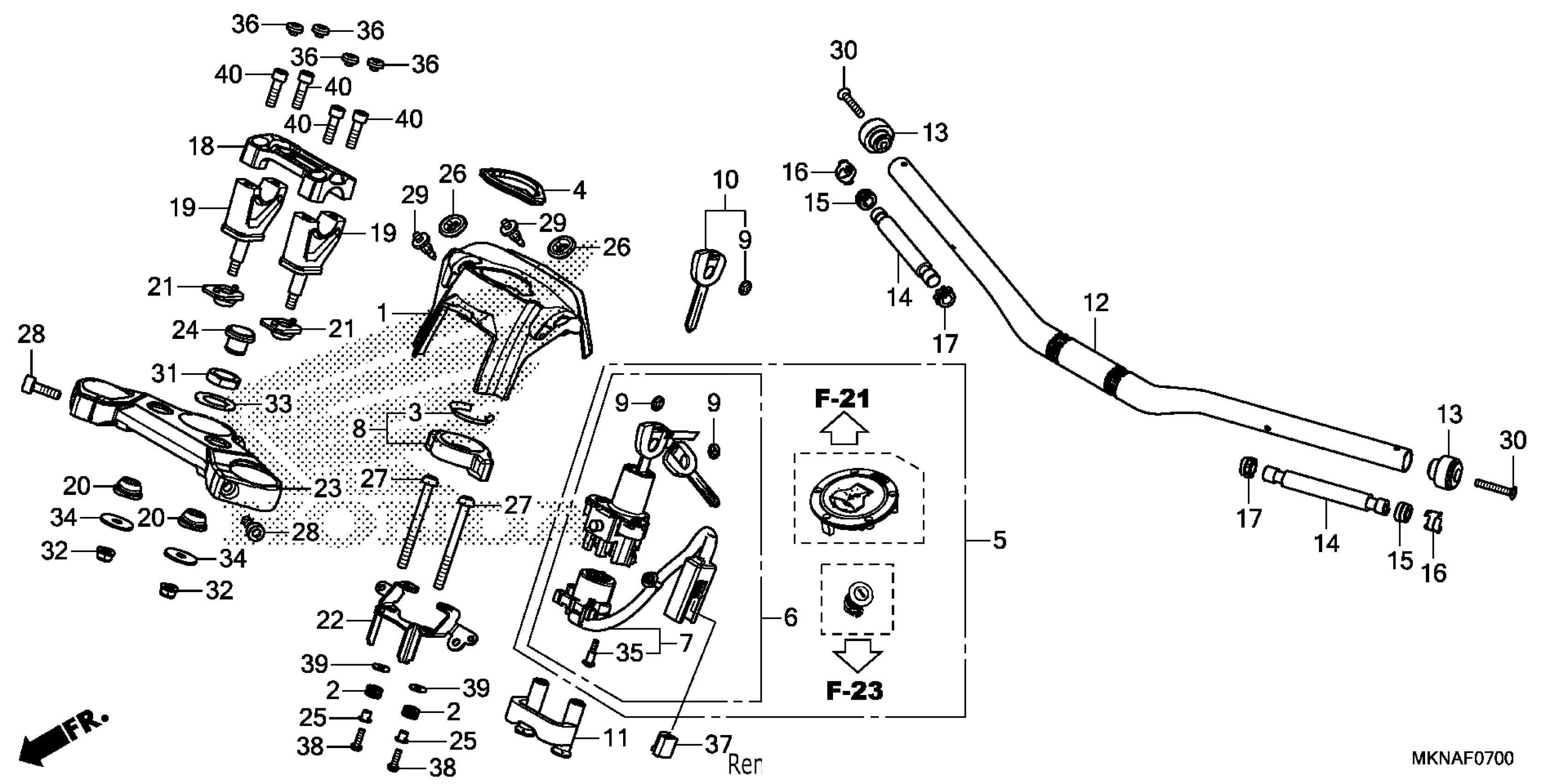

Honda CB650RAAC (20) MOTORCYCLE, THA, VIN# MLHRH025-L5100001 HANDLEBAR@TOP BRIDGE Diagram

#

Description
Price

1

COVER, COMBINATION SWITCH

17575-MKN-D50

$8.49

2

RUBBER, MOUNTING

19639-KEE-630

$19.02

3

SEAL, IGNITION SWITCH

30433-MBW-602

$2.62

4

COVER, RECEIVER UNIT HOLE

30435-MKN-D50

$2.59

5

LOCK SET This part replaces 35010-MKN-L40.

35010-MKN-L42

$233.41

5

LOCK SET This part replaces 35010-MKN-L41.

35010-MKN-L42

$233.41

5

LOCK SET

35010-MKN-L42

$233.41

6

SWITCH ASSY., COMBINATION & LOCK

35100-MKN-L41

$162.84

7

BASE, CONTACT

35101-MKN-D51

$43.04

8

COVER, COMBINATION SWITCH

35106-MKJ-A00

$10.87

9

EMBLEM, KEY | (Optional).

35113-MJE-D00

$20.09

10

KEY, BLANK | (Optional).

35121-MJE-A02

$20.18

11

STAY, KEY MOUNTING

50197-MKN-D50

$35.82

12

HANDLEBAR

53100-MKN-D50

$69.94

13

WEIGHT, HANDLEBAR

53104-MJE-DF0

Unavailable

14

WEIGHT B, HANDLEBAR

53105-MJE-DF0

$6.54

15

RUBBER, HANDLE WEIGHT (B)

53107-MY1-000

$6.69

16

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$5.95

17

RUBBER B, HANDLE WEIGHT

53109-MM5-000

$3.56

18

HOLDER, HANDLE (UPPER)

53131-MKN-D50

$35.05

19

HOLDER, HANDLEBAR (LOWER)

53132-MKN-D50

$32.57

20

RUBBER, HANDLE CUSHION

53136-K94-T00

Unavailable

21

RUBBER, HANDLE CUSHION

53136-MKN-D50

$2.25

22

STAY, RECEIVER UNIT

53190-MKN-D50

$15.81

23

BRIDGE, FORK TOP

53230-MKN-D50

$99.68

24

CAP, STEERING STEM NUT

53232-MJ4-670

$12.33

25

COLLAR, RR. FENDER

80101-MFJ-D00

$3.85

26

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.38

27

BOLT, ONE-WAY (8MM)

90107-MJN-A00

$4.31

28

BOLT, SOCKET (8X28)

90114-MKN-D50

$1.21

29

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

30

SCREW, OVAL (6X40)

90122-MKN-D50

$1.24

31

NUT, STEERING STEM

90304-KGA-900

$2.91

32

NUT, U (8MM)

90304-KPG-901

$0.90

33

WASHER, STEERING STEM

90503-KGA-900

$1.38

34

WASHER, HANDLE HOLDER (LOWER)

90535-K26-900

$2.40

35

SCREW, TAPPING (3X16)

91059-KY2-711

$2.83

36

CAP, SOCKET BOLT (8MM)

91455-KEA-000

$3.56

37

HOLDER, BRACKET (RED)

91554-SM4-003

$7.75

38

SCREW-WASHER (5X18)

93891-05018-08

$1.13

39

WASHER, PLAIN (5MM)

94103-05800

$0.91

40

BOLT, SOCKET (8X28)

96600-08028-08

$1.18
