Description

Price

1

FORK ASSY., R. FR. (SHOWA)

51400-MKN-D51

$634.46

2

SPRING, R. FR.

51401-MKN-D51

$34.81

3

COLLAR, SPRING (SHOWA)

51404-MKN-D51

$24.25

4

STOPPER, SPRING SEAT (SHOWA)

51408-KAE-871

$14.19

5

TUBE (OUTER)

51410-MKN-D51

$234.15

6

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.88

7

SPRING B, REBOUND (SHOWA)

51412-MKN-D51

$4.49

8

BUSH, GUIDE

51414-MFJ-A51

$6.93

9

BUSH, SLIDER

51415-MFJ-A51

$6.93

10

SEAT, STOPPER

51419-K94-T01

$8.54

11

PLATE, CENTERING

51423-K94-T01

$1.91

12

PIPE, R. SLIDE (SHOWA)

51425-MKN-D51

$261.99

13

ROD (SHOWA)

51426-MKN-D51

$32.40

14

DAMPER, FR. (SHOWA)

51430-MKN-D51

$100.31

15

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

16

BOLT, FR. FORK

51450-K94-T01

$58.69

17

NUT, HEX. (10MM)

51451-MAJ-G41

$2.68

18

NUT, LOCK (SHOWA)

51451-MKN-D51

$3.34

19

RING, STOPPER

51456-K94-T01

$2.06

20

SEAL SET, FR. FORK

51490-MKL-D81

$23.08

21

FORK ASSY., L. FR. (SHOWA)

51500-MKN-D51

$552.57

22

SPRING, L. FR.

51501-MKN-D51

$27.09

23

COLLAR B, SPRING (SHOWA)

51502-MKN-D51

$18.82

24

PIPE, L. SLIDE (SHOWA)

51525-MKN-D51

$265.41

25

BOLT, SOCKET (8X22)

90116-088-931

$1.87

26

BOLT (8X45)

90134-MEL-000

$2.80

27

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

28

DUST SEAL

91251-MKL-D81

Unavailable

29

O-RING (39.7X2.4)

91258-MEE-D01

$1.96

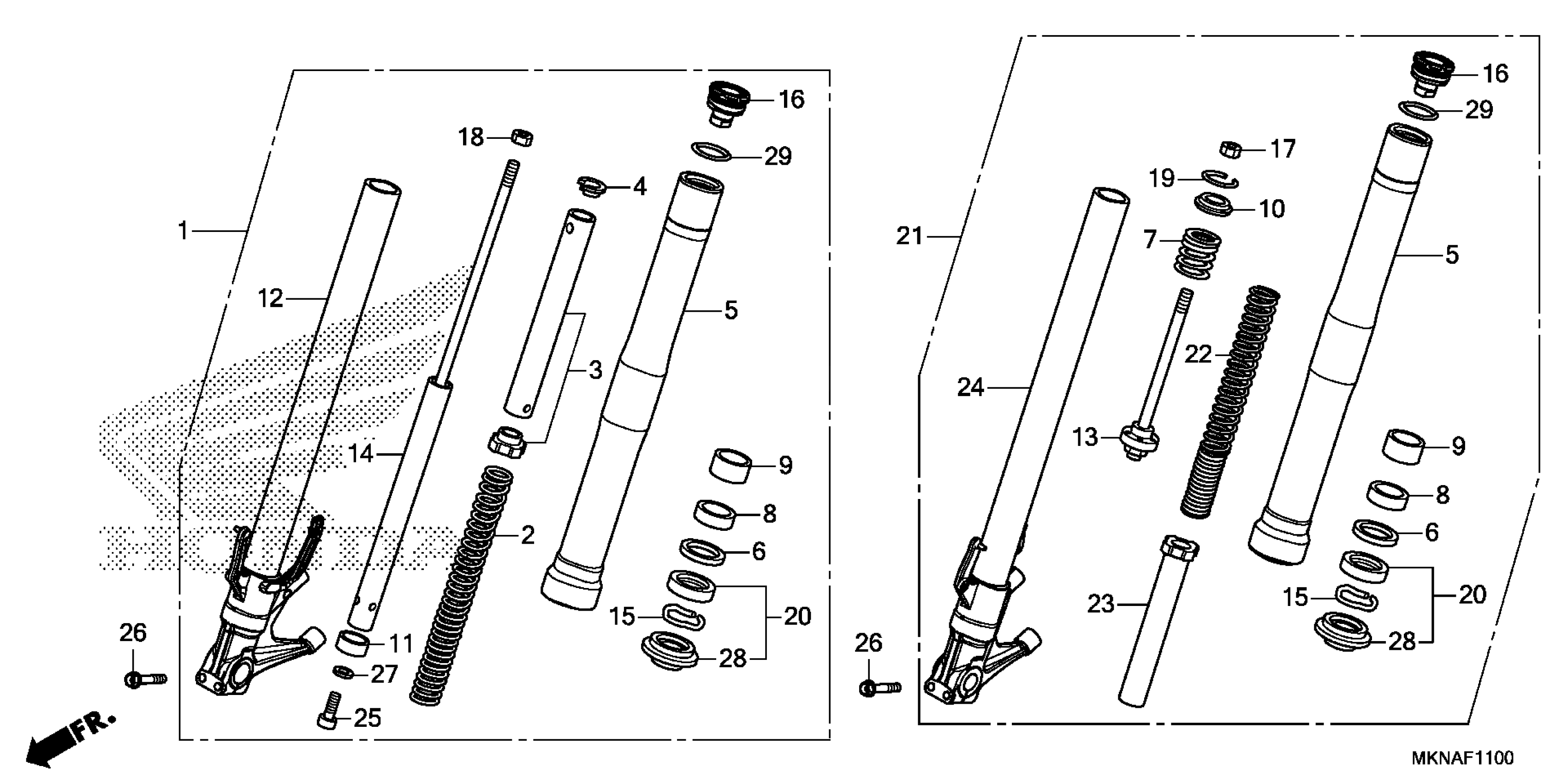

Honda CB650RAAC (20) MOTORCYCLE, THA, VIN# MLHRH025-L5100001 FRONT FORK Diagram
