Description

Price

1

FRAME SET NH303M (MAT AXIS GRAY METALLIC) | Use up to Frame SN L5100384.

50010-MKN-D50ZA

$813.61

1

SET NH303M | Use from Frame SN L5100385.

50010-MKN-D51ZA

$809.62

2

BRACKET B, R. ENGINE HANGER NH303M (MAT AXIS GRAY METALLIC)

50211-MKN-D50ZA

$34.44

3

BRACKET B, L. ENGINE HANGER NH303M (MAT AXIS GRAY METALLIC)

50212-MKN-D50ZA

$32.89

4

COLLAR A, L. ENGINE HANGER

50351-MKN-D50

$10.03

5

COLLAR C, ENGINE HANGER

50352-MKN-D50

$3.15

6

CAP, SWINGARM PIVOT

52161-MKN-D50

$2.28

7

COVER, R. FRAME

64341-MKN-D50

$17.87

8

COVER, L. FRAME

64351-MKN-D50

$17.87

9

BOLT, SOCKET (10X30)

90105-MJE-D00

$1.87

10

BOLT, FLANGE (10X138)

90116-KW3-000

$13.75

11

BOLT, SOCKET (8X22)

90127-KYJ-900

$1.70

12

BOLT, FLANGE (12X40)

90167-GHB-710

$2.18

13

BOLT, FLANGE (12X65)

90167-GHB-760

$2.92

14

NUT, FLANGE (10MM)

94050-10000

$1.59

15

NUT, FLANGE (12MM)

94050-12000

$1.49

16

WASHER, PLAIN (12MM) (SOURCE: VINTAGE PARTS INC.)

94101-12700

$3.81

17

BOLT, FLANGE (12X160)

95801-12160-08

$5.28

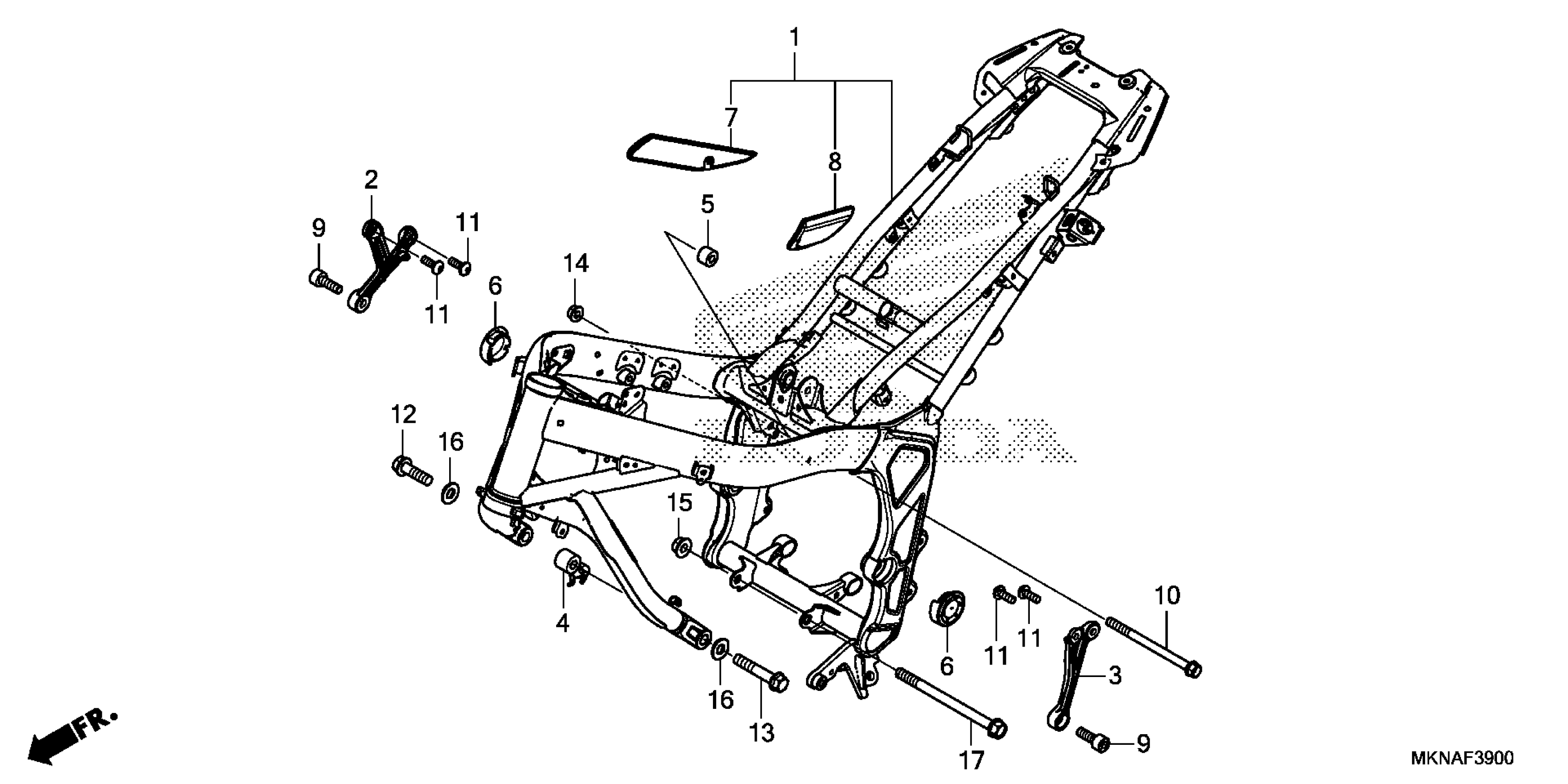

Honda CB650RAAC (20) MOTORCYCLE, THA, VIN# MLHRH025-L5100001 FRAME Diagram

FRAME SET *NH303M* (MAT AXIS GRAY METALLIC) | Use up to Frame SN L5100384.

SET *NH303M* | Use from Frame SN L5100385.

BRACKET B, R. ENGINE HANGER *NH303M* (MAT AXIS GRAY METALLIC)

BRACKET B, L. ENGINE HANGER *NH303M* (MAT AXIS GRAY METALLIC)
