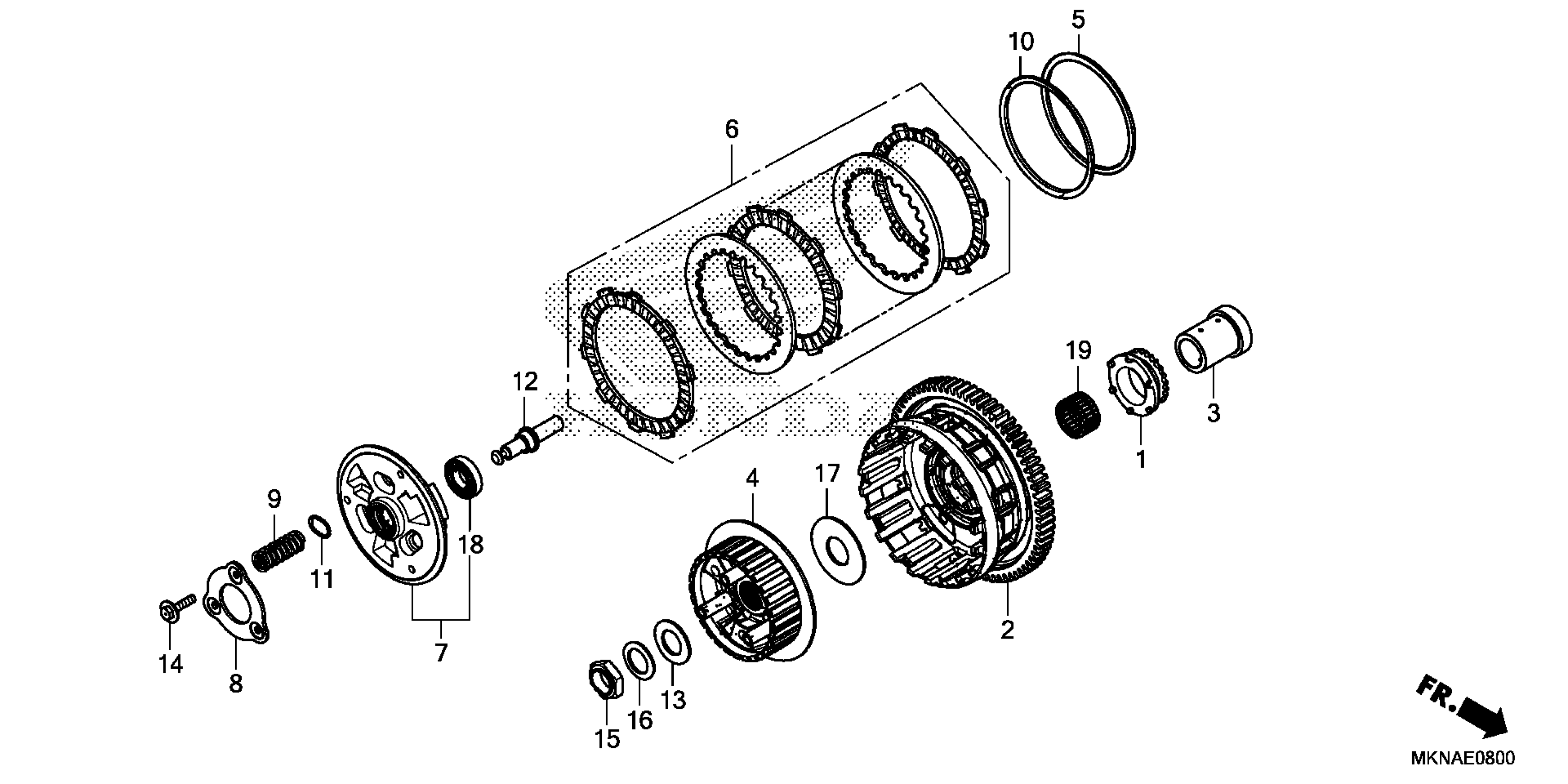

Honda CB650RAAC (20) MOTORCYCLE, THA, VIN# MLHRH025-L5100001 CLUTCH Diagram

SPROCKET, OIL PUMP DRIVE (25T)

15131-MJE-D01

$40.66

CLUTCH OUTER (71T)

22100-MKN-D11

$499.44

GUIDE, CLUTCH (OUTER)

22116-MJE-D00

$18.87

CENTER, CLUTCH

22121-MKN-D11

$40.95

SEAT, JUDDER SPRING

22125-ML7-000

$10.67

DISK SET, CLUTCH

22210-MKN-305

$49.24

PLATE, CLUTCH PRESSURE

22350-MKN-D11

$49.77

PLATE, SETTING

22361-MKN-D11

$2.82

SPRING, CLUTCH

22401-MKN-D11

$2.87

SPRING, JUDDER

22402-MKN-D11

$9.65

SEAT, CLUTCH SPRING

22425-MJP-G51

$11.73

PIN, CLUTCH LIFTER

22847-MJE-D00

$22.49

WASHER, SWINGARM SIDE

52143-KZ3-860

$3.38

BOLT, FLANGE (6X30)

90050-MKN-D11

$1.49

NUT, LOCK (22MM)

90231-MJE-D00

$4.53

WASHER, SPRING (22MM)

90432-MM5-000

$8.52

WASHER (60X25X2)

90459-MM4-000

$10.73

BEARING, RADIAL BALL (6903)

91008-KCY-671

$25.46

BEARING B, NEEDLE (35X41X23.8) (WHITE)

91102-MEE-003

$6.55
