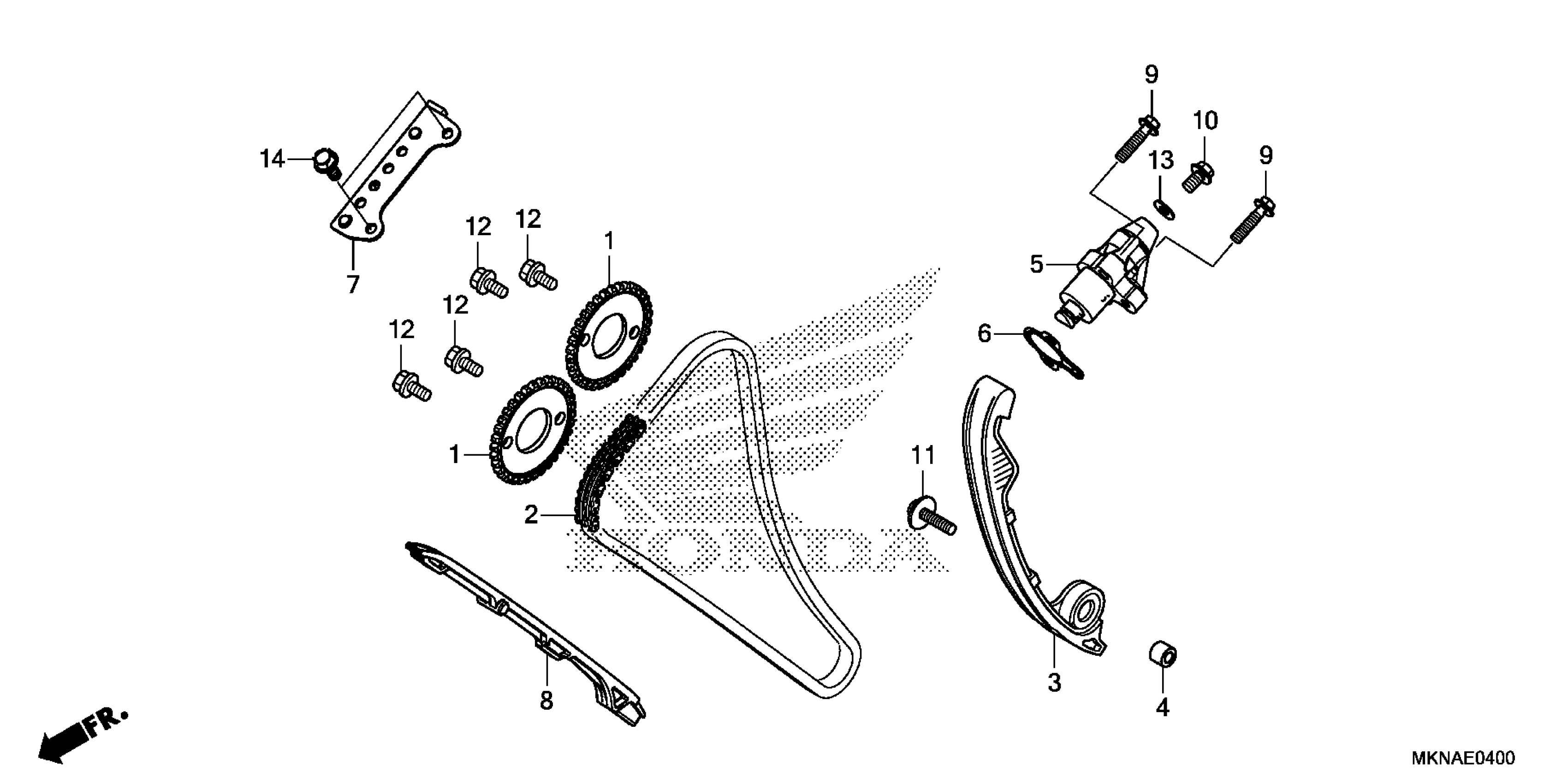

Honda CB650RAAC (20) MOTORCYCLE, THA, VIN# MLHRH025-L5100001 CAM CHAIN@TENSIONER Diagram

SPROCKET, CAM (34T)

14321-MKN-D10

$26.77

CHAIN, CAM (122L) (SCH-0409 SV) (DAIDO)

14401-MKN-D11

$87.56

TENSIONER ASSY., CAM CHAIN

14510-MKN-D10

$96.03

COLLAR, TENSIONER

14517-MKN-D10

$2.69

LIFTER ASSY., TENSIONER (NHK)

14520-MJE-DB1

$213.92

GASKET, TENSIONER HOLE

14523-MJE-D00

$3.44

GUIDE B, CAM CHAIN

14546-MJE-D00

$10.08

GUIDE A, CAM CHAIN

14611-MJE-D00

$6.95

BOLT, FLANGE (6X25)

90003-MJE-D00

$1.49

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

BOLT-WASHER (6X25)

90022-MKN-D10

$1.49

BOLT, FLANGE KNOCK (7X10.5) (Honda Code 1824291)

90082-HA0-000

$1.97

WASHER, SEALING (6MM)

90442-397-000

$2.28

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
