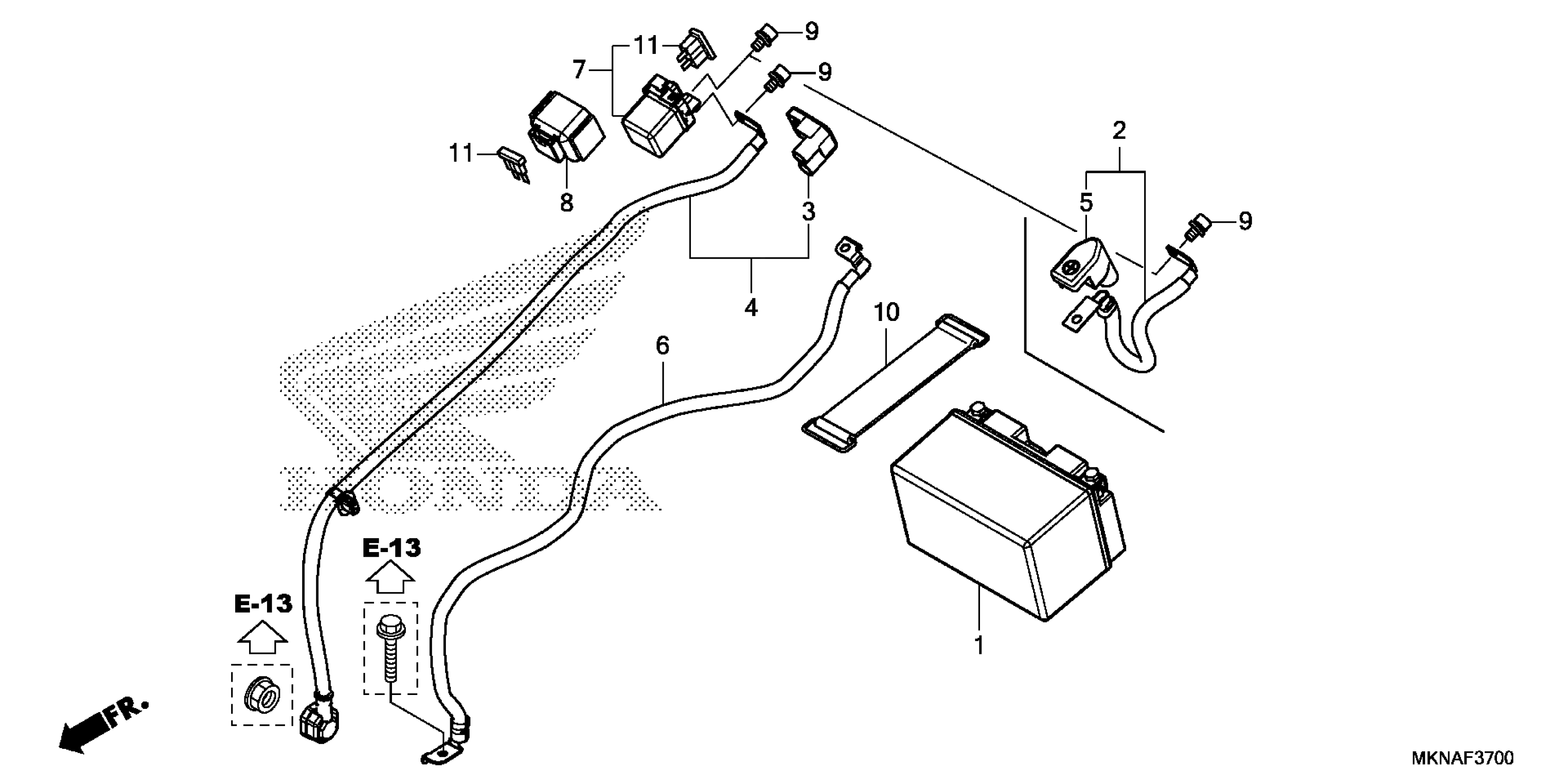

Honda CB650RAAC (20) MOTORCYCLE, THA, VIN# MLHRH025-L5100001 BATTERY Diagram

BATTERY (YTZ10S) (YUASA) (MSDS) This part replaces 31500-MCJ-642AH.

31500-MCJ-643

$172.26

BATTERY (YTZ10S) (YUASA) (MSDS) This part replaces 31500-MGZ-A01.

31500-MCJ-643

$172.26

COVER, STARTER MAGNETIC TERMINAL

32406-MT4-010

$6.39

CABLE, STARTER MOTOR

32410-MKN-D10

$46.56

CABLE, BATTERY GROUND

32601-MKN-D10

$37.64

SWITCH ASSY., STARTER MAGNETIC

35850-MR5-007

$120.16

RUBBER, SHOCK ABSORBER

35856-KBH-000

$12.21

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

BAND B2, BATTERY

95012-13001

$5.28

FUSE, BLADE (30A)

98200-33000

$1.49
