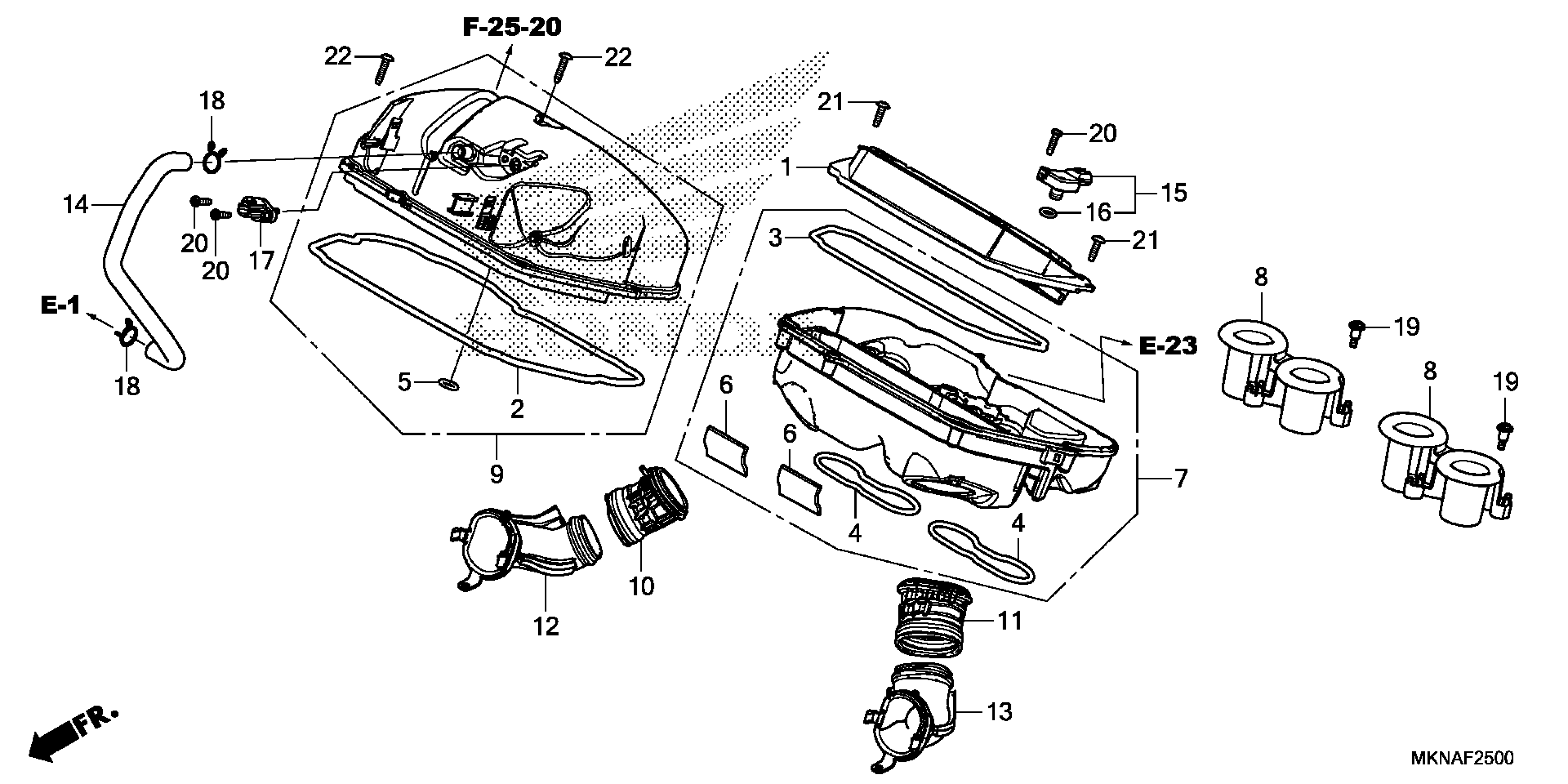

Honda CB650RAAC (20) MOTORCYCLE, THA, VIN# MLHRH025-L5100001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17210-MKN-D50

$19.53

2

SEAL, AIR CLEANER

17213-MKN-D50

$3.84

3

SEAL, AIR CLEANER ELEMENT

17214-MKN-D50

$2.62

4

SEAL, THROTTLE BODY

17215-MJE-D00

$1.49

5

SEAL, CENTER BOSS

17216-MJE-D00

$1.64

6

RUBBER, CUSHION

17217-MJE-D00

$8.07

7

CASE SUB-ASSY., AIR CLEANER

17224-MKN-D50

$22.80

8

FUNNEL, AIR

17225-MJE-DB0

$17.21

9

COVER SUB-ASSY., AIR CLEANER

17235-MKN-D50

$18.75

10

JOINT, R. AIR CLEANER DUCT

17241-MKN-D50

$14.02

11

JOINT, L. AIR CLEANER DUCT

17242-MKN-D50

$14.02

12

DUCT, R. AIR CLEANER

17243-MKN-D50

$28.10

13

DUCT, L. AIR CLEANER

17244-MKN-D50

$28.10

14

TUBE, BREATHER

17265-MKN-D52

$7.49

15

SENSOR ASSY., MAP

37830-RGA-006

$223.90

16

O-RING (Honda Code 8954919)

37875-RGA-006

$2.61

17

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$44.57

18

CLIP, AIR HOSE (16MM)

90646-657-000

$7.32

19

SCREW, PAN (5MM)

91508-MM5-000

$4.08

20

SCREW, TAPPING (5X20)

93901-25420

$1.49

21

SCREW, TAPPING (5X20)

93903-25480

$1.49

22

SCREW, TAPPING (5X25)

93903-25510

$1.49
