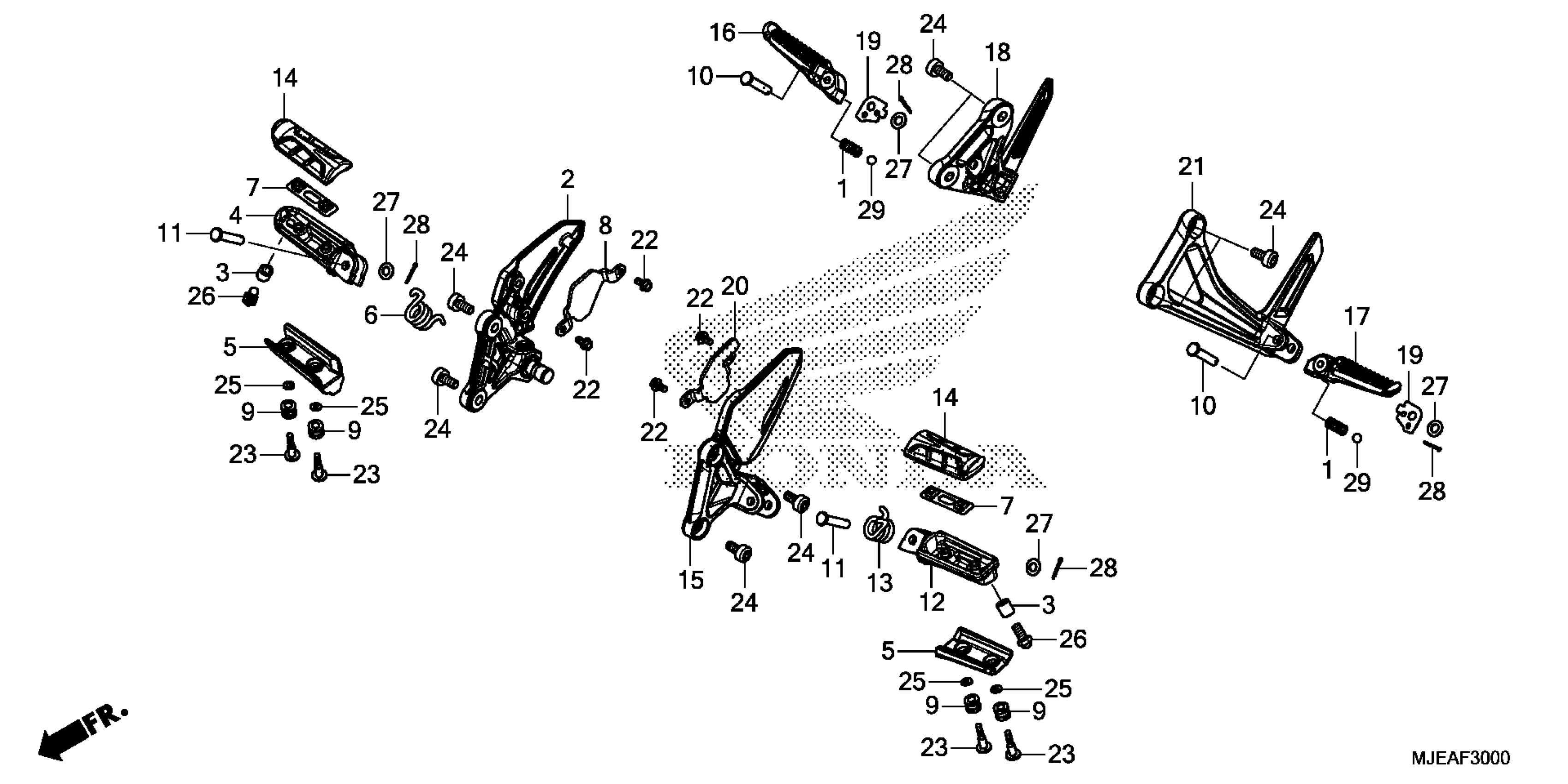

Honda CB650FA2AC (18) CB650FA, THA, VIN# MLHRC755-J5000001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

HOLDER, R. MAIN STEP

50600-MJE-D00

$38.47

3

COLLAR (12.7X13)

50611-MJE-D00

$0.91

4

ARM, R. STEP (COO)

50612-MJE-305

$11.88

5

PLATE, STEP (LOWER)

50615-MGZ-J00

$12.55

6

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.20

7

PLATE, STEP SETTING

50619-MM5-000

$7.56

8

WEIGHT, R. STEP

50621-MJE-D00

$2.43

9

RUBBER, STEP PLATE (LOWER)

50622-MBG-D00

$1.90

10

PIN, STEP BAR

50639-MFL-D20

$2.80

11

PIN, STEP BAR

50639-ML0-010

Unavailable

12

ARM, L. STEP (COO)

50642-MJE-305

$12.53

13

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.20

14

RUBBER, MAIN STEP

50661-MJE-D00

$2.91

15

HOLDER, L. MAIN STEP

50700-MJE-D00

$29.23

16

ARM, R. PILLION STEP (COO)

50711-MGS-305

$59.44

17

ARM, L. PILLION STEP (COO)

50712-MGS-305

$55.68

18

HOLDER, R. PILLION STEP

50715-MJE-D00

$25.46

19

PLATE, PILLION STEP CLICK

50718-MN8-000

$2.29

20

WEIGHT, L. STEP

50721-MJE-D00

$2.28

21

HOLDER, L. PILLION STEP

50725-MJE-D00

$25.54

22

BOLT, FLANGE (5X10)

90002-892-000

$1.31

23

BOLT, STEP PLATE (LOWER)

90115-MBG-D00

$4.83

24

BOLT, SOCKET (8X18)

90116-MJE-D00

$2.79

25

WASHER, PLAIN (5MM)

90483-MER-D00

$0.31

26

BOLT, CAP (8X95)

92501-08022-0A

$2.78

27

WASHER, PLAIN (8MM)

94102-08000

$0.87

28

PIN, COTTER (2.0X15)

94201-20150

$0.96

29

BALL, STEEL (#8) (1/4)

96211-08000

$1.15
