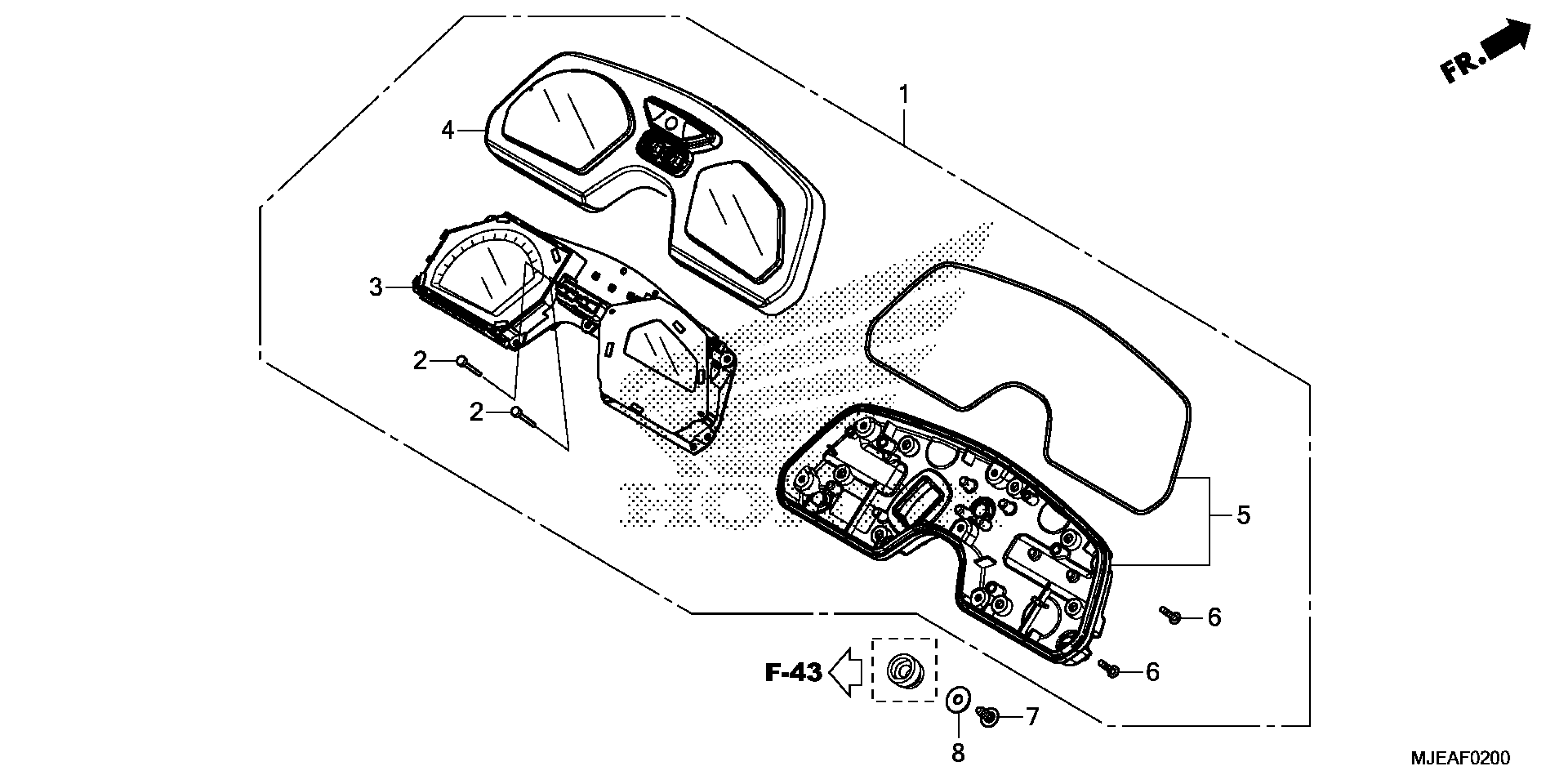

Honda CB650FA2AC (18) CB650FA, THA, VIN# MLHRC755-J5000001 SPEEDOMETER Diagram

#

Description

Price

1

METER, COMBINATION This part replaces 37100-MJE-L12.

37100-MJE-L13

$366.37

1

METER, COMBINATION This part replaces 37100-MJE-316.

37100-MJE-326

$359.38

2

KEY, TOP

37104-MJE-D01

$0.66

3

METER, LCD (MPH/KPH)

37130-MJE-L11

$198.56

4

CASE ASSY. (UPPER) (COO) This part replaces 37610-MJE-D02.

37610-MJE-315

$75.10

4

CASE ASSY. (UPPER) (COO)

37610-MJE-315

$75.10

5

CASE ASSY. (LOWER) This part replaces 37620-MJE-D01.

37620-MJE-D02

$54.90

6

SCREW, TAPPING (3X16)

93903-22420

$0.91

7

SCREW, TAPPING (5X14) (PO)

93913-25380

$0.84

8

WASHER, PLAIN (5MM)

94103-05700

$0.87
