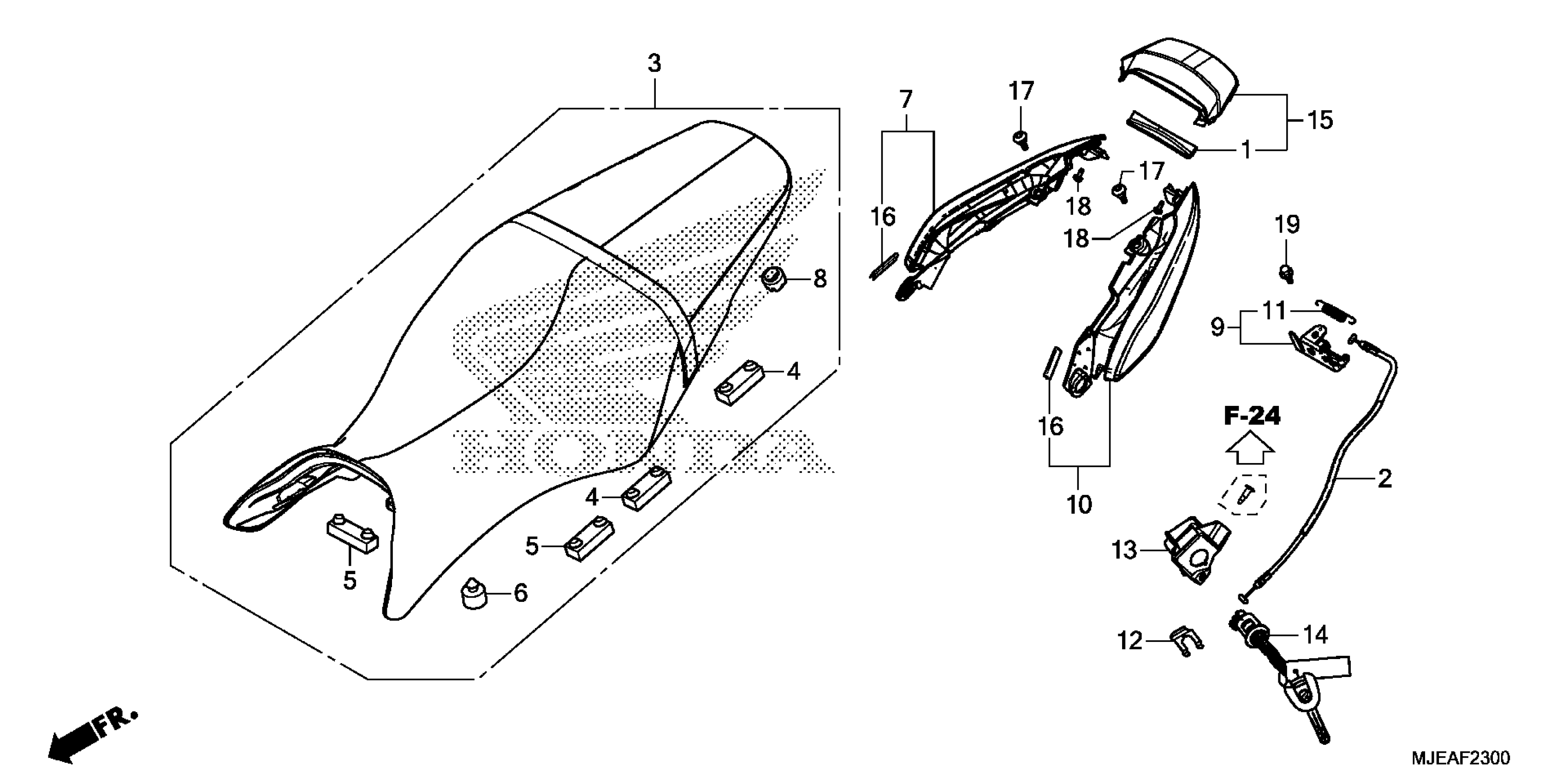

Honda CB650FA2AC (18) CB650FA, THA, VIN# MLHRC755-J5000001 SEAT@REAR COWL Diagram

#

Description
Price

1

RUBBER SPONGE, RR. FENDER

64465-MJE-D00

$2.35

2

CABLE, SEAT LOCK

77156-MJE-D01

$8.13

3

SEAT ASSY., DOUBLE (TYPE1) | Use up to Frame SN J5000142. This part replaces 77200-MJE-DB0ZA.

77200-MJE-D02ZA

$239.63

3

SEAT ASSY., DOUBLE (TYPE1) | Use from Frame SN J5000143.

77200-MJE-D02ZA

$239.63

4

RUBBER B, SEAT SETTING

77205-286-000

$5.04

5

RUBBER, SEAT SETTING

77205-MFE-670

$5.65

6

RUBBER, SEAT CUSHION

77206-MJE-DB0

$2.93

7

COWL ASSY., R. RR.

77211-MJE-D00

$12.33

8

RUBBER B, SEAT SETTING

77214-KPH-900

$1.18

9

LOCK, SEAT

77220-MJE-D00

$23.14

10

COWL ASSY., L. RR.

77221-MJE-D00

$12.33

11

SPRING, SEAT LOCK

77234-GN2-000

$3.74

12

PLATE, LOCK KEY SETTING

77235-MJE-D00

$2.46

13

PROTECTOR, SEAT LOCK KEY

77237-MJE-D00

$19.29

14

KEY, SEAT LOCK This part replaces 77239-MJE-D03.

77239-MJE-D04

$132.35

15

COWL ASSY., RR. CENTER (TYPE1) (WL)

77250-MJE-D00ZA

$39.21

16

FILM, PROTECTOR

83512-MJE-D00

$1.04

17

SCREW, SPECIAL (6X14)

90115-MGZ-J00

$0.99

18

SCREW, TAPPING (4X12)

93903-24380

Unavailable

19

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84
