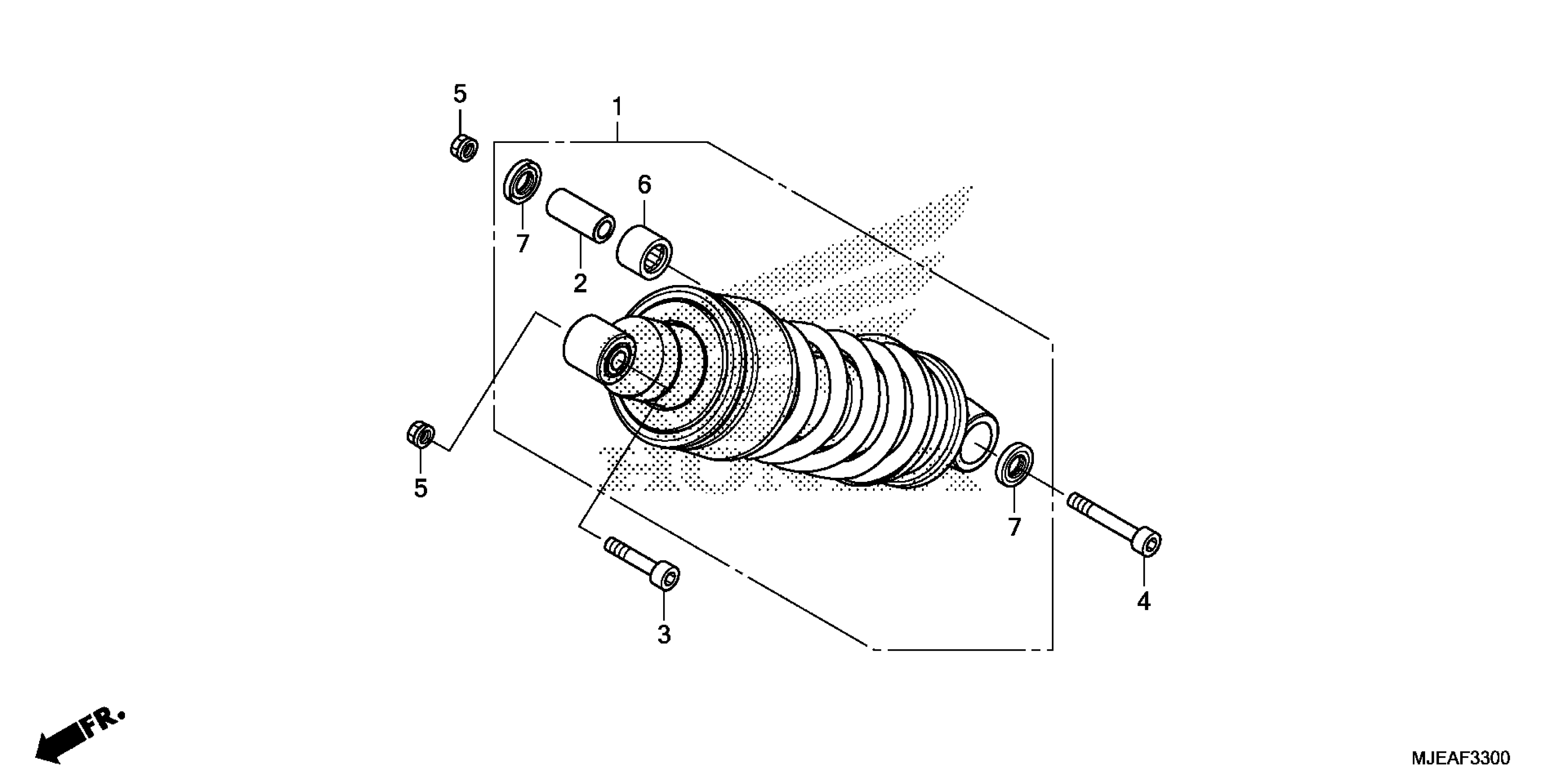

Honda CB650FA2AC (18) CB650FA, THA, VIN# MLHRC755-J5000001 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

CUSHION ASSY., RR. (SHOWA)

52400-MJE-DB1

$724.81

2

COLLAR, CUSHION CONNECTING ROD

52463-MGZ-J00

$4.78

3

BOLT, SOCKET (10X51)

90107-MJE-D00

$3.25

4

BOLT, SOCKET (10X70)

90108-MJE-D00

$4.09

5

NUT, U FLANGE (10MM)

90304-MJE-D01

$1.99

6

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.84

7

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.91
