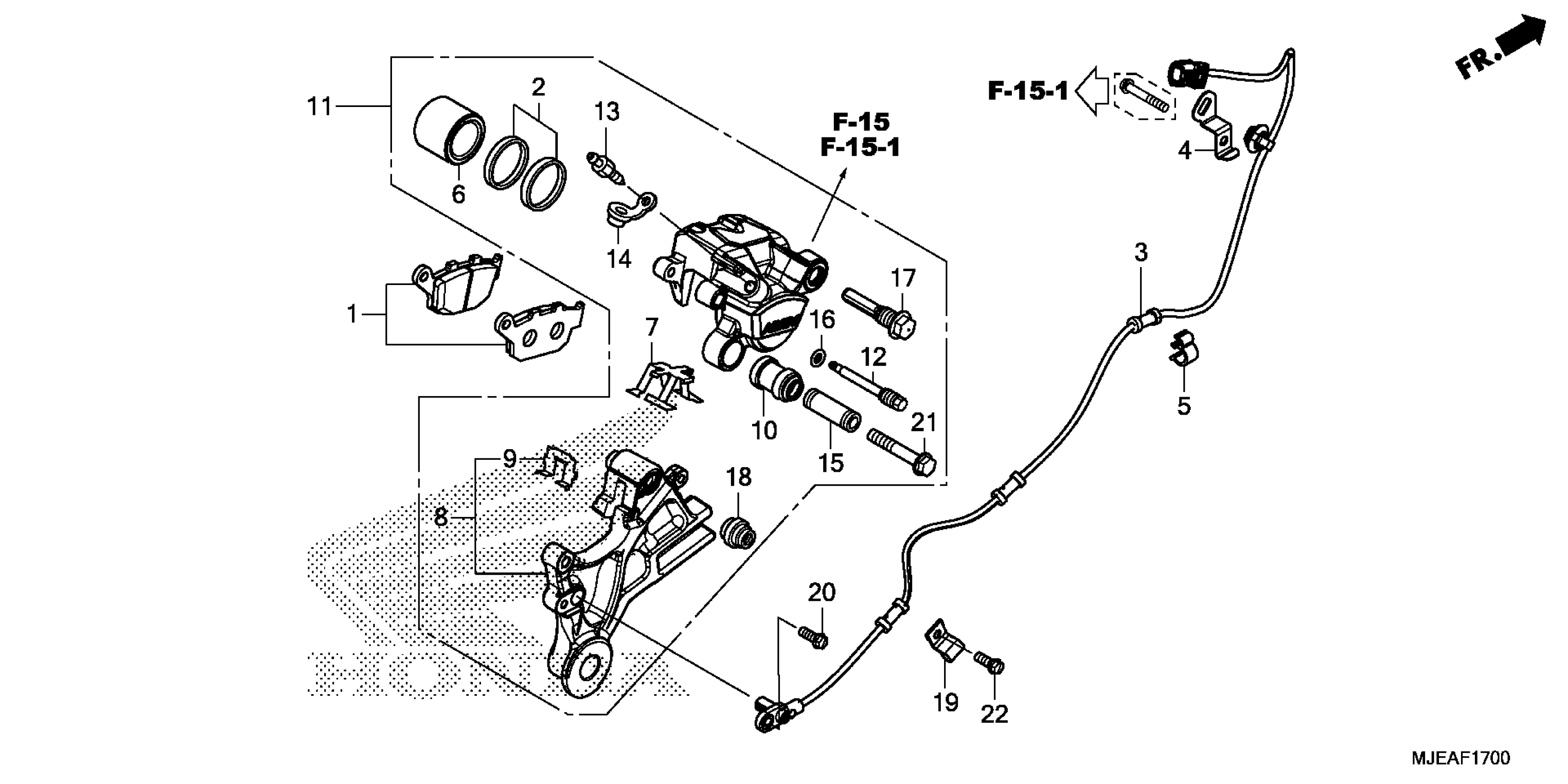

Honda CB650FA2AC (18) CB650FA, THA, VIN# MLHRC755-J5000001 REAR BRAKE CALIPER Diagram

PAD SET, RR. This part replaces 06435-MGZ-J01.

06435-MGZ-J02

$27.89

PAD SET, RR.

06435-MGZ-J02

$27.89

SEAL SET, PISTON

06451-443-405

$12.15

SENSOR, RR. WHEEL SPEED

38510-MJE-DB1

$27.13

STAY, RR. SENSOR WIRE

38515-MJE-D10

$6.37

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.51

PISTON

43107-KT7-761

$34.77

SPRING, PAD

43108-MBB-006

$5.90

BRACKET, RR. BRAKE (NISSIN)

43110-MJE-DB1

$52.90

RETAINER

43112-KT7-761

$8.68

BOOT, SLEEVE

43132-KT7-761

$7.85

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MJE-DB1

$144.72

PIN, HANGER

43215-KZ4-J41

$5.02

SCREW, BLEEDER (NISSIN)

43352-568-003

$9.83

CAP, BLEEDER

43353-461-771

$4.83

SLEEVE

45111-MA3-006

$12.28

RING, STOPPER

45111-MAJ-G41

$3.63

BOLT, PIN

45131-MN9-006

$14.66

BOOT B

45133-MA3-006

$5.21

CLAMP A, SENSOR CORD

45157-MEJ-J00

$3.26

BOLT, FLANGE (6X16)

90107-MEJ-D00

$0.44

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.66
