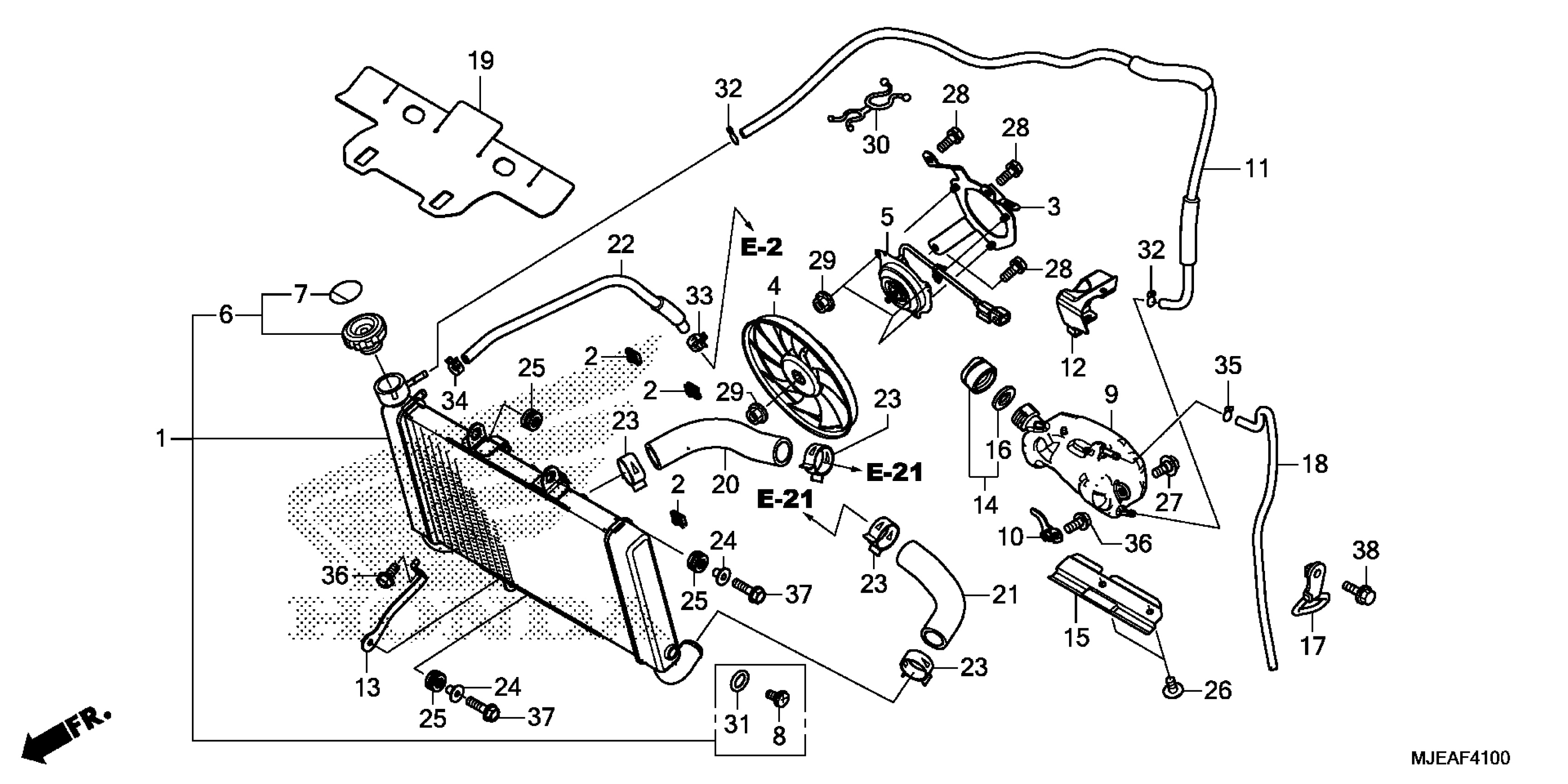

Honda CB650FA2AC (18) CB650FA, THA, VIN# MLHRC755-J5000001 RADIATOR Diagram

#

Description
Price

1

RADIATOR (COO) (TOYO)

19010-MJE-306

$206.87

2

NUT, SETTING (6MM)

19014-KEA-003

$3.10

3

SHROUD

19015-MJE-D01

$21.07

4

FAN, COOLING

19020-MFG-D01

$38.72

5

MOTOR ASSY., FAN

19030-MJE-D01

$167.08

6

CAP, RADIATOR

19037-GEE-710

$30.28

7

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

8

PETCOCK, DRAIN

19071-MEC-003

$3.58

9

TANK, RADIATOR RESERVE

19101-MJE-D00

$7.80

10

STAY, RESERVE TANK

19102-MJE-D00

$3.03

11

TUBE, RESERVE TANK

19103-MJE-D00

$13.39

12

COVER, RESERVE TANK

19104-MJE-D00

$5.90

13

STAY, RADIATOR (LOWER)

19105-MJE-D00

$8.46

14

CAP ASSY., RESERVE TANK

19106-GET-000

$6.90

15

GUARD, RESERVE TANK HEAT

19106-MJE-DB0

$11.28

16

GASKET, RESERVE TANK

19107-GET-000

$3.74

17

STAY, TUBE CLAMP

19107-MJE-D40

$7.61

18

TUBE, RESERVE TANK OVERFLOW

19108-MJE-D00

$6.49

19

GUARD, RADIATOR HEAT

19126-MJE-D00

$23.30

20

HOSE A, RADIATOR

19501-MJE-D00

$13.90

21

HOSE B, RADIATOR

19502-MJE-D00

$12.90

22

TUBE, WATER BREATHER

19510-MJE-D00

$12.92

23

CLIP, WATER HOSE

19511-R9G-004

$7.10

24

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$4.13

25

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

26

SCREW, PAN (6X12)

90106-KRG-000

$2.18

27

BOLT, FLANGE (6MM)

90111-162-000

$2.89

28

BOLT-WASHER (6X12)

90120-GHB-601

$1.98

29

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

30

CLIP, PURSE LOCK

90647-657-671

$5.67

31

O-RING (9.8X1.9)

91353-MEC-003

$3.42

32

CLIP, TUBE (B10)

95002-02100

$1.90

33

CLAMP, TUBE (D10.5)

95002-41050-08

$2.34

34

CLAMP, TUBE (D12.5)

95002-41250-08

$2.34

35

CLIP, TUBE (C9)

95002-50000

$1.49

36

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

37

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

38

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
